Introduction

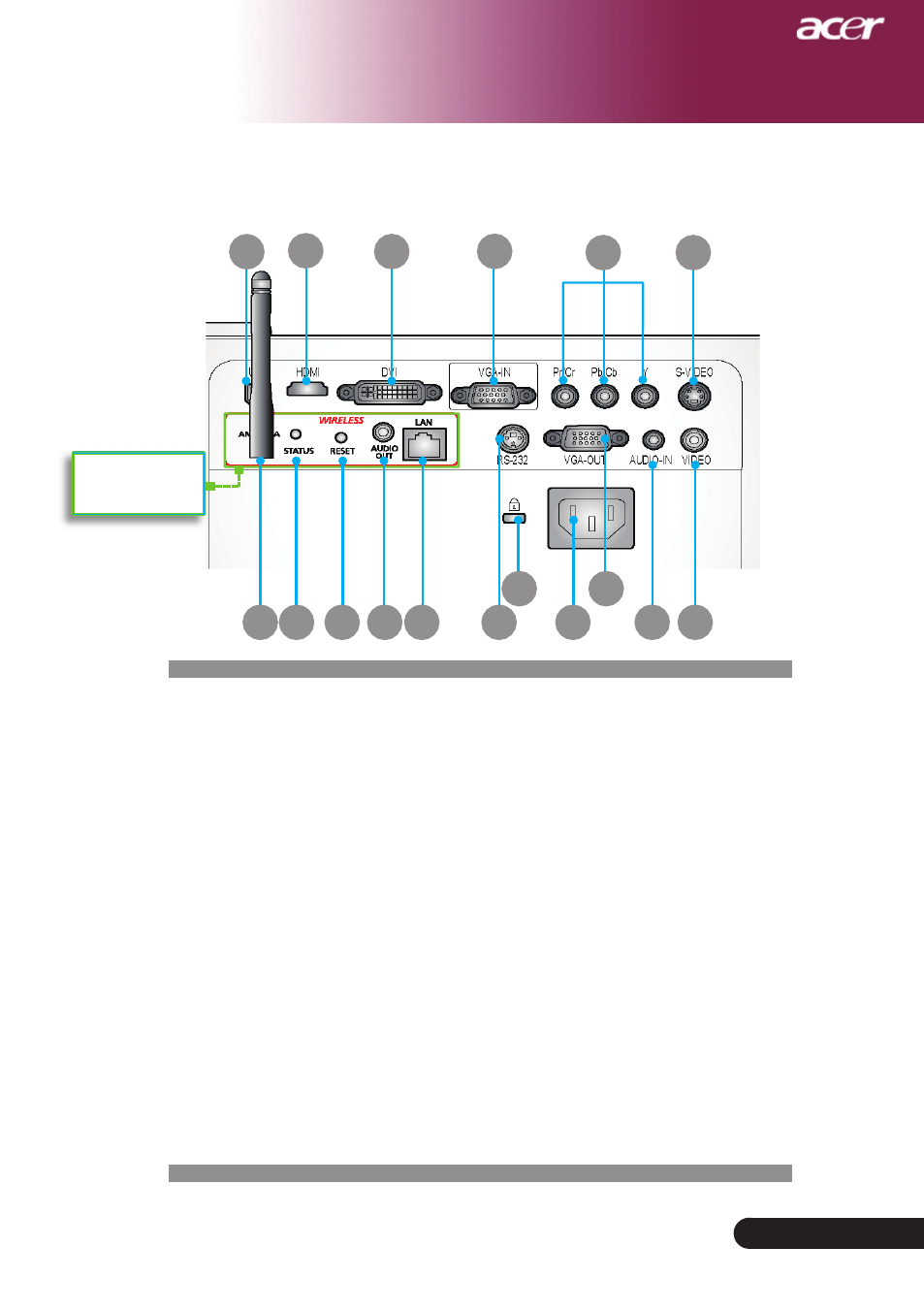

Connection Ports

1. USB Connector

2. HDMI Connector

3. DVI Input Connector

4. VGA Input Connector (PC Analog Signal)

5. Component Video Input Connector

6. S-Video Input Connector

7. RS232 Connector

8. Kensington

TM

Lock Port

9. Power Socket

10. VGA Output Connector (Monitor Loop-through Output

Connector)

11. Audio Input Connector

12. Composite Video Input Connectort

Below items are for PD726W/PD727W only:

13. Lan (RJ45 Port for 10/100M Ethernet)

14. Audio Output Connector

15. Reset Button

16. Status Indicator

17. Antenna

For PD726W/

PD727W only
