PAM8404
Document number: DSxxxxx Rev. 1 - 1
3 of 18
www.diodes.com
November 2012
© Diodes Incorporated
PAM8404
A Product Line of
Diodes Incorporated

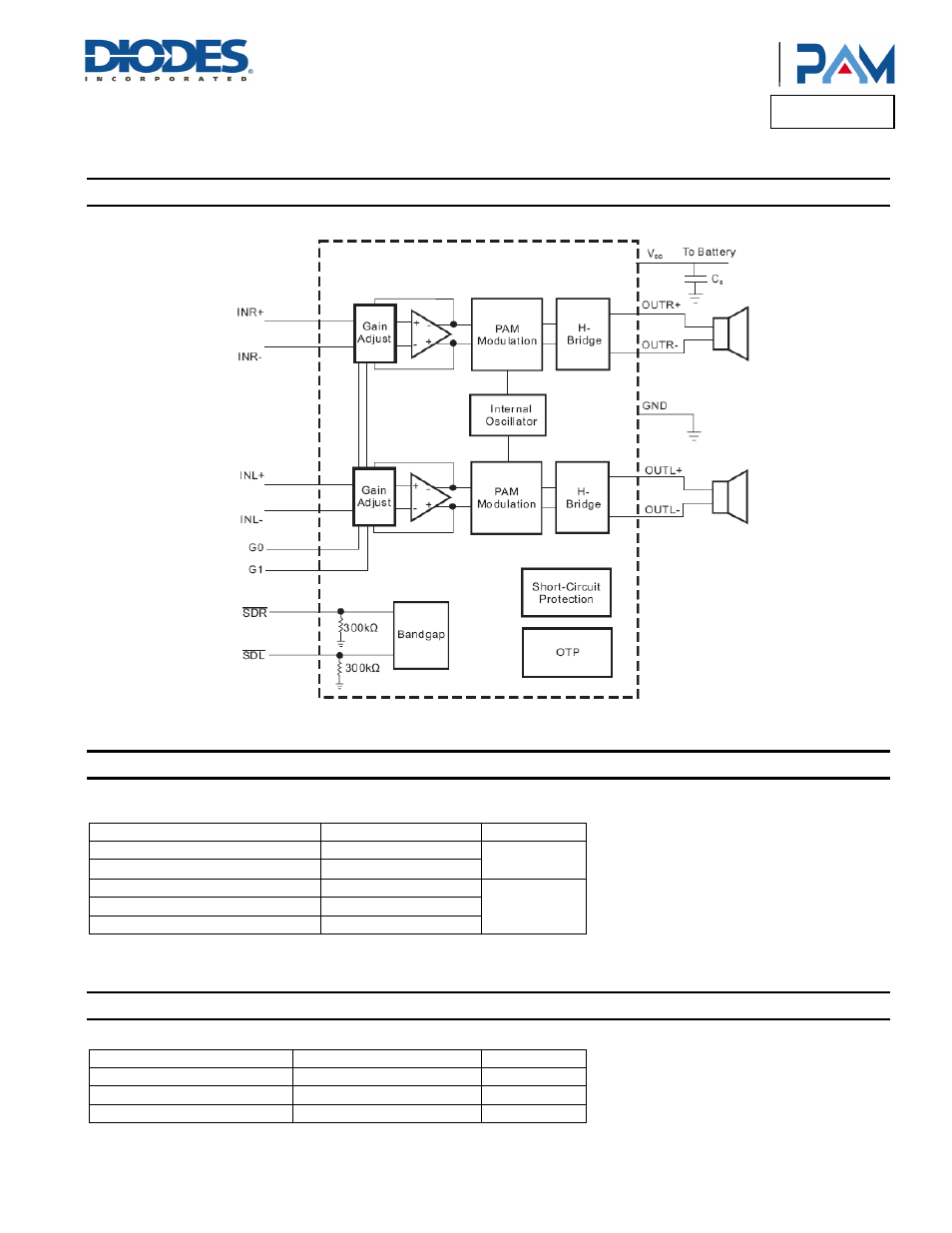

Functional Block Diagram
Absolute Maximum Ratings
(@T
A
= +25°C, unless otherwise specified.)
These are stress ratings only and functional operation is not implied. Exposure to absolute maximum ratings for prolonged time periods may
affect device reliability. All voltages are with respect to ground.
Parameter Rating Unit
Supply Voltage 6.0
V
Input Voltage -0.3 to V
DD
+0.3
Maximum Junction Temperature 150
°C Storage Temperature -65 to +150
Soldering Temperature 250, 10sec
Recommended Operating Conditions
(@T
A
= +25°C, unless otherwise specified.)
Parameter Rating Unit
Supply Voltage Range 2.5 to 5.5 V
Operation Temperature Range -40 to +85 °C
Junction Temperature Range -40 to +125 °C
