PAM8404

Document number: DSxxxxx Rev. 1 - 1

1 of 18

www.diodes.com

November 2012

© Diodes Incorporated

PAM8404

A Product Line of

Diodes Incorporated

3W/CH FILTERLESS STEREO CLASS-D AUDIO AMPLIFIER

Description

The PAM8404 is a 3W high efficiency filterless Class-D audio
amplifier in 4mmX4mm and 2mmX2mm wafer chip scale (WCSP)
packages that requires few external components.

Features like 89% efficiency, -63dB PSRR, improved RF-rectification
immunity, and very small PCB area make the PAM8404 Class-D
amplifier ideal for cellular handset and PDA applications.

In cellular handsets, the earpiece, speaker phone, and melody ringer
can each be driven by the PAM8404. The PAM8404 allows
independent gain by summing signals from seperate sources, and
has as low as 43µV noise floor.

PAM8404 is available in QFN 4mmx4mm and WCSP 2mmx2mm
packages.

Features

3W Output at 10% THD with a 4Ω Load and 5V Supply

Supply Voltage from 2.5V to 5.5V

Efficiency Up to 89%

Superior Low Noise without Input

Few External Components to Save the Space and Cost

Short Circuit Protection

 Thermal

Shutdown

Space Saving Packages :

2mm X 2mmWCSP

4mm X 4mm Thin QFN

Pb-Free Packages

Applications

LCD Monitor / TV Projector

 Notebook

Computers

 Portable

Speakers

Portable DVD Players, Game Machines

Cellular Phones/Speaker Phones

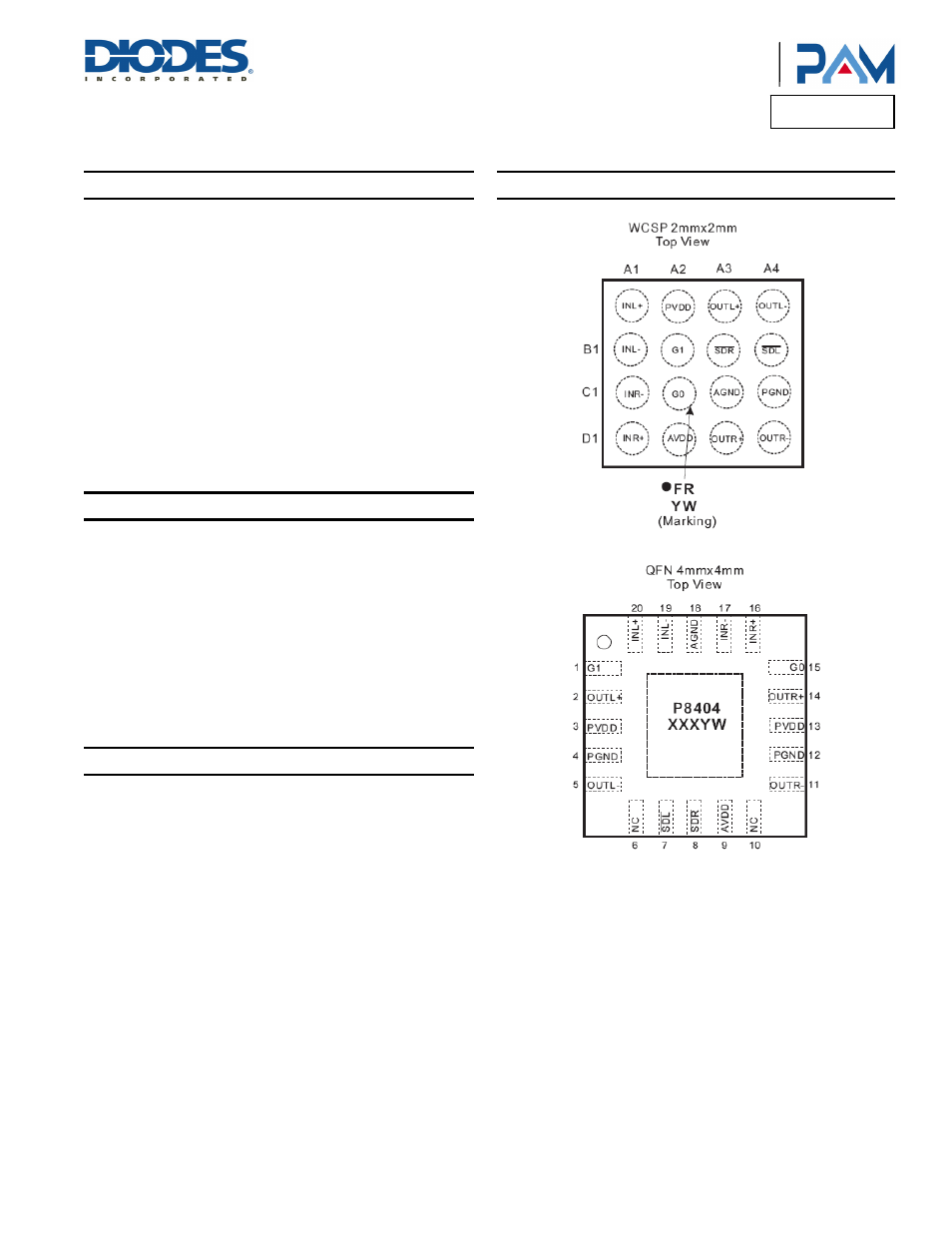

Pin Assignments
