PAM3110
Document number: DSxxxxx Rev. 2 - 2
1 of 13
www.diodes.com
September 2013
© Diodes Incorporated
PAM3110
A Product Line of
Diodes Incorporated
1.5A LOW DROPOUT VOLTAGE CMOS REGULATOR
Description
The PAM3110 is a 1.5A CMOS LDO regulator that features a low
quiescent current and low dropout voltages, as well as over
temperature shutdown. The fixed output voltage of the PAM3110 is
set at the factory and trimmed to ±1.5%. The PAM3110 is stable with
a ceramic output capacitor of 4.7µF or higher.
This family of regulators can provide either a stand-alone power
supply solution or act as a post regulator for switch mode power
supplies. They are particularly suitable for applications requiring low
input and output voltages.
PAM3110 is available in SOT-223, TO-252 and TO-263-2L package.
Features
 DSP, FPGA and Microprocessor Power Supplies
 Output Voltages:1.2V, 1.5V,1.8V, 2.5V 3.3V and 5.0V
 Stable with a Ceramic Output Capacitor
 Dropout Voltage: [email protected]
 Low Quiescent Current
 Over Temperature Shutdown
 Short Circuit Protection
 Low Temperature Coefficient
 Pb-Free Packages
Applications
 DSP, FPGA and Microprocessor Power Supplies
 SATA Power Supply
 LCD TV/Monitors
 Wireless Devices
 Communication Devices
 Portable Electronics
 Post Regulator for SMS

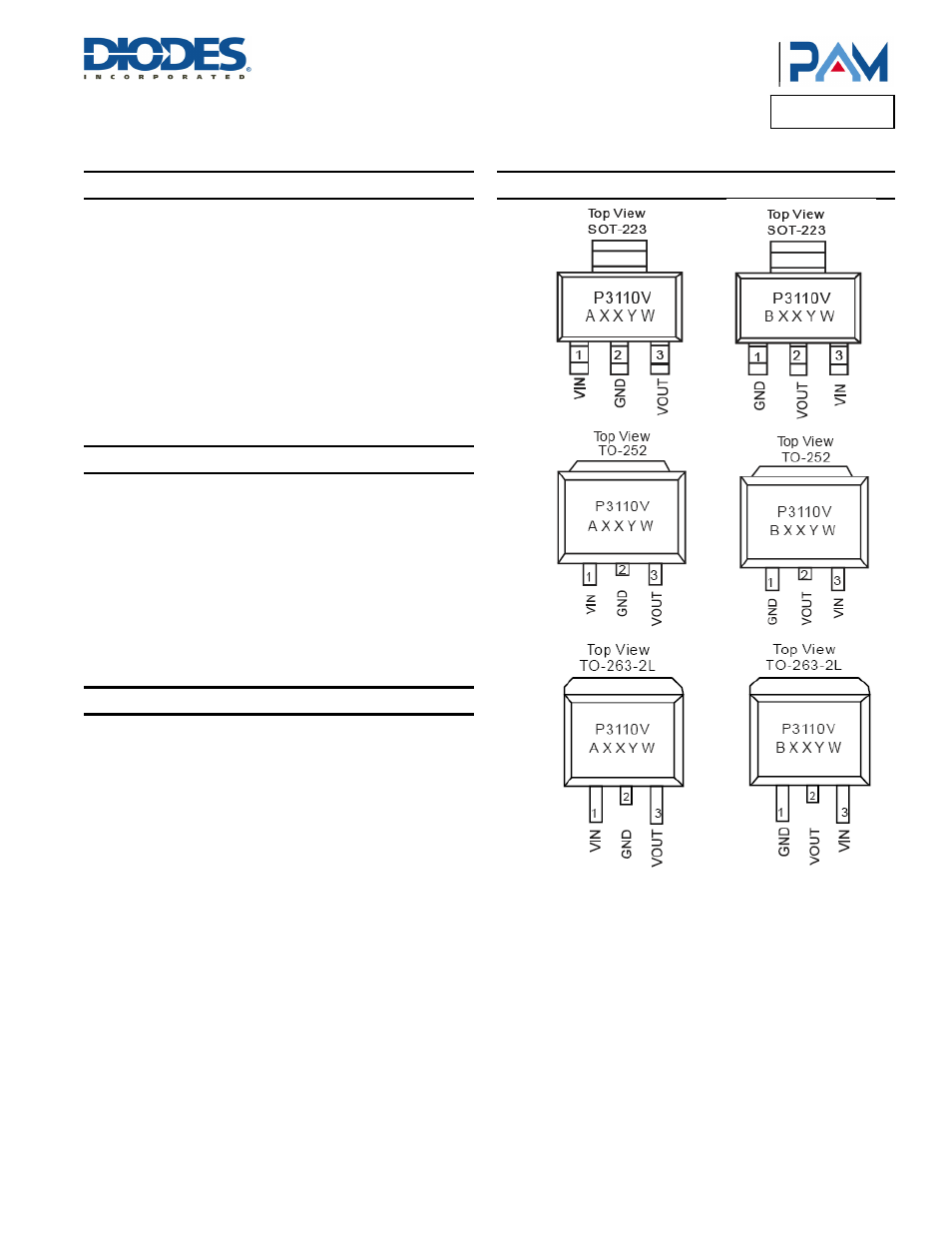

Pin Assignments
