NIS5132
NEW PROD
UC
T
3.6A 12V RESETTABLE ELECTRONIC FUSE
Description
The NIS5132 is a self-protected resettable electronic fuse designed
for consumer applications such as hard disk drive to industrial
application to enhance system reliability against catastrophic and
shutdown failures.
To support a wide range of demanding applications, the design has
been optimized to operate over the supply range of 9.0V to 18V. For
robustness and protections, the device integrates a low Rdson
NMOS buffer power device along with an under voltage lockout,
overvoltage clamp, a current limit, a dv/dt control and a thermal
shutdown circuits. The overvoltage circuit limits the output voltage
without shutting the device down to allow the load to continue
operating during over voltage. Thermal shutdown can be either
latching type (NIS5132MN1) or auto-retry type (NIS5132MN2).
Features
• 9.0 to 18V operating input voltage
• Integrated NMOS power device with R
DS(ON)
of 30mΩ typical
• Internal current limit - no external current sense resistor in load
path
• Under voltage lockout
• Over voltage clamp (NIS5132MN1 and NIS5132MN2)
• Thermal shutdown
• -40°C to +150°C operating junction temperature
•
ESD ratings : HBM ＞ 1500V; MM 200V
• Small low profile U-DFN3030-10 packages
• Lead-Free Finish; RoHS Compliant (Notes 1 & 2)
• Halogen and Antimony Free. “Green” Device (Note 3)

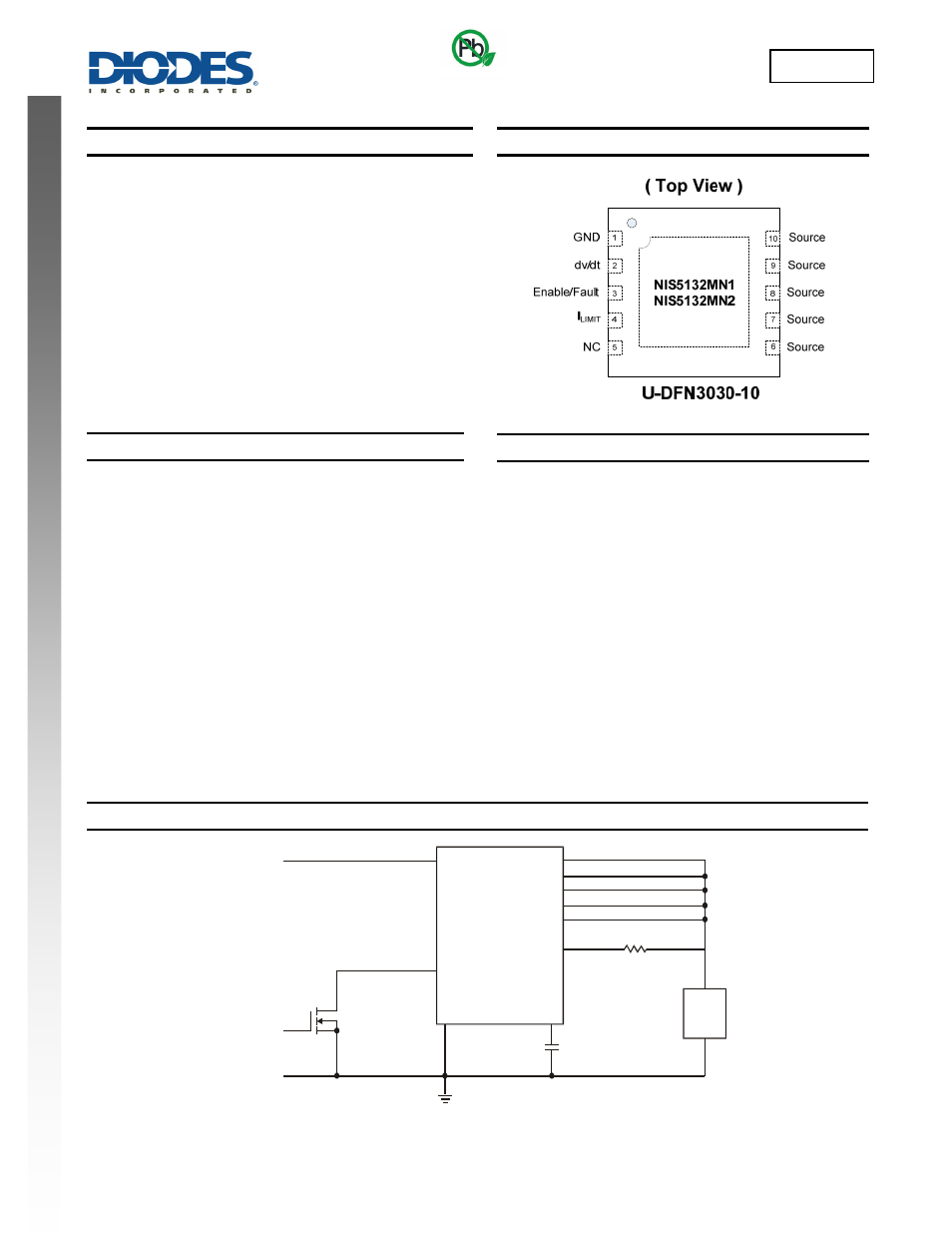

Pin Assignments
Applications
• Hard drives
• Mother board power management
• Printer load power management
Notes: 1. EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. All applicable RoHS exemptions applied.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free,
"Green” and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl)
and <1000ppm antimony compounds.
Typical Application Circuits
Figure 1 Application Circuit with Direct Current Sensing
+12V
ENABLE
GND
GND dv/dt LOAD
ENABLE
V
DD
SOURCE
I
LIMIT
10
9
8
7
6
4
3
11
1 2
NIS5132
R
S
Green
