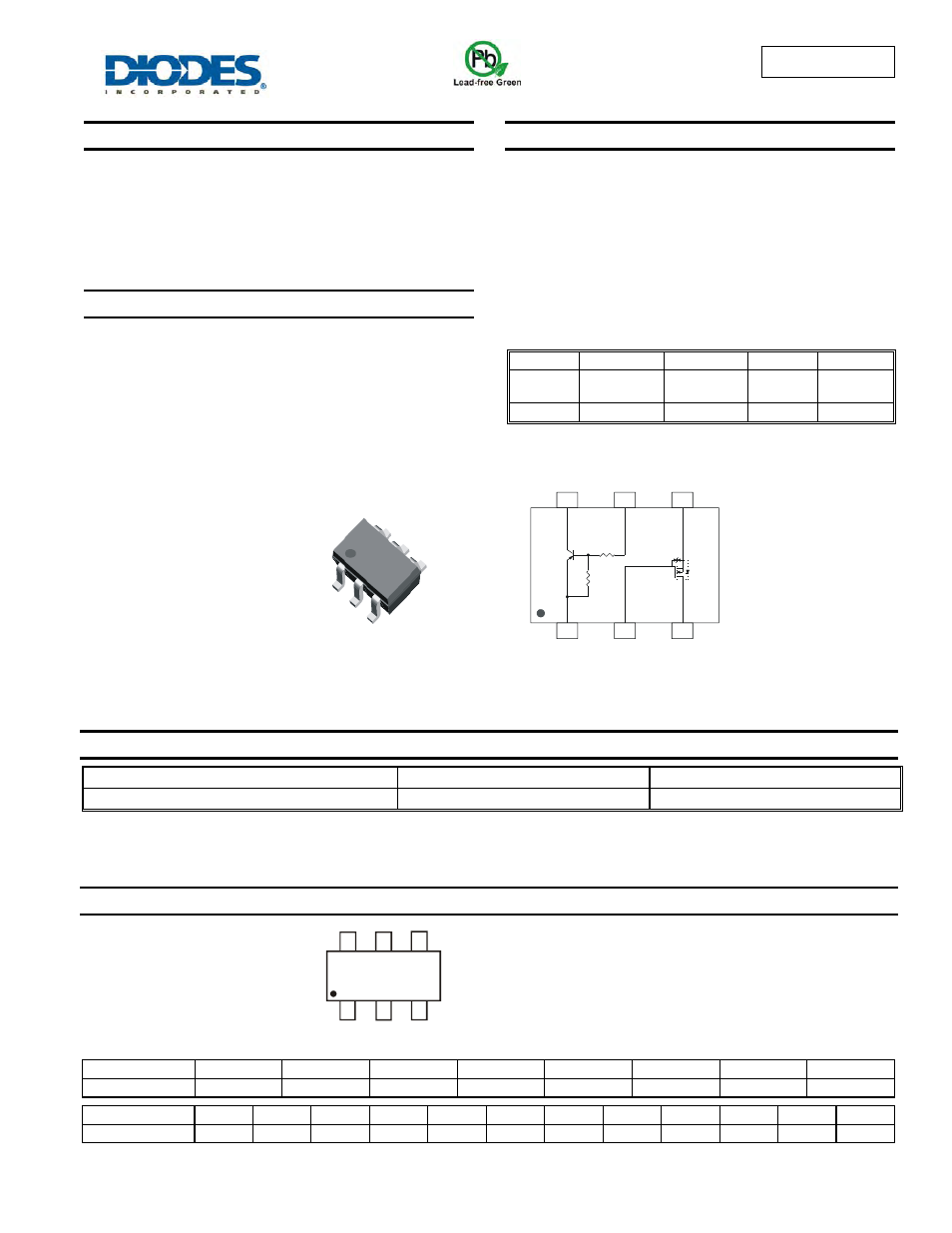

LMN400E01
400mA LOAD SWITCH FEATURING PRE-BIASED
PNP TRANSISTOR AND ESD PROTECTED N-MOSFET
Features
•
Voltage Controlled Small Signal Switch
•
N-MOSFET with ESD Gate Protection
•
Ideally Suited for Automated Assembly Processes
•
Lead Free By Design/ROHS Compliant (Note 1)
•
"Green" Device (Note 2)
Description
LMN400E01 is best suited for applications where the load needs to
be turned on and off using control circuits like micro-controllers,
comparators etc. particularly at a point of load. It features a discrete
pass transistor with stable V
CE(SAT)
which does not depend on input
voltage and can support continuous maximum current of 400 mA. It
also contains an ESD protected discrete N-MOSFET that can be used
as control. The component can be used as a part of a circuit or as a
stand alone discrete device.
Mechanical Data
• Case:
SOT363
•
Case Material: Molded Plastic. "Green Molding" Compound. UL
Flammability Classification Rating 94V-0
•
Moisture Sensitivity: Level 1 per J-STD-020C
•
Terminal Connections: See Diagram
•
Terminals: Finish - Matte Tin annealed over Alloy 42 leadframe.
Solderable per MIL- STD -202, Method 208
•
Marking Information: See Page 8
•
Ordering Information: See Page 8
•
Weight: 0.006 grams (approximate)
•
Reference Device Type
R1(NOM)
R2(NOM)
Figure
Q1
PNP
Transistor
10K
220
2
Q2 N-MOSFET
⎯
⎯
2
Ordering Information
(Note 3)
Device
Packaging
Shipping
LMN400E01-7
SOT363
3000/Tape & Reel
Notes:
1. No purposefully added lead.
2. Diodes Inc.'s "Green" policy can be found on our w
Marking Information
Date Code Key
Year
2006
2007
2008
2009
2010
2011
2012
2013
Code
T
U
V
W
X
Y
Z
A
Month
Jan
Feb
Mar
Apr
May
Jun
Jul
Aug
Sep
Oct
Nov
Dec
Code
1
2
3
4
5
6
7
8
9
O
N
D
SOT363
Top View
Internal Schematic
Top View
1
2
3
4
5
6
D_Q2
R2
220
S
B_Q1
1
2
3
4
5
6
E
NMOS
G
R1
10K
B
G_Q2
Q1
PNP
Q2
C_Q1
S_Q2
D
C
E_Q1
PM5 = Product Type Marking Code,
YM = Date Code Marking
Y = Year, e.g., Y = 2011
M = Month, e.g., 9 = September
PM5
YM
