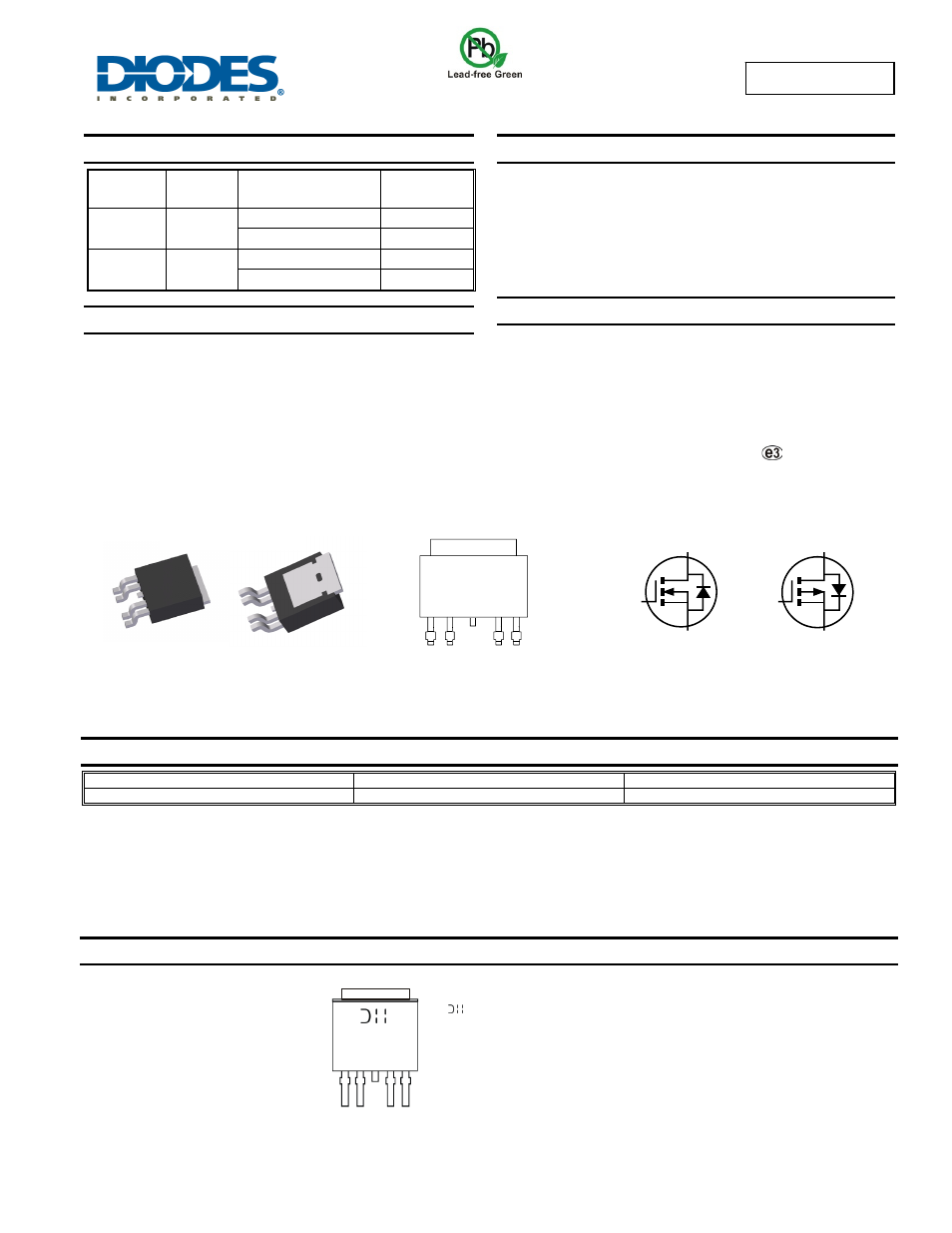

DMC3021LK4
Document number: DS35082 Rev. 5 - 2
1 of 10
April 2014
© Diodes Incorporated
DMC3021LK4
NEW PROD
UC
T
COMPLEMENTARY PAIR ENHANCEMENT MODE MOSFET
Product Summary
Device
V
(BR)DSS
R
DS(ON)
max
I
D
max
T
C
= +25°C
Q1 30V
21mΩ @ V
GS
= 10V
14A
32mΩ @ V
GS
= 4.5V
14A
Q2 -30V
39mΩ @ V
GS
= -10V
-14A
53mΩ @ V
GS
= -4.5V
-14A
Description and Applications
This MOSFET has been designed to minimize the on-state resistance
(R
DS(ON)
) and yet maintain superior switching performance, making it
ideal for high efficiency power management applications.
• Motor
Control
•
Power Management Functions
• DC-DC
Converters
• Backlighting
Features and Benefits
•
0.6mm Profile – Ideal for Low Profile Applications
•
PCB Footprint of 4mm
2
•
Low Gate Threshold Voltage
•
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
•
Halogen and Antimony Free. “Green” Device (Note 3)
•
Qualified to AEC-Q101 Standards for High Reliability
Mechanical Data
• Case:
TO252-4
•
Case Material: Molded Plastic, "Green" Molding Compound UL
Flammability Classification Rating 94V-0
•
Moisture Sensitivity: Level 1 per J-STD-020
• Terminal
Connections
Indicator: See diagram
•
Terminals: Finish – Matte Tin annealed over Copper leadframe.
Solderable per MIL-STD-202, Method 208
•
Weight: 0.027 grams (approximate)
Ordering Information
(Note 4)
Part Number
Case
Packaging
DMC3021LK4-13
TO252-4
2500/Tape & Reel
Notes:
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. S
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at
Marking Information
C3021L
YYWW
= Manufacturer’s Marking
C3021L = Product Type Marking Code
YYWW = Date Code Marking
YY = Year (ex: 11 = 2011)
WW = Week (01 - 53)
Top View
Bottom View
Pinout Top View
N-Channel MOSFET
P-Channel MOSFET
D
S2
G2
D
S1
G1
D
D
G1
S2
S1
G2
TO252-4L
