Diodes DMC1229UFDB - Manual

DMC1229UFDB
Document number: DS36128 Rev. 4 - 2
1 of 9
www.diodes.com
September 2013
© Diodes Incorporated

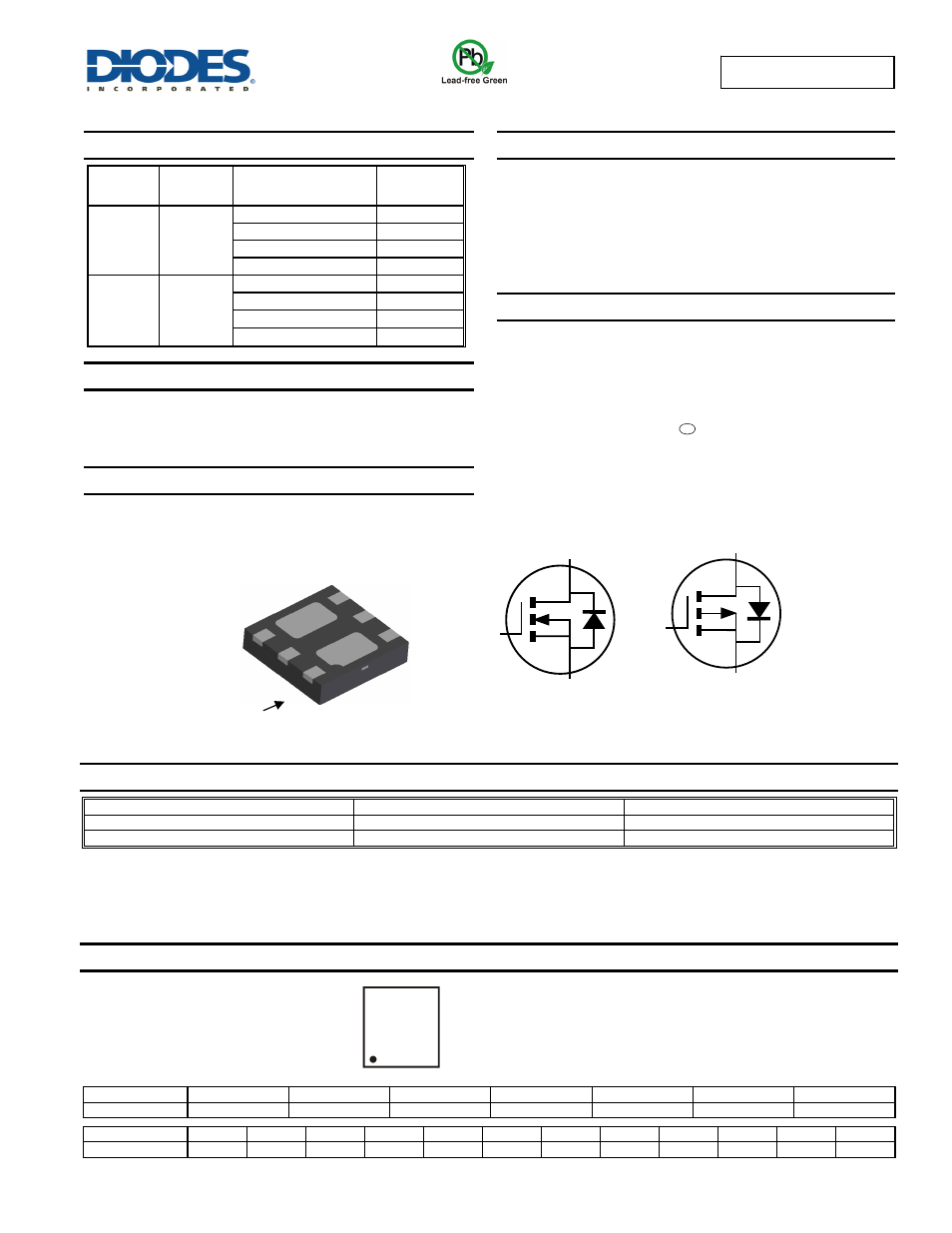

DMC1229UFDB
COMPLEMENTARY PAIR ENHANCEMENT MODE MOSFET
Product Summary
Device V
(BR)DSS
R
DS(ON) max
I
D MAX
T
A
= +25°C
Q1
N-Channel
12V
29mΩ @ V
GS
= 4.5V 5.6A
34mΩ @ V
GS
= 2.5V 5.1A
44mΩ @ V
GS
= 1.8V 4.5A
65mΩ @ V
GS
= 1.5V 3.7A
Q2
P-Channel
-12V
61mΩ @ V
GS
= -4.5V -3.8A
81mΩ @ V
GS
= -2.5V -3.3A
115mΩ @ V
GS
= -1.8V -2.8A
170mΩ @ V
GS
= -1.5V -2.3A
Description
This MOSFET has been designed to minimize the on-state resistance
(R
DS(ON)
) and yet maintain superior switching performance, making it
ideal for high efficiency power management applications.
Applications
 Load Switch
 Power Management Functions
 Portable Power Adaptors
Features
 Low On-Resistance
 Low Input Capacitance
 Low Profile, 0.6mm Max Height
 Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
 Halogen and Antimony Free. “Green” Device (Note 3)
 Qualified to AEC-Q101 Standards for High Reliability
Mechanical Data
 Case: U-DFN2020-6 Type B
 Case Material: Molded Plastic, “Green” Molding Compound.
UL Flammability Classification Rating 94V-0
 Moisture Sensitivity: Level 1 per J-STD-020
 Terminals: Finish NiPdAu over Copper leadframe. Solderable per
MIL-STD-202, Method 208
e4
 Terminals Connections: See Diagram Below
 Weight: 0.0065 grams (approximate)
Ordering Information
(Note 4)
Part Number Case Packaging
DMC1229UFDB -7 U-DFN2020-6 Type B 3000/Tape & Reel
DMC1229UFDB -13 U-DFN2020-6 Type B 10000/Tape & Reel
Notes: 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at http://www.diodes.com/products/packages.html
Marking Information
Date Code Key
Year 2012 2013 2014 2015 2016 2017 2018
Code Z A B C D E F
Month Jan Feb Mar Apr May Jun Jul Aug Sep Oct Nov Dec
Code 1 2 3 4 5 6 7 8 9 O N D
Bottom View
Internal Schematic
D2 = Product Type Marking Code
YM = Date Code Marking
Y = Year (ex: A = 2013)
M = Month (ex: 9 = September)
S1
G1
D2
S2
G2
D1
D2
Pin1
N-CHANNEL MOSFET P-CHANNEL MOSFET
U-DFN2020-6
Type B
D2
YM
D1
D1
S1
G1
D 2
S2
G2
