DMC1017UPD

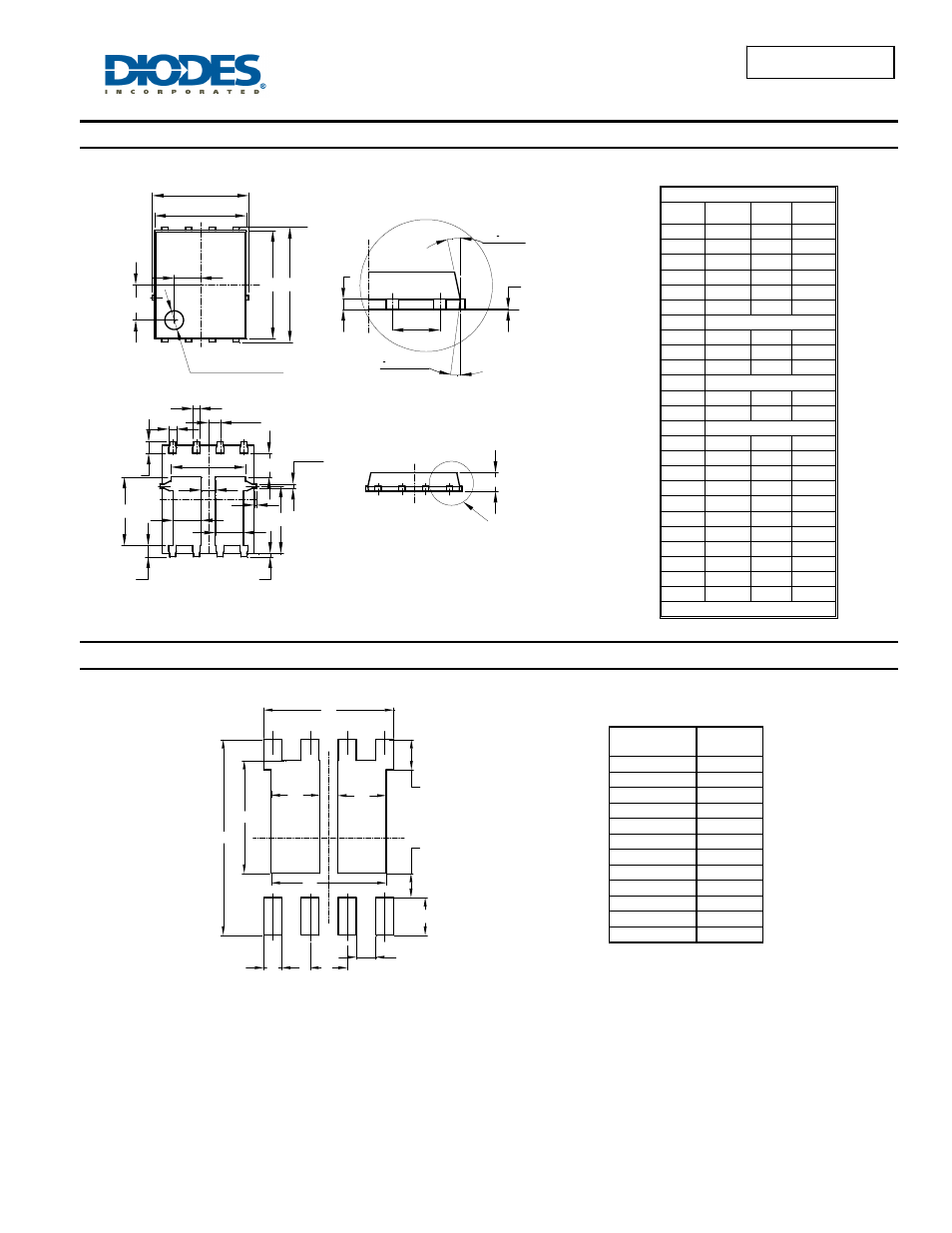

Package Outline Dimensions
Please see AP02002 at http://www.diodes.com/datasheets/ap02002.pdf for latest version.
Suggested Pad Layout
Please see AP02001 at http://www.diodes.com/datasheets/ap02001.pdf for latest version.
PowerDI5060-8
Dim Min Max Typ
A 0.90 1.10 1.00
A1 0 0.05 0.02
b 0.33 0.51 0.41
b1 0.300 0.366 0.333
b2 0.20 0.35 0.25
c 0.23 0.33 0.277
D 5.15 BSC
D1 4.85 4.95 4.90
D2 1.40 1.60 1.50
D3 - - 3.98
E 6.15 BSC
E1 5.75 5.85 5.80
E2 3.56 3.76 3.66
e 1.27BSC
k - - 1.27
k1 0.56 - -
L 0.51 0.71 0.61
La 0.51 0.71 0.61
L1 0.05 0.20 0.175
L4 - - 0.125
M 3.50 3.71 3.605
x - - 1.400
y - - 1.900
θ 10° 12° 11°
θ1 6° 8° 7°
All Dimensions in mm
Dimensions
Value
(in mm)
C 1.270
G 0.660
G1 0.820
X 0.610
X1 3.910
X2 1.650
X3 1.650
X4 4.420
Y 1.270
Y1 1.020
Y2 3.810
Y3 6.610
D E T A I L A
0 ︵4 x ︶
S e a t i n g P l a n e
A 1
c
e
0 1 ︵4 x ︶
D 1
E 1
D
E
1
y
x
Ø 1 . 0 0 0 D e p t h 0 . 0 7 ± 0 . 0 3 0
A
D E T A I L A
L
k
M
L 1
D 2
L a
E 2
b ︵8 x ︶
e / 2
1
b 1 ︵8 x ︶
b 2 ︵2 x ︶
D 2
k 1
D 3
L 4
1
8
Y 3
X 4
Y 1
Y 2
X 1
G 1
X C
Y ︵4 x ︶
G
X 2 X 3
