Diodes DMC1017UPD User Manual
Dmc1017upd, Product summary, Description and applications

POWERDI is a registered trademark of Diodes Incorporated.
DMC1017UPD
Document number: DS36903 Rev. 1 - 0
1 of 9
April 2014
© Diodes Incorporated

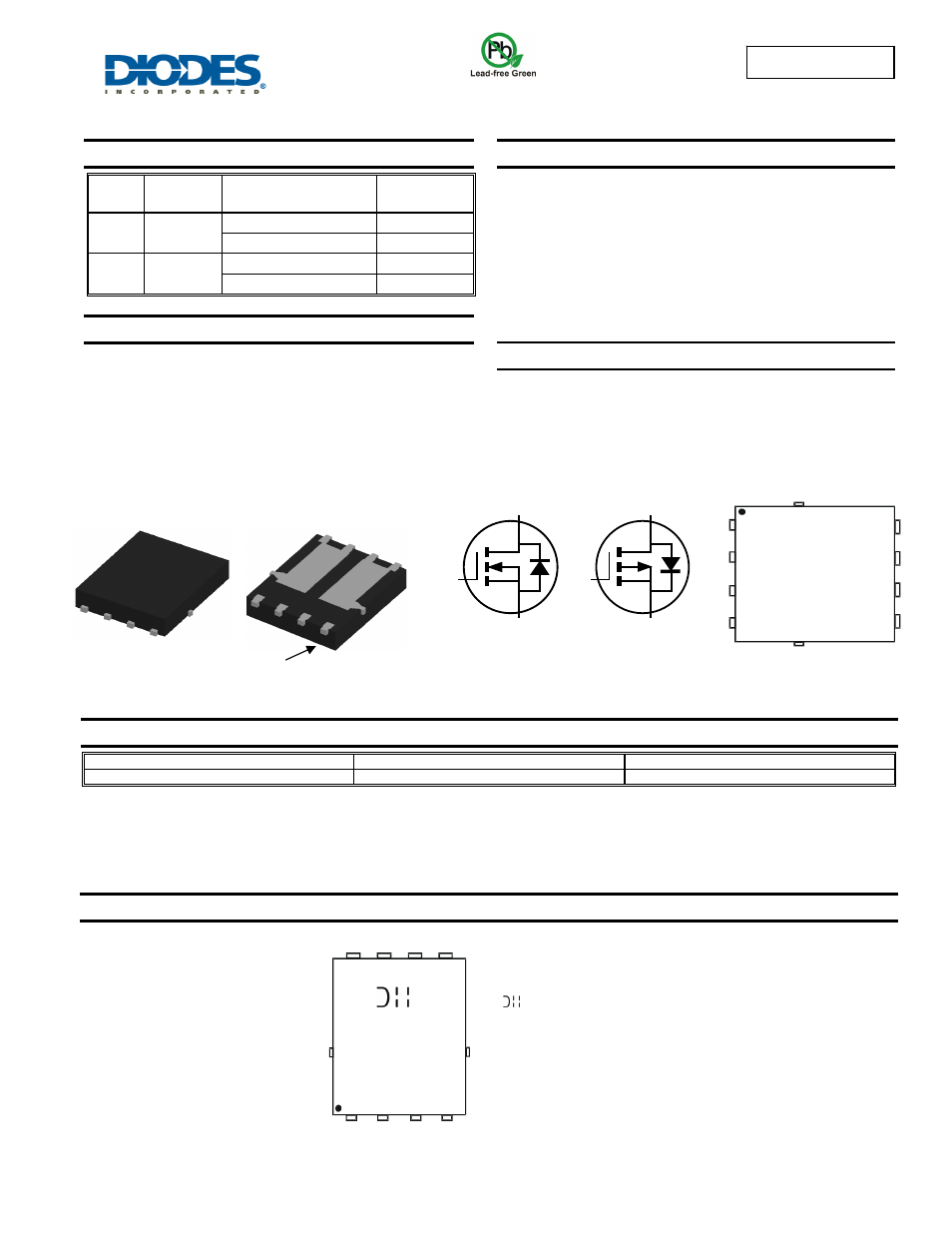

DMC1017UPD
COMPLEMENTARY PAIR ENHANCEMENT MODE MOSFET
POWERDI
®
5060-8
Product Summary
Device
V
(BR)DSS
R
DS(ON)
I
D
T
A
= +25°C
Q1 12V
17mΩ @ V
GS
= 4.5V
9.5A
25mΩ @ V
GS
= 2.5V
7.8A
Q2 -12V
32mΩ @ V
GS
= -4.5V
-6.9A
53mΩ @ V
GS
= -2.5V
-5.4A
Description and Applications
This new generation Complementary Pair Enhancement Mode
MOSFET has been designed to minimize R
DS(on)
and yet maintain
superior switching performance. This device is ideal for use in
Notebook battery power management and Loadswitch.
•
Notebook Battery Power Management
• DC-DC
Converters
• Loadswitch
Features and Benefits
•
Thermally Efficient Package-Cooler Running Applications
• High
Conversion
Efficiency
• Low
R
DS(ON)
– Minimizes On State Losses
•
Low Input Capacitance
•
Fast Switching Speed
•
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
•
Halogen and Antimony Free. “Green” Device (Note 3)
•
Qualified to AEC-Q101 Standards for High Reliability
Mechanical Data
• Case:
POWERDI5060-8
•
Case Material: Molded Plastic, “Green” Molding Compound. UL
Flammability Classification Rating 94V-0
•
Moisture Sensitivity: Level 1 per J-STD-020
•
Terminal Connections: See Diagram Below
•
Weight: 0.097 grams (approximate)
Ordering Information
(Note 4)
Part Number
Case
Packaging
DMC1017UPD-13
POWERDI5060-8
2500 / Tape & Reel
Notes:
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant
2. S
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at
Marking Information
Bottom View
Top View
Pin Configuration
Top View
Pin1
S1
D2
D1
G2
D1
D2
G1
S2
Q1 N-Channel MOSFET Q2 P-Channel MOSFET
D1
S1
G1
D2
S2
G2
S1
D1
G1
S2
G2
D1
D2
D2
C1017UD
YY WW
= Manufacturer’s Marking
C1017UD = Product Type Marking Code
YYWW = Date Code Marking
YY = Year (ex: 13 = 2013)
WW = Week (01 - 53)
