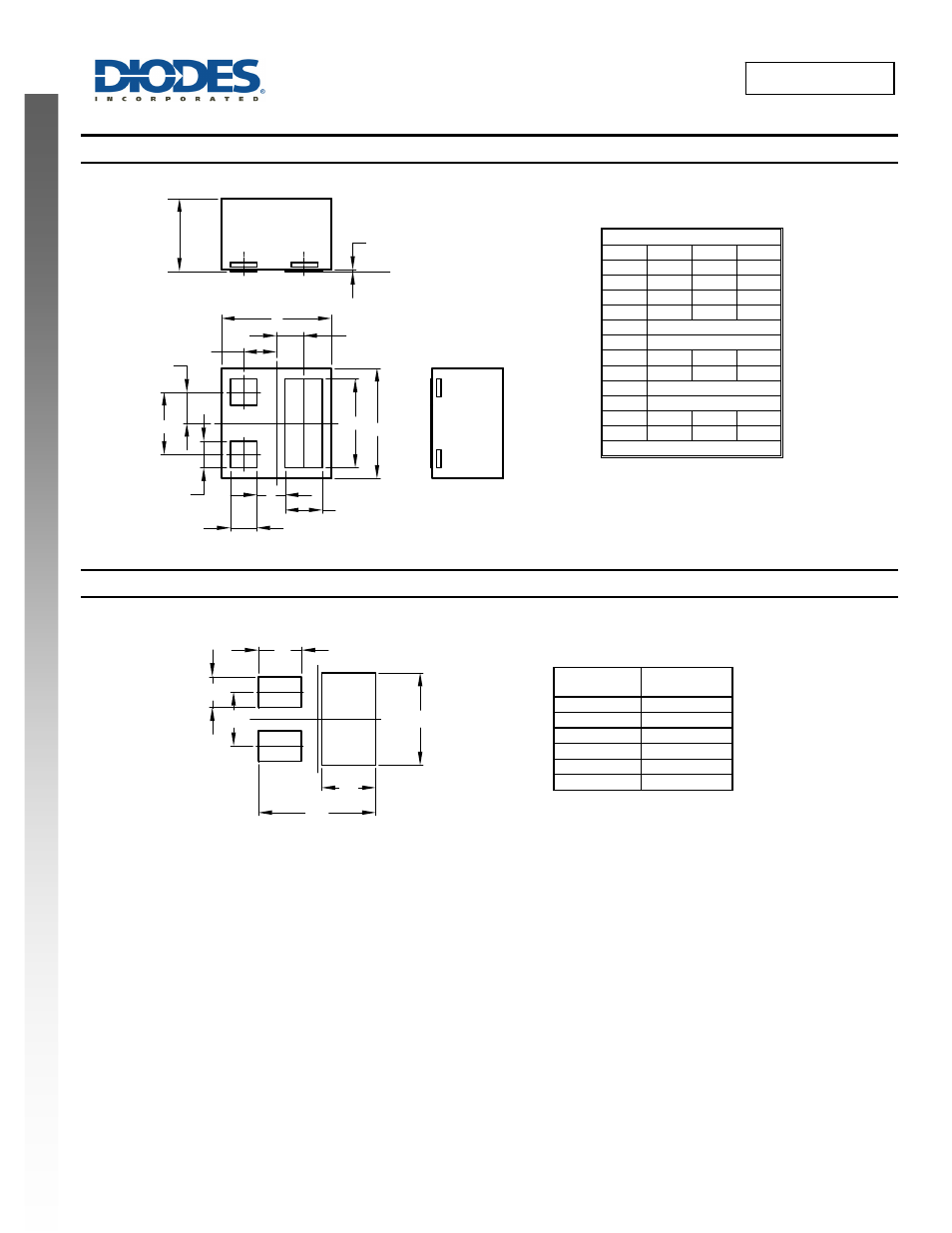

Package Outline Dimensions
Please see AP02002 at http://www.diodes.com/datasheets/ap02002.pdf for the latest version.
Suggested Pad Layout
Please see AP02001 at http://www.diodes.com/datasheets/ap02001.pdf for the latest version.
X2-DFN0606-3
Dim Min Max Typ
A 0.36 0.42 0.39
A1 0 0.05 0.02
b 0.10 0.20 0.15
D 0.57 0.67 0.62
D2 0.155 BSC
D3 0.185 BSC
E 0.57 0.67 0.62
E2 0.40 0.60 0.50
e 0.35 BSC
k 0.16 REF
L 0.09 0.21 0.15
L2 0.11 0.31 0.21
All Dimensions in mm
Dimensions
Value
(in mm)
C 0.350
X 0.280
X1 0.350
X2 0.760
Y 0.200
Y1 0.600
A
A 1
Seating Plane
D
E
L ︵2 x ︶
k b ︵2 x ︶
e E 2
L 2
e / 2
D 2
D 3
X
Y
C Y 1
X 1
X 2
