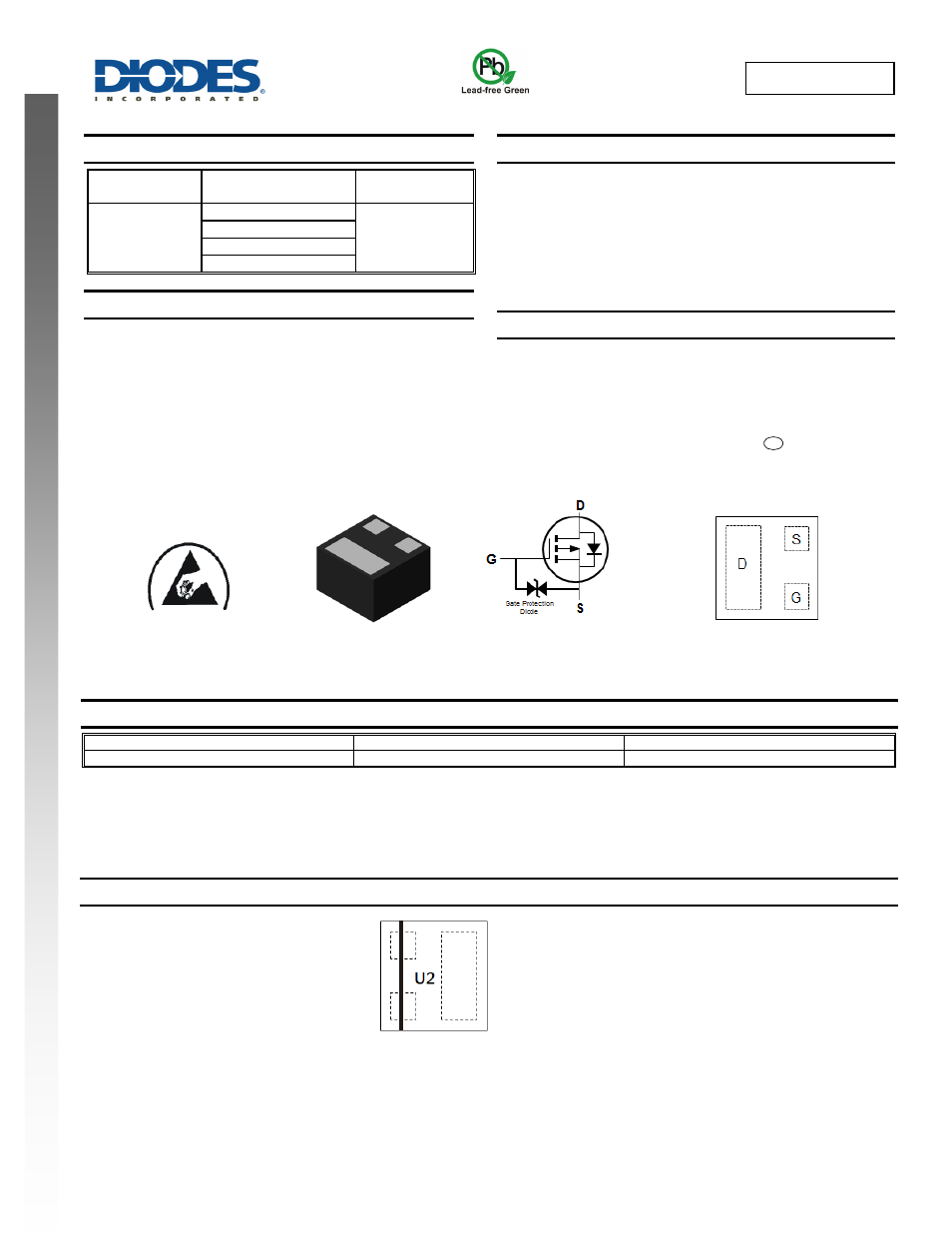

DMP32D9UFZ
NEW PROD
UC
T
NEW PROD
UC
T
P-CHANNEL ENHANCEMENT MODE MOSFET
Product Summary
V
(BR)DSS
R
DS(ON)
max
I
D
max
T
A
= +25°C
-30V
5Ω @ V
GS
= -4.5V
-0.2A
6Ω @ V
GS
= -2.5V
7Ω @ V
GS
= -1.8V
10Ω @ V
GS
= -1.5V
Description and Applications
This MOSFET has been designed to minimize the on-state resistance
(R
DS(ON)
) and yet maintain superior switching performance, making it
ideal for high efficiency power management applications.
•
General Purpose Interfacing Switch
•
Power Management Functions
• Analog
Switch
Features and Benefits
•
Low Package Profile, 0.42mm Maximum Package height
•
0.62mm x 0.62mm Package Footprint
• Low
On-Resistance
•
Very low Gate Threshold Voltage, 1.0V max
• ESD
Protected
Gate
•
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
•
Halogen and Antimony Free. “Green” Device (Note 3)
Mechanical Data
• Case:
X2-DFN0606-3
•
Case Material: Molded Plastic, “Green” Molding Compound
UL Flammability Classification Rating 94V-0
•
Moisture Sensitivity: Level 1 per J-STD-020
•
Terminals: Finish – NiPdAu over Copper leadframe
Solderable per MIL-STD-202, Method 208
•
Weight: 0.001 grams (approximate)
Ordering Information
(Note 4)
Part Number
Case
Packaging
DMP32D9UFZ-7B
X2-DFN0606-3
10K/Tape & Reel
Notes:
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. S more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at
Marking Information
Bottom View
Equivalent Circuit
U2 = Product Type Marking Code
Top View
Bar Denotes Gate
and Source Side
Top View
Package Pin Configuration
ESD PROTECTED
e4
