DMP1096UCB4
Document number: DS31954 Rev. 7 - 2
5 of 6
www.diodes.com
December 2012
© Diodes Incorporated
DMP1096UCB4

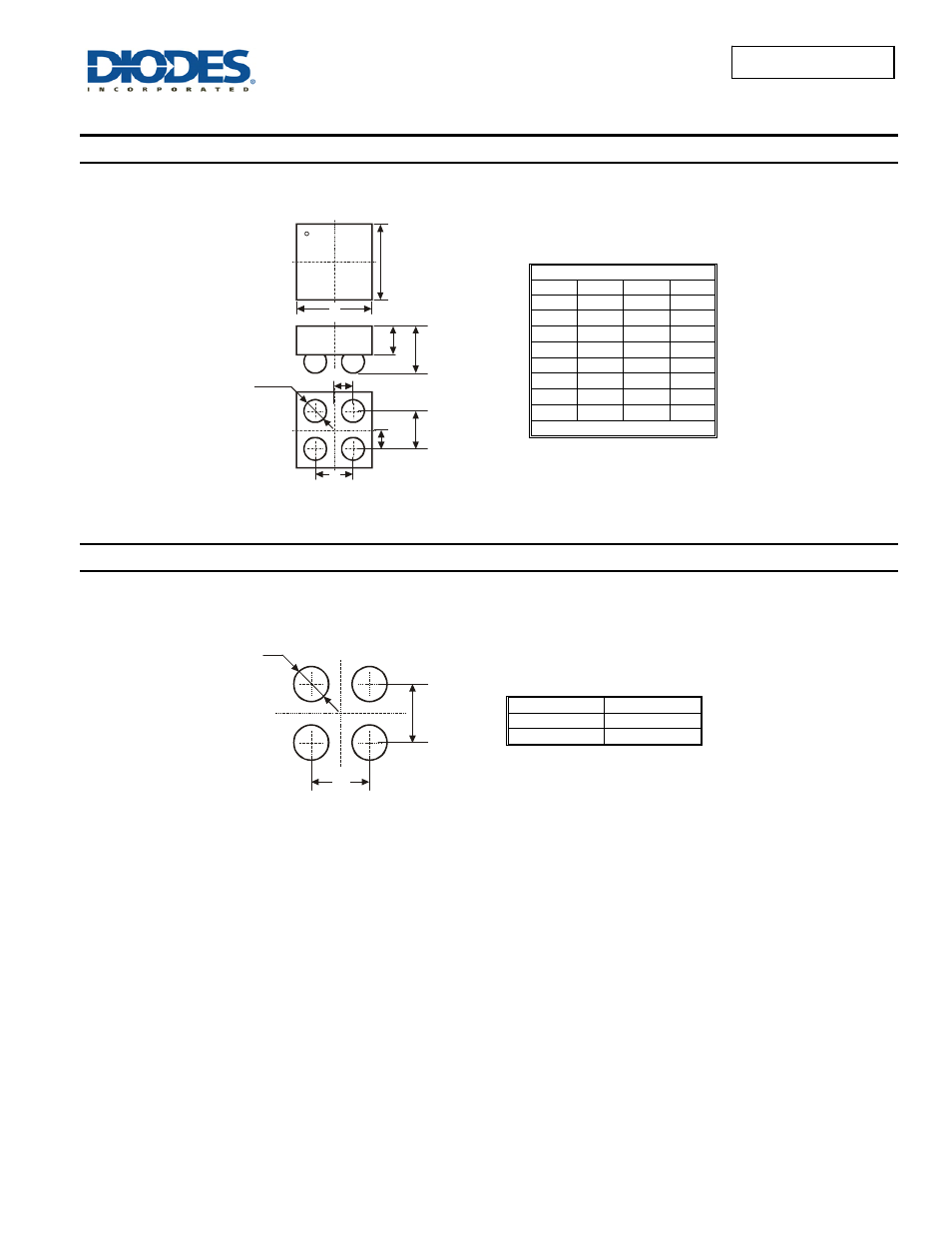

Package Outline Dimensions
Please see AP02002 at http://www.diodes.com/datasheets/ap02002.pdf for latest version.
Suggested Pad Layout
Please see AP02001 at http://www.diodes.com/datasheets/ap02001.pdf for the latest version.
U-WLB1010-4
Dim Min Max Typ
D 0.95 1.05 1.00
E 0.95 1.05 1.00
A − 0.62 −
A2 − − 0.38
b 0.25 0.35 0.30
e − − 0.50
SD − − 0.25
SE − − 0.25
All Dimensions in mm
Dimensions Value (in mm)
C 0.50
D 0.25
C
C
ØD
E
D
A2
A
SD
e
SE
e
4X-Ø b
