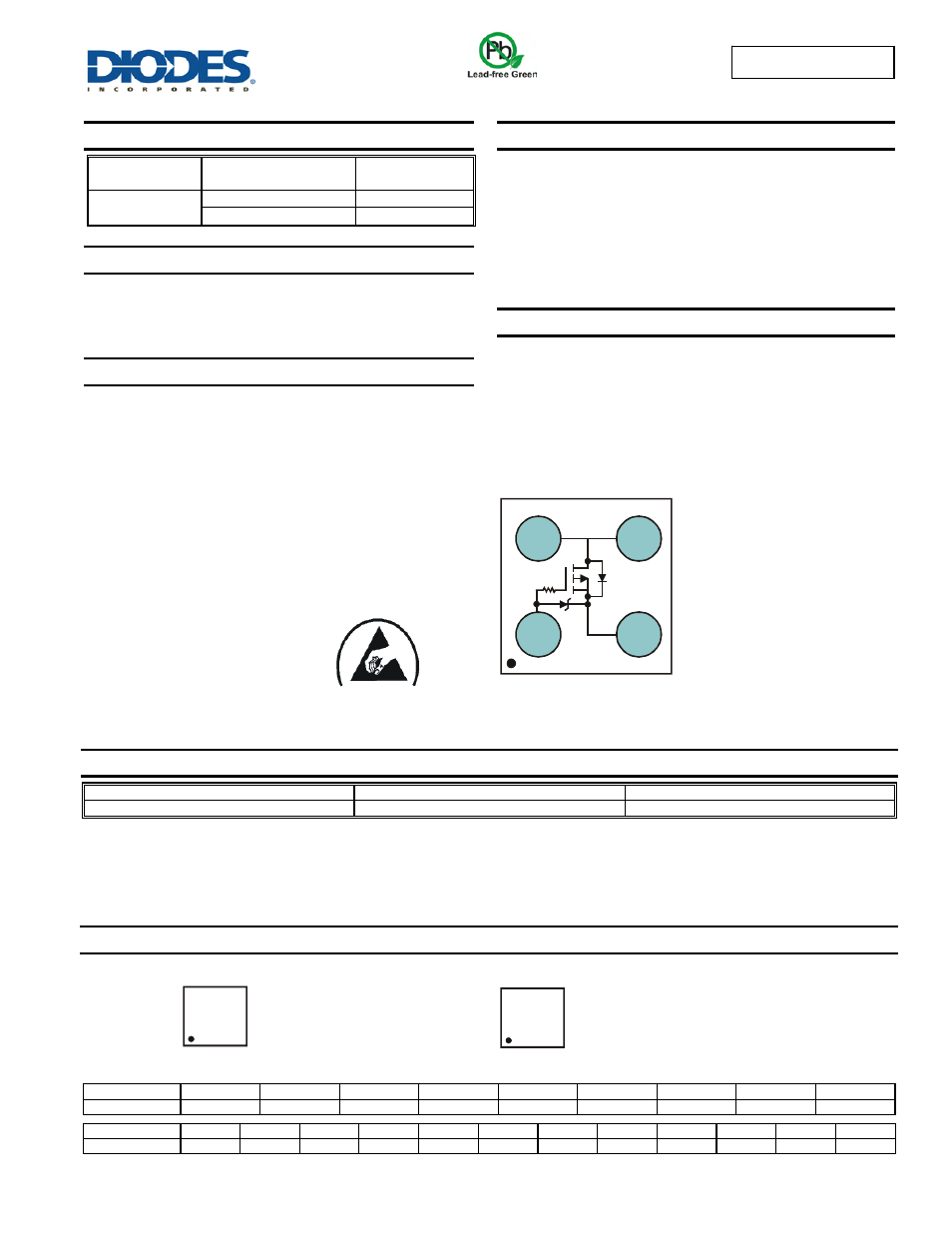

DMP1096UCB4
Document number: DS31954 Rev. 7 - 2
1 of 6
www.diodes.com
December 2012
© Diodes Incorporated
DMP1096UCB4
P-CHANNEL ENHANCEMENT MODE MOSFET
Product Summary
V
(BR)DSS
R
DS(ON)
I D
T
A
= +25°C
-12V
102m Ω @ V
GS
= -4.5V -2.6A
116m Ω @ V
GS
= -2.5V -2.4A
Description
This new generation MOSFET has been designed to minimize the on-
state resistance (R
DS(on)
) and yet maintain superior switching
performance, making it ideal for high efficiency power management
applications.
Applications
• Battery Management
• Load
Switch
•
Battery Protection
Features
• Low Q
g
& Q
gd
• Small Footprint
•
Low Profile 0.62mm height
•
ESD Protected Up To 3KV
• Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
• Halogen and Antimony Free. “Green” Device (Note 3)
•
Qualified to AEC-Q101 Standards for High Reliability
Mechanical Data
• Case:
U-WLB1010-4
• Terminal Connections: See Diagram Below
•
Weight: 0.005 grams (approximate)
Ordering Information
(Note 3)
Part Number Case Packaging
DMP1096UCB4-7 U-WLB1010-4 3000/Tape & Reel
Notes: 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. See http://www.diodes.com for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at http://www.diodes.com.
Marking Information
Date Code Key
Year 2010 2011 2012 2013 2014 2015 2016 2017 2018
Code X Y Z A B C D E F
Month Jan Feb Mar Apr May Jun Jul Aug Sep Oct Nov Dec
Code 1 2 3 4 5 6 7 8 9 O N D
U-WLB1010-4
Top View
Equivalent Circuit
ESD PROTECTED TO 3kV
S
D
G
D
1W = Product Type Marking Code
YM = Date Code Marking
Y = Year (ex: X = 2010)
M = Month (ex: 9 = September)
YM 1W
BW = Product Type Marking Code
YM = Date Code Marking
Y = Year (ex: X = 2010)
M = Month (ex: 9 = September)
YM BW
