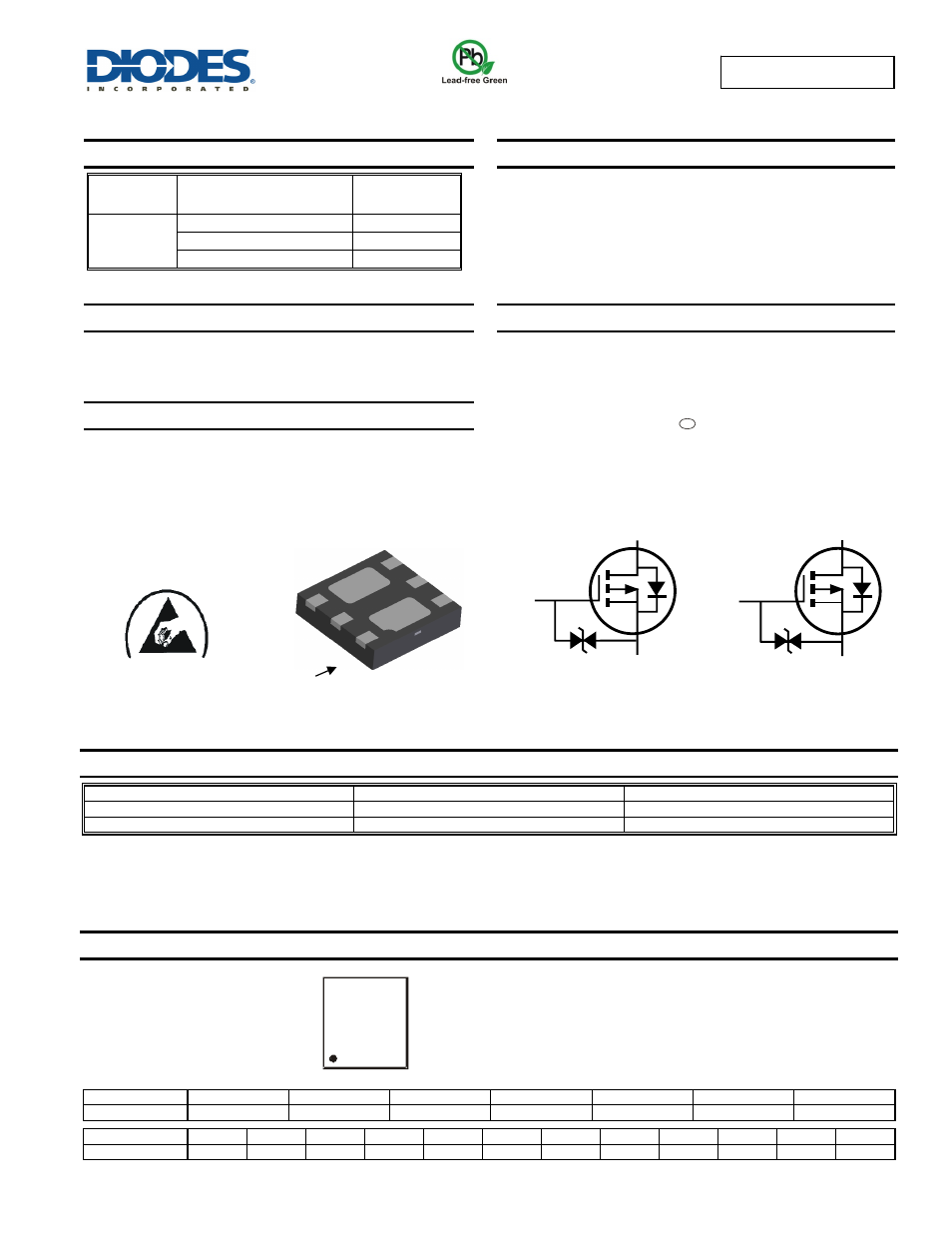

DMP1055UFDB

Document number: DS36934 Rev.1 - 2

1 of 6

www.diodes.com

April 2014

© Diodes Incorporated

DMP1055UFDB


DUAL P-CHANNEL ENHANCEMENT MODE MOSFET

Product Summary

V

(BR)DSS

R

DS(ON) max

I

D MAX

T

A

= +25°C

-12V

59mΩ @ V

GS

= -4.5V

-3.9A

81mΩ @ V

GS

= -2.5V

-3.3A

115mΩ @ V

GS

= -1.8V

-2.8A


Description

This MOSFET has been designed to minimize the on-state resistance
(R

DS(on)

) and yet maintain superior switching performance, making it

ideal for high efficiency power management applications.

Applications

 Load

Switch

Power Management Functions

 Portable

Power

Adaptors

Features

 Low

On-Resistance

Low Input Capacitance

Low Profile, 0.6mm Max Height

ESD protected gate.

Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)

Halogen and Antimony Free. “Green” Device (Note 3)

Qualified to AEC-Q101 Standards for High Reliability

Mechanical Data

Case: U-DFN2020-6 Type B

Case Material: Molded Plastic, “Green” Molding Compound.
UL Flammability Classification Rating 94V-0

Moisture Sensitivity: Level 1 per J-STD-020

Terminals: Finish NiPdAu over Copper leadframe. Solderable per
MIL-STD-202, Method 208

Terminals Connections: See Diagram Below

Weight: 0.0065 grams (approximate)


















Ordering Information

(Note 4)

Part Number

Case

Packaging

DMP1055UFDB

-7

U-DFN2020-6 Type B

3000/Tape & Reel

DMP1055UFDB

-13

U-DFN2020-6 Type B

10000/Tape & Reel

Notes:

1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.

2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"

and Lead-free.

3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and

<1000ppm antimony compounds.
4. For packaging details, go to our website at http://www.diodes.com/products/packages.html.

Marking Information









Date Code Key

Year

2012

2013

2014

2015

2016

2017

2018

Code

Z A B C D E F

Month

Jan

Feb

Mar

Apr

May

Jun

Jul

Aug

Sep

Oct

Nov

Dec

Code 1 2 3 4 5 6 7 8 9 O N D

e4

Bottom View

Internal Schematic

D6 = Product Type Marking Code
YM = Date Code Marking
Y = Year (ex: A = 2013)
M = Month (ex: 9 = September)

S1

G1

D2

S2

G2

D1

D2

Pin1

Q1 P-CHANNEL

Q2 P-CHANNEL

U-DFN2020-6

Type B

D1

ESD PROTECTED

D1

S1

G1

Gate Protection

Diode

D2

S2

G2

Gate Protection

Diode

D6

Y

M
