Diodes DMN6068SE - Manual (Page 8)

DMN6068SE
Document Number DS32033 Rev. 4 - 2
8 of 9
www.diodes.com
September 2013
© Diodes Incorporated
DMN6068SE
ADVAN
CE I
N
F
O
RM
ATI
O
N
A Product Line of
Diodes Incorporated

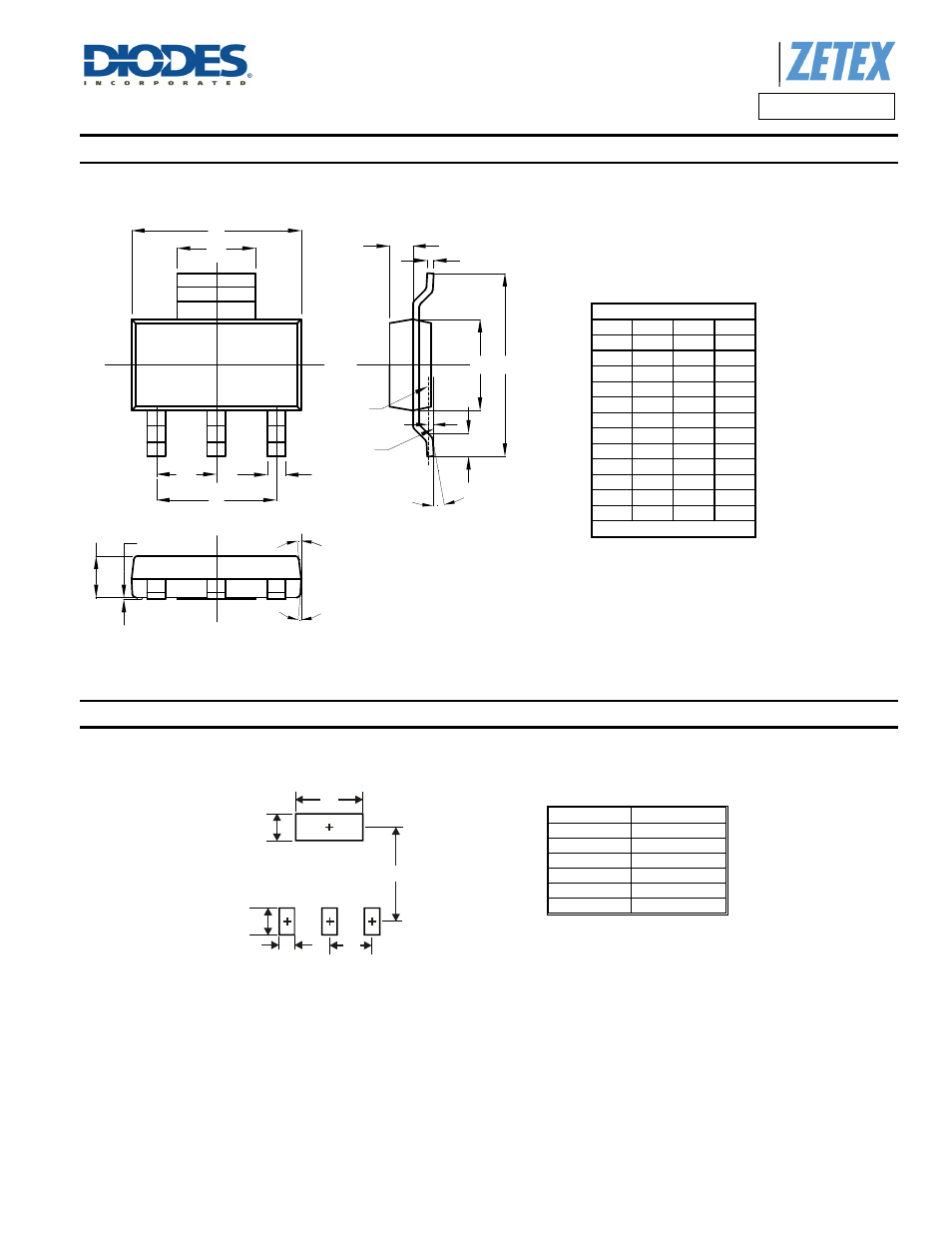

Package Outline Dimensions
Please see AP02002 at http://www.diodes.com/datasheets/ap02002.pdf for latest version.
Suggested Pad Layout
Please see AP02001 at http://www.diodes.com/datasheets/ap02001.pdf for the latest version.
A1 A
7°
7°
D
b
e
e1
b1
C
E1
L
0°-
10
°
Q
E
0.25
Seating
Plane
Gauge
Plane
SOT223
Dim Min Max Typ
A 1.55 1.65 1.60
A1 0.010 0.15 0.05
b 0.60 0.80 0.70
b1 2.90 3.10 3.00
C 0.20 0.30 0.25
D 6.45 6.55 6.50
E 3.45 3.55 3.50
E1 6.90 7.10 7.00
e - - 4.60
e1 - - 2.30
L 0.85 1.05 0.95
Q 0.84 0.94 0.89
All Dimensions in mm
Dimensions Value (in mm)
X1 3.3
X2 1.2
Y1 1.6
Y2 1.6
C1 6.4
C2 2.3
X2
C1
C2
X1
Y2
Y1
