Diodes DMN6068SE - Manual

DMN6068SE
Document Number DS32033 Rev. 4 - 2
1 of 9
www.diodes.com
September 2013
© Diodes Incorporated
DMN6068SE
ADVAN
CE I
N
F
O
RM
ATI
O
N
A Product Line of
Diodes Incorporated
60V N-CHANNEL ENHANCEMENT MODE MOSFET
Product Summary
V
(BR)DSS
R
DS(on)
I
D
T
A
= +25 C
60V
68mΩ @ V
GS
= 10V 5.6A
100mΩ @ V
GS
= 4.5V 4.7A
Description
This MOSFET has been designed to minimize the on-state resistance
and yet maintain superior switching performance, making it ideal for
high efficiency power management applications.
Applications
 Motor Control
 Transformer Driving Switch
 DC-DC Converters
 Power Management Functions
 Uninterrupted Power Supply
Features and Benefits
 100% Unclamped Inductive Switch (UIS) test in production
 Low on-resistance
 Fast switching speed
 Lead-Free Finish; RoHS compliant (Notes 1 & 2)
 Halogen and Antimony Free. “Green” Device (Note 3)
 Qualified to AEC-Q101 Standards for High Reliability
Mechanical Data
 Case: SOT223
 Case Material: Molded Plastic, “Green” Molding Compound.
UL Flammability Classification Rating 94V-0
 Moisture Sensitivity: Level 1 per J-STD-020
 Terminals Connections: See diagram below
 Terminals: Finish - Matte Tin annealed over Copper lead frame.
Solderable per MIL-STD-202, Method 208
 Weight: 0.112 grams (approximate)
Ordering Information
(Note 4 & 5)
Part Number Qualification Case Packaging
DMN6068SE-13 Standard SOT223 4000 / Tape & Reel
DMN6068SEQ-13 Automotive SOT223 4000 / Tape & Reel
Notes: 1. EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. All applicable RoHS exemptions applied.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at http://www.diodes.com/products/packages.html.
5. Automotive products are AEC-Q101 qualified and are PPAP capable. Automotive, AEC-Q101 and standard products are electrically and thermally the
same, except where specified. For more information, please refer to http://www.diodes.com/quality/product_grade_definitions/.
Marking Information
D
S
G

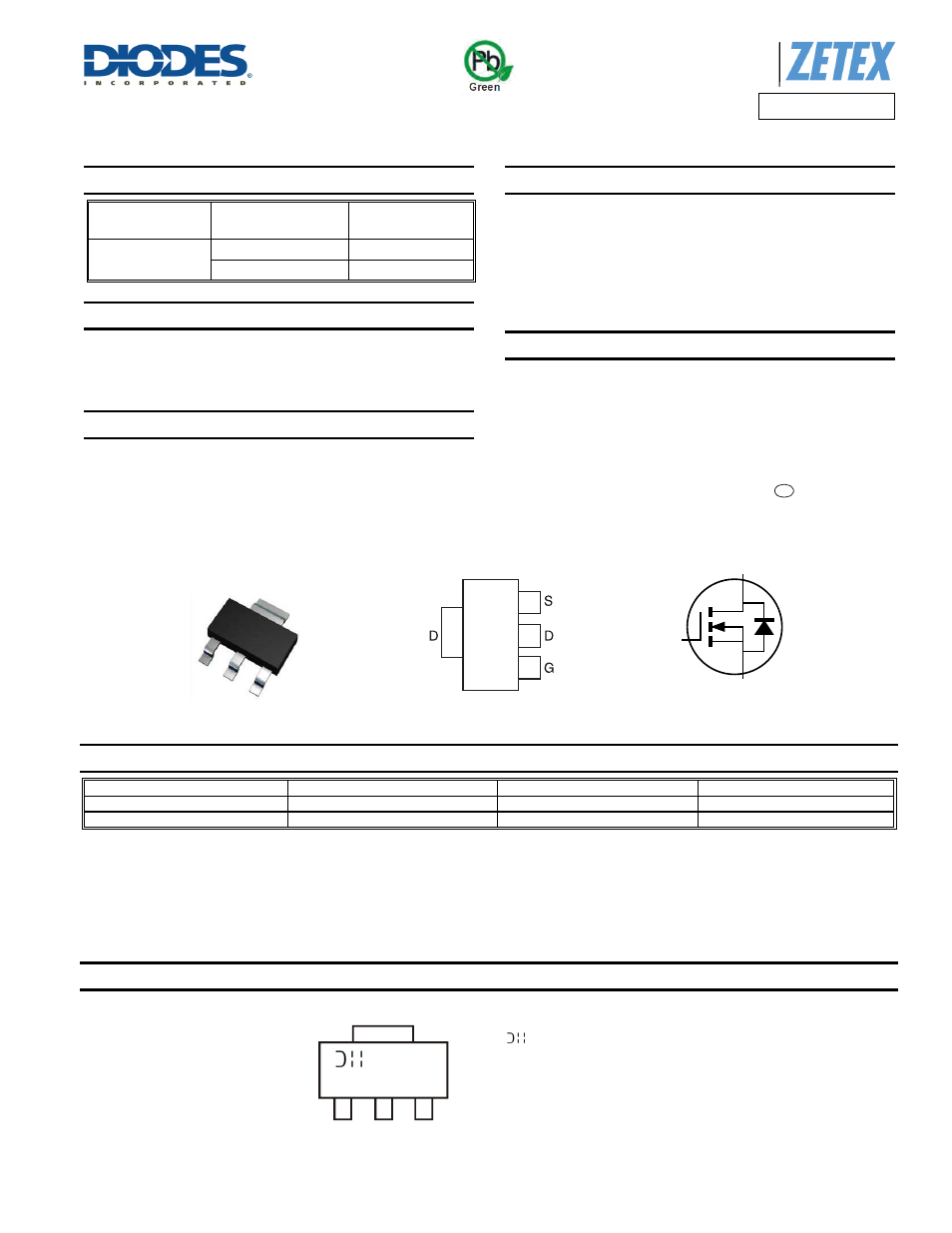

Equivalent Circuit Pin Out - Top View Top View
SOT223
= Manufacturer’s Marking
N6068 = Product Type Marking Code
YWW = Date Code Marking
Y = Year (ex: 9 = 2009)
WW = Week (01 - 53)
N6068
YWW
e3
