POWERDI is a registered trademark of Diodes Incorporated.

DMS3016SFG

Document number: DS35434 Rev. 7 - 2

1 of 7

www.diodes.com

October 2012

© Diodes Incorporated

DMS3016SFG

N-CHANNEL ENHANCEMENT MODE MOSFET WITH SCHOTTKY DIODE

POWERDI

®

Product Summary

V

(BR)DSS

R

DS(on) max

I

D

T

A

= 25°C

30V

13m

Ω @ V

GS

= 10V

10.2A

16m

Ω @ V

GS

= 4.5V

9.3A



Description

This new generation MOSFET has been designed to minimize the on-
state resistance (R

DS(on)

) and yet maintain superior switching

performance, making it ideal for high efficiency power management
applications.


Applications

• DC-DC

Converters

Power management functions

• Analog

Switch

Features and Benefits

DIOFET utilizes a unique patented process to monolithically
integrate a MOSFET and a Schottky in a single die to deliver:

• Low R

DS(ON)

– minimize conduction losses

• Low V

SD

– reducing the losses due to body diode conduction

• Low Q

rr

– lower Q

rr

of the integrated Schottky reduces body diode

switching losses

• Low gate capacitance (Q

g

/Q

gs

) ratio – reduces risk of shoot-

through or cross conduction currents at high frequencies

• Avalanche rugged – I

AR

and E

AR

rated

Small form factor thermally efficient package enables higher
density end products

Occupies just 33% of the board area occupied by SO-8 enabling
smaller end product

Lead-Free Finish; RoHS Compliant (Notes 1 & 2)

Halogen and Antimony Free. “Green” Device (Note 3)

Qualified to AEC-Q101 Standards for High Reliability

Mechanical Data

• Case:

POWERDI3333-8

Case Material: Molded Plastic, “Green” Molding Compound.

UL Flammability Classification Rating 94V-0

Moisture Sensitivity: Level 1 per J-STD-020

Terminal Connections: See Diagram

• Terminals:

Finish

⎯ Matte Tin annealed over Copper leadframe.

Solderable per MIL-STD-202, Method 208

Weight: 0.072 grams (approximate)





















Ordering Information

(Note 4)

Part Number

Case

Packaging

DMS3016SFG-7

POWERDI3333-8

2,000/Tape & Reel

DMS3016SFG-13

POWERDI3333-8

3,000/Tape & Reel

Notes:

1. EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. All applicable RoHS exemptions applied.

2. See http://www.diodes.com for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free.



3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at http://www.diodes.com.





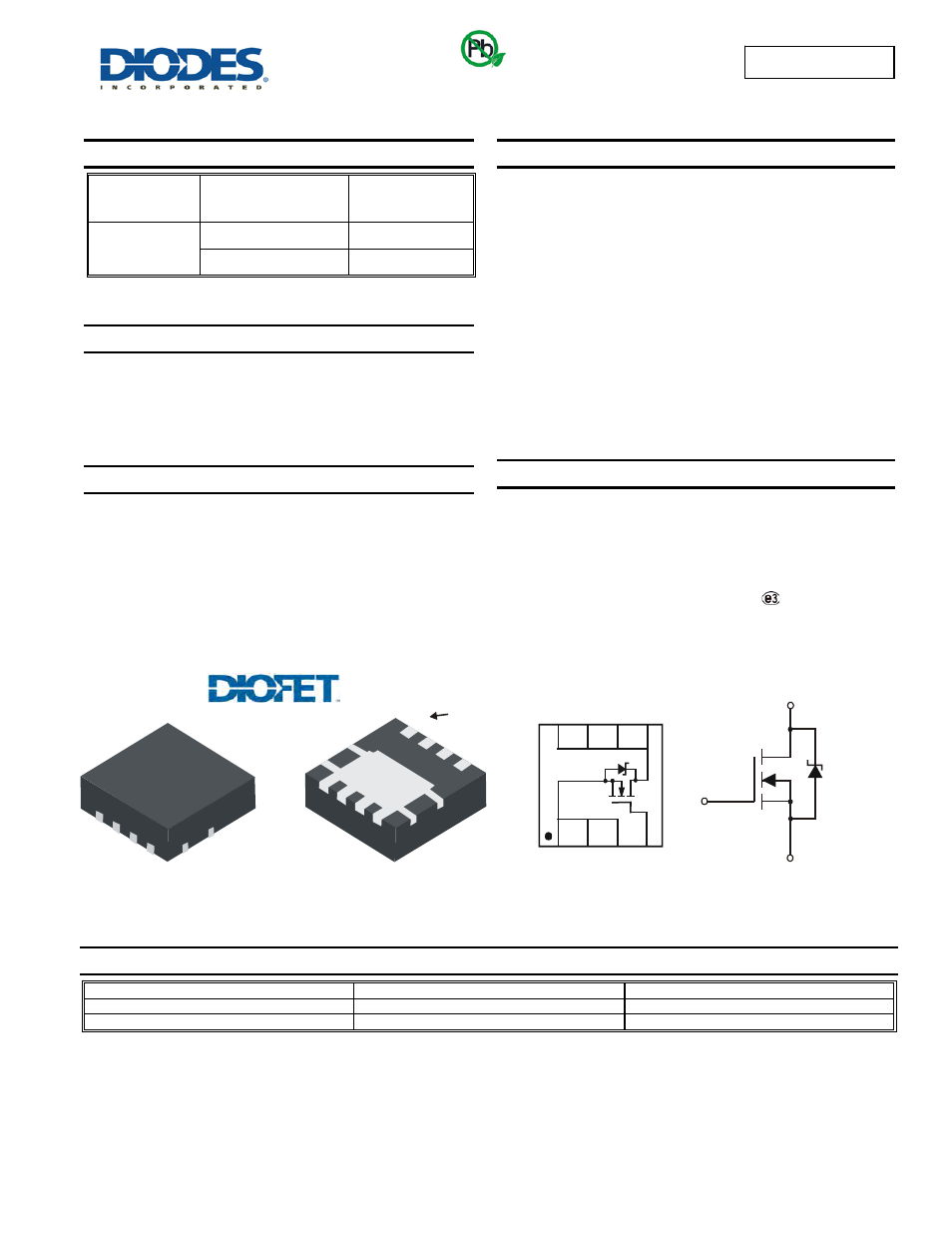

S

S

S

G

D

D

D

D

Pin 1

Top View

Bottom View

1

2

3

4

8

7

6

5

Source

Gate

Drain

Top View

Pin Configuration

Internal Schematic

POWERDI3333-8

Green
