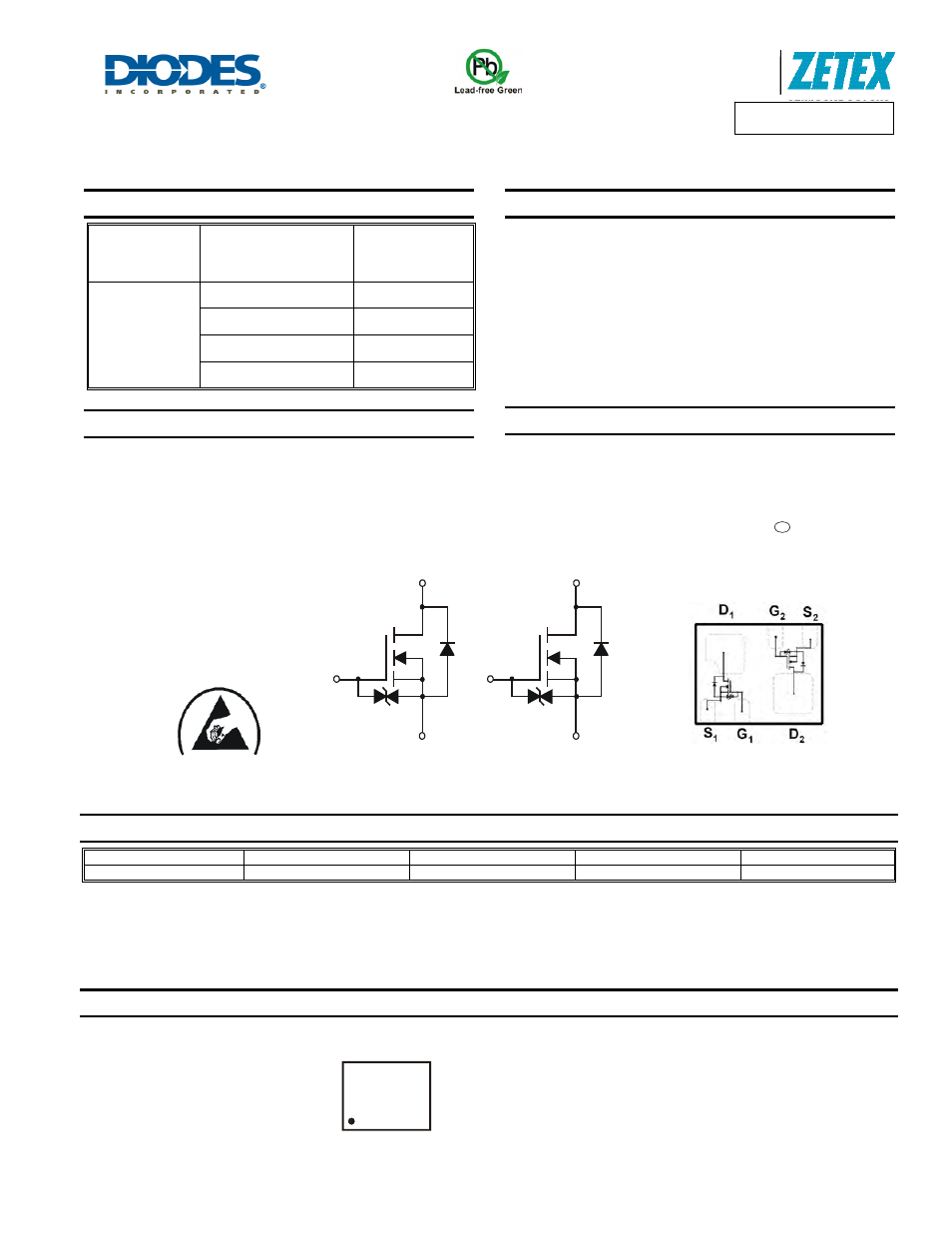

DMN2300UFL4

Datasheet Number: DS35946 Rev. 1 - 2

1 of 7

www.diodes.com

May 2012

© Diodes Incorporated

DMN2300UFL4

A Product Line of

Diodes Incorporated



20V DUAL N-CHANNEL ENHANCEMENT MODE MOSFET

Product Summary

V

(BR)DSS

Max R

DS(on)

I

D

max

T

A

= 25

°C

(Notes 6)

20V

195m

Ω @ V

GS

= 4.5V

2.11A

260m

Ω @ V

GS

= 2.5V

1.83A

380m

Ω @ V

GS

= 1.8V

1.51A

520m

Ω @ V

GS

= 1.5V

1.29A

Description and Applications

This MOSFET has been designed to minimize the on-state resistance
(R

DS(on)

) and yet maintain superior switching performance, making it

ideal for high efficiency power management applications.

• Load

switch

Features and Benefits

Footprint of just 1.3 mm

2

Ultra Low Profile Package - 0.4mm profile

On resistance <200m

Ω

Low Gate Threshold Voltage

Fast Switching Speed

Ultra-Small Surface Mount Package

ESD Protected Gate 2KV

Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)

Halogen and Antimony Free. “Green” Device (Note 3)

Qualified to AEC-Q101 Standards for High Reliability

Mechanical Data

• Case:

X2-DFN1310-6

Case Material: Molded Plastic, “Green” Molding Compound.
UL Flammability Classification Rating 94V-0

Moisture Sensitivity: Level 1 per J-STD-020

Terminals: Finish – NiPdAu annealed over Copper leadframe.
Solderable per MIL-STD-202, Method 208

















Ordering Information

(Note 4)

Part Number

Marking

Reel size (inches)

Tape width (mm)

Quantity per reel

DMN2300UFL4-7 23N

7

8

3000

Notes:

1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.

2. See http://www.diodes.com for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free.



3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at http://www.diodes.com.



Marking Information










Top View

Pin-Out

Device Symbol

23N = Product Type Marking Code

ESD PROTECTED TO 2kV

S1

Gate
Protection
Diode

G1

D1

Gate

Protection
Diode

S2

G2

D2

e4

23N
