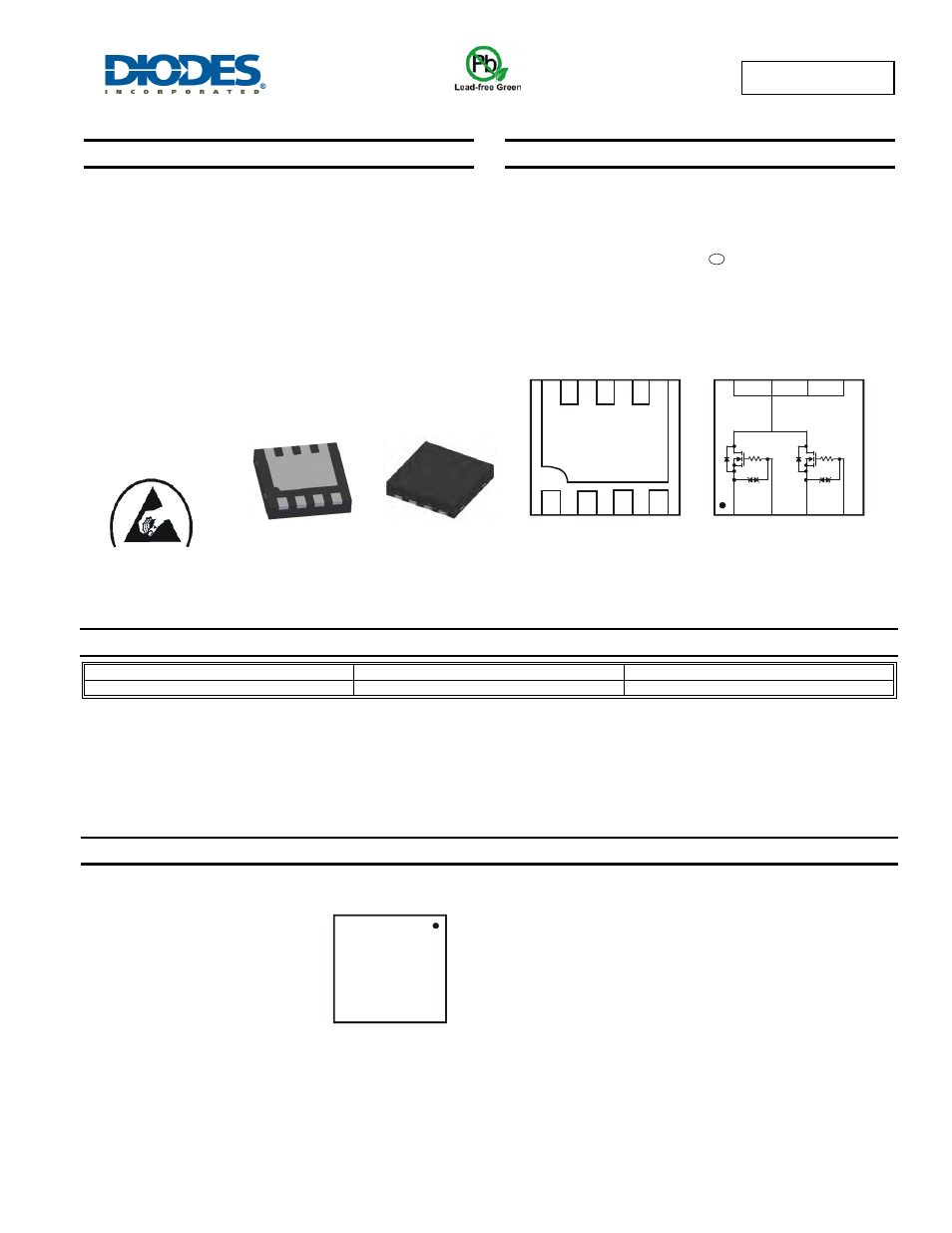

DMG8601UFG
Document number: DS31788 Rev. 5 - 2
1 of 6
September 2012
© Diodes Incorporated
DMG8601UFG
NEW PROD
UC
T
DUAL N-CHANNEL ENHANCEMENT MODE MOSFET
Features
• Low
On-Resistance
•
Low Input Capacitance
•
Fast Switching Speed
•
Low Input/Output Leakage
•
ESD Protected Up To 2KV
•
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
•
Halogen and Antimony Free. “Green” Device (Note 3)
•
Qualified to AEC-Q101 Standards for High Reliability
Mechanical Data
• Case:
U-DFN3030-8
•
Case Material: Molded Plastic, “Green” Molding Compound.
UL Flammability Classification Rating 94V-0
•
Moisture Sensitivity: Level 1 per J-STD-020
•
Terminals: Finish - NiPdAu over Copper lead frame. Solderable
per MIL-STD-202, Method 208
e4
•
Polarity: See Diagram
•
Weight: 0.0172 grams (approximate)
Ordering Information
(Note 4)
Part Number
Case
Packaging
DMG8601UFG-7
U-DFN3030-8
3000/Tape & Reel
Notes:
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. Se information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at
Marking Information
Bottom View
Bottom View
Pin Configuration
Top View
Equivalent Circuit
Top View
S1
G1
S2
G2
D1/D2
5
6
7
8
4
3
2
1
5
6
7
8
4
3
2
1
2N4 = Product marking code
YYWW = Date code marking
YY = Last digit of year (ex: 09 for 2009)
WW = Week code (01 to 53)
YYW
W
2N4
U-DFN3030-8
ESD PROTECTED TO 2kV
