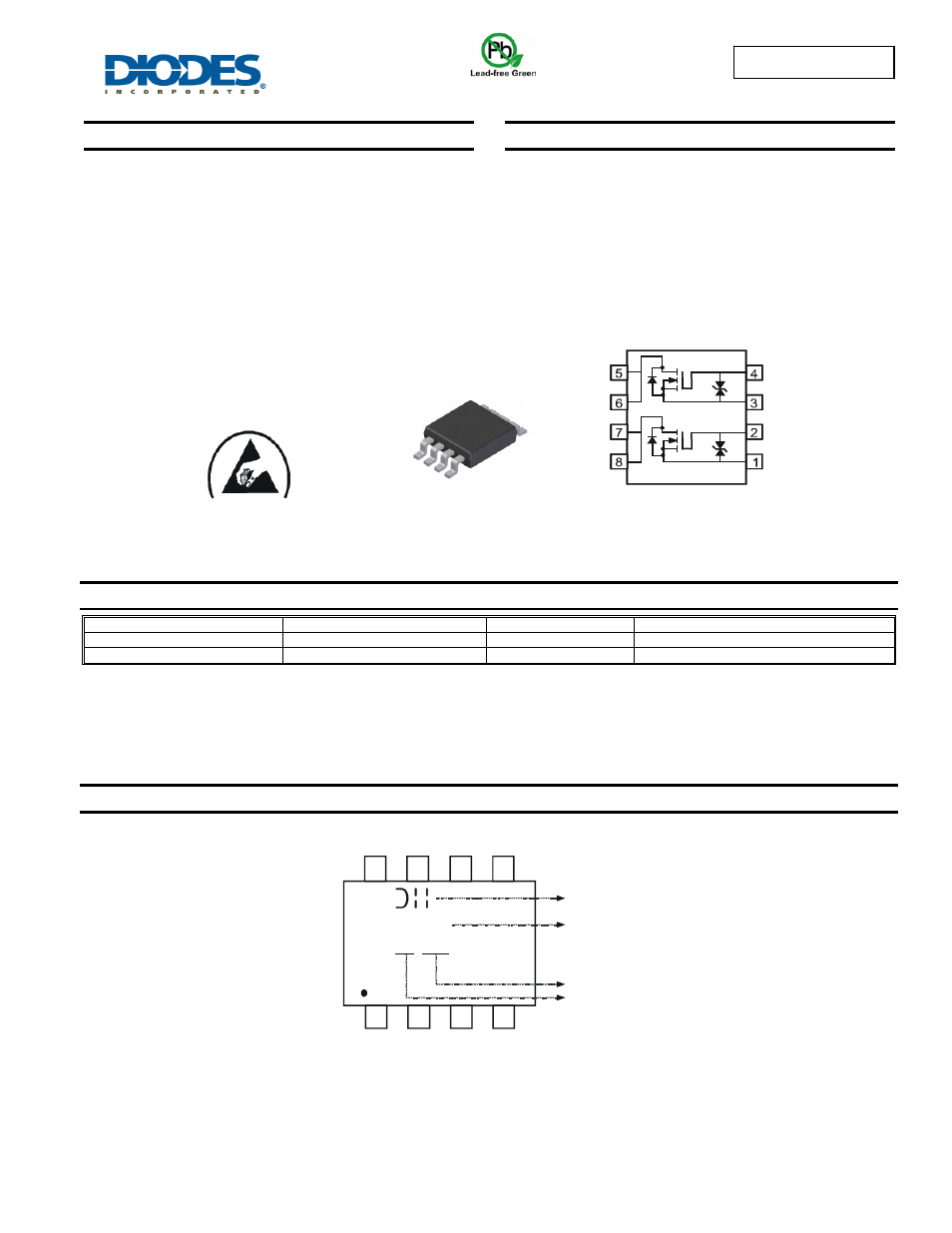

DMG6898LSD
Document number: DS31947 Rev. 4 - 2
1 of 6
March 2012
© Diodes Incorporated
DMG6898LSD
NEW PROD
UC
T
DUAL N-CHANNEL ENHANCEMENT MODE MOSFET
Features
• Low
On-Resistance
•
Low Input Capacitance
•
Fast Switching Speed
•
Low Input/Output Leakage
•
ESD Protected Up To 2kV
•
Lead Free By Design/RoHS Compliant (Note 1)
•
"Green" Device (Note 2)
•
Qualified to AEC-Q101 Standards for High Reliability
Mechanical Data
• Case:
SO-8
•
Case Material: Molded Plastic, “Green” Molding Compound.
UL Flammability Classification Rating 94V-0
•
Moisture Sensitivity: Level 1 per J-STD-020
•
Terminal Connections: See Diagram Below
•
Weight: 0.072 grams (approximate)
Ordering Information
(Note 3)
Part Number
Qualification Case
Packaging
DMG6898LSD-13
Commercial
SO-8
2500 / Tape & Reel
DMG6898LSDQ-13
Automotive
SO-8
2500 / Tape & Reel
Notes:
1. EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. No purposely added lead. Halogen and Antimony free.
2. Diodes Inc.’s “Green” Policy can be found on our websit3. For packaging details, go to our website at
Marking Information
Top View
Top View
Internal Schematic
D1
G2
G1
D2
S1
S2
D1
D2
Logo
Part no.
Year: “08” = 2008
“09” = 2009
Xth week: 01 ~ 53
1
4
8
5
G6898LD
YY WW
ESD PROTECTED TO 2kV
