DSS60601MZ4
60V NPN LOW SATURATION TRANSISTOR IN SOT223
Features
BV
CEO
> 60V
I
C
= 6A High Continuous Current
I
CM
= 12A Peak Pulse Current
Low Saturation Voltage V
CE(sat)
< 60mV @ 1A
Complementary PNP Type: DSS60600MZ4
Totally Lead-Free & Fully RoHS compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
Qualified to AEC-Q101 Standards for High Reliability
Mechanical Data
Case:
SOT223
Case material: molded plastic. “Green” molding compound.
UL Flammability Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: Finish - Matte Tin Plated Leads, Solderable per
MIL-STD-202, Method 208
Weight: 0.115 grams (approximate)
Ordering Information
(Note 4)
Product
Compliance
Marking
Reel Size (inches)
Tape width (mm)
Quantity per reel
DSS60601MZ4-13 AEC-Q101
ZNS66
13
12
2500
Notes:
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at http://www.diodes.com/products/packages.html

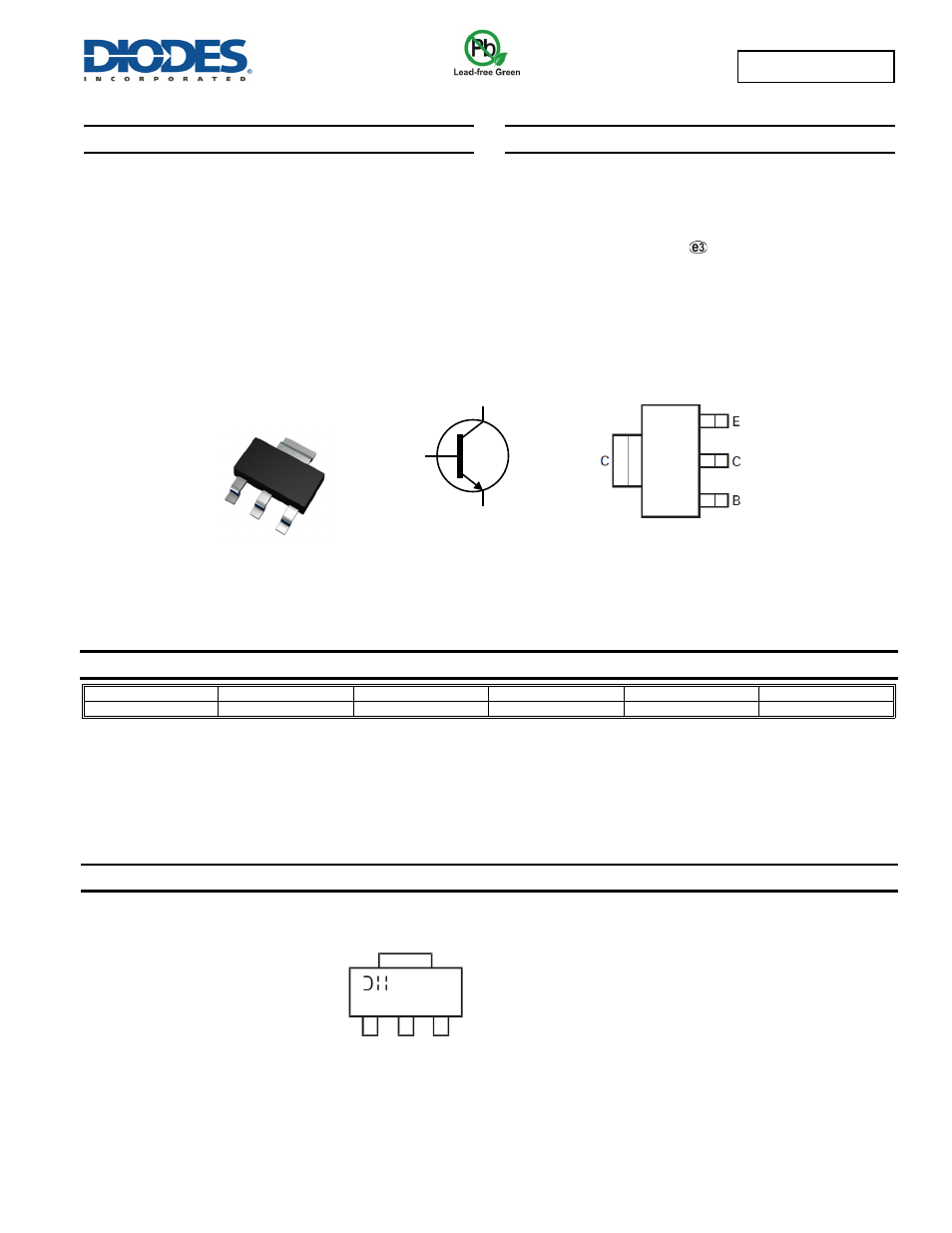

Marking Information
SOT223
Top View
Device Symbol
Top View
Pin-Out
ZNS66 = Product Type Marking Code
YWW = Date Code Marking
Y = Last digit of year (ex: 4 = 2014)
WW = Week code 01 - 52
ZNS66
YWW
C
E
B
