DSS4160DS

Document number DS36556 Rev. 1 – 2

1 of 7

www.diodes.com

November 2013

© Diodes Incorporated

DSS4160DS

60V DUAL NPN LOW SATURATION TRANSISTOR IN SOT26

Features

 BV

CEO

> 60V

I

C

= 1A high Continuous Collector Current

I

CM

= 2A Peak Pulse Current

R

CE(sat)

= 100mΩ for a Low Equivalent On-Resistance

Low Saturation Voltage V

CE(sat)

< 250mV @ 1A

Totally Lead-Free & Fully RoHS compliant (Notes 1 & 2)

Halogen and Antimony Free. “Green” Device (Note 3)

Qualified to AEC-Q101 Standards for High Reliability


Mechanical Data

 Case:

SOT26

Case Material: Molded Plastic, “Green” Molding Compound

UL Flammability Classification Rating 94V-0

Moisture Sensitivity: Level 1 per J-STD-020

Terminals: Finish – Matte Tin Plated Leads, Solderable per
MIL-STD-202, Method 208

Weight: 0.015 grams (approximate)

















Ordering Information

(Note 4)

Product

Marking

Reel size (inches)

Tape width (mm)

Quantity per reel

DSS4160DS-7 ZN9

7

8

3,000

Notes:

1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen and Antimony free, "Green”
and Lead-Free.
3. Halogen and Antimony free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at http://www.diodes.com/products/packages.html



Marking Information











Date Code Key

Year

2013

2014

2015

2016

2017

2018

2019

2020

Code

A B C D E F G H

Month

Jan

Feb

Mar

Apr

May

Jun

Jul

Aug

Sep

Oct

Nov

Dec

Code

1

2

3

4

5

6

7

8

9

O

N

D

ZN9 = Product Type Marking Code
YM = Date Code Marking
Y = Year ex: A = 2013
M = Month ex: 9 = September

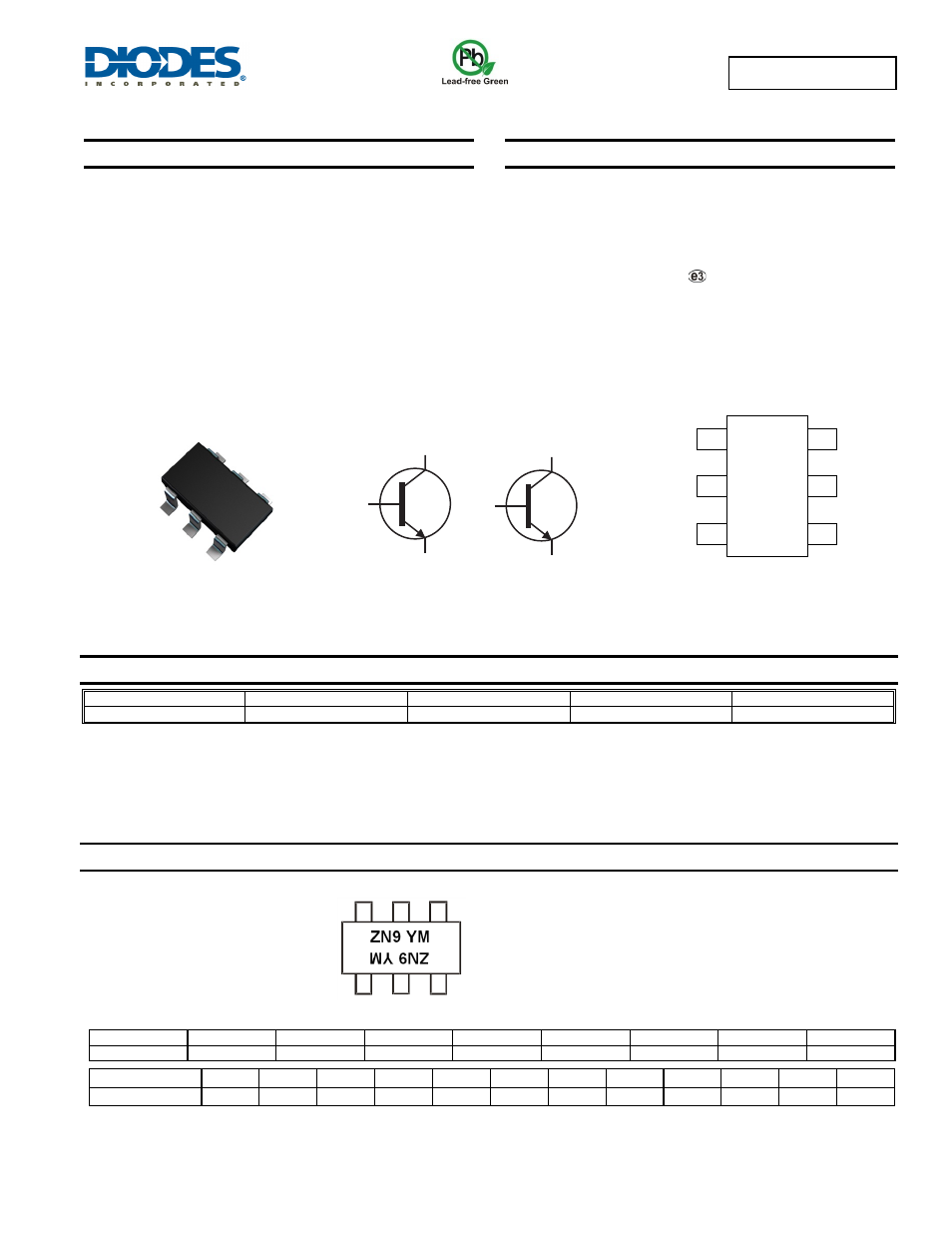

Device Symbol

Top View

Pin-Out

SOT26

Top View

C1

E1

B1

C2

E2

B2

B1

B2

C1

E2

E1

C2
