DST847BPDP6
Document number: DS32036 Rev. 1 - 2
1 of 8
January 2010
© Diodes Incorporated

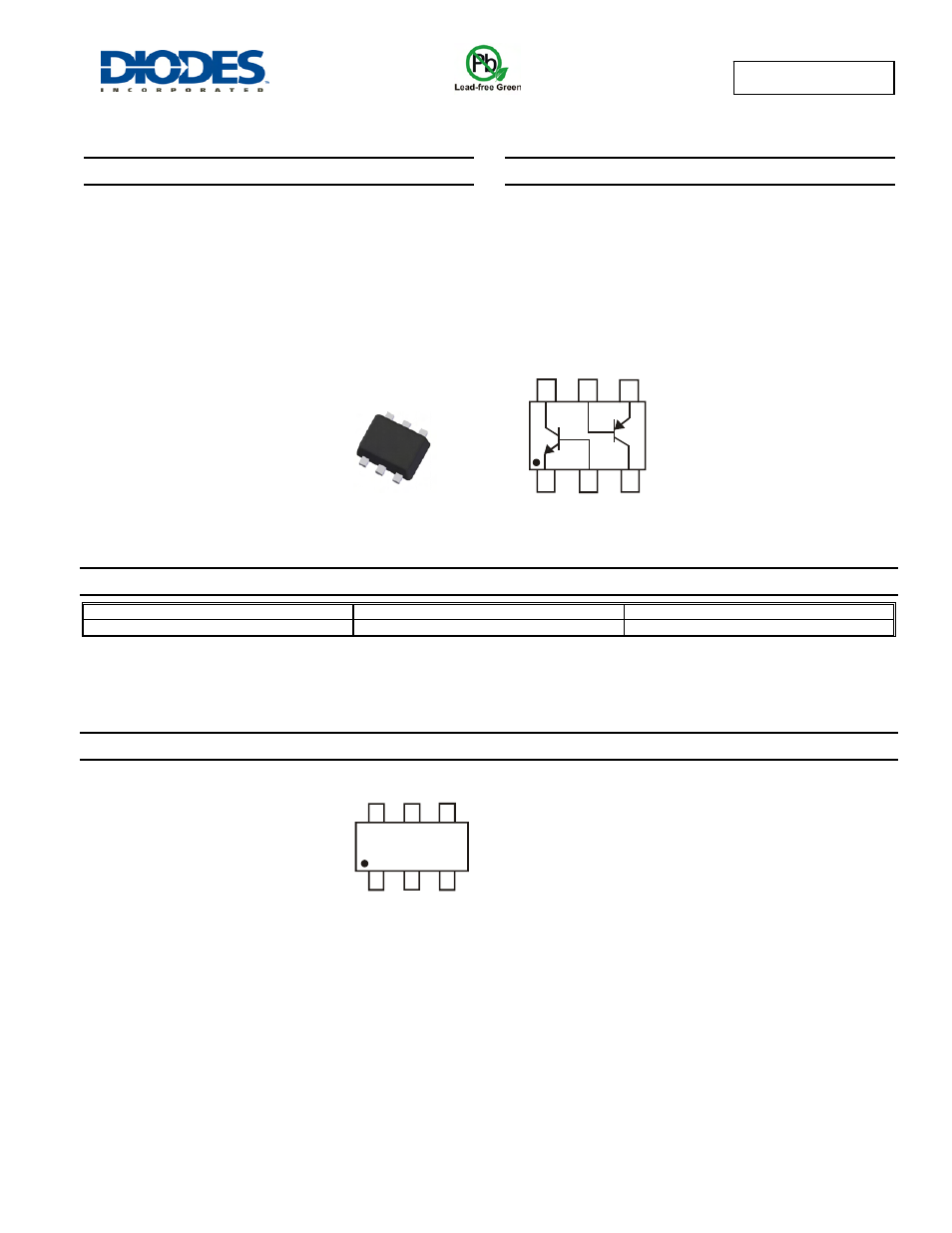

DST847BPDP6
COMPLEMENTARY DUAL SMALL SIGNAL SURFACE MOUNT TRANSISTOR
Features
•
Epitaxial Planar Die Construction
•
Ideally Suited for Automated Assembly Processes
•
Lead, Halogen and Antimony Free, RoHS Compliant (Note 1)
•
“Green” Device (Note 2)
•
Ultra Small Package
Mechanical Data
• Case:
SOT-963
•
Case Material: Molded Plastic, “Green” Molding Compound.
UL Flammability Classification Rating 94V-0
•
Moisture Sensitivity: Level 1 per J-STD-020
• Terminals:
Finish
⎯ Matte Tin annealed over Copper leadframe.
Solderable per MIL-STD-202, Method 208
•
Weight: 0.0027 grams (approximate)
Ordering Information
Device
Packaging
Shipping
DST847BPDP6-7
SOT-963
10,000/Tape & Reel
Notes:
1. No purposefully added lead. Halogen and Antimony Free.
2. Diodes Inc’s “Green” Policy can be found on our websit
Marking Information
Device Schematic
Top View
SOT-963
TC = Product Type Marking Code
6
Q1
Q2
5
4
3
1
2
TC
