74LVC1G34
Document number: DS36108 Rev. 3 - 2
2 of 15
March 2014
© Diodes Incorporated
NEW PROD
UC
T
74LVC1G34
Ordering Information
74 LVC1G 34 XXX -7
Logic Device
Function Package
Packing
74 : Logic Prefix
34 : 1-Input
W5 : SOT25
-7 : 7” Tape & Reel
LVC : 1.65 to 5.5 V
Buffer Gate
SE : SOT353
Logic Family
Z : SOT553
1G : One Gate
FS3 : X2-DFN0808-4
FW5 :
X1-DFN1010-6
FW4
:X2-DFN1010-6
FX4 : X2- DFN1409-6
FZ4 : X2- DFN1410-6
Notes: 4. Pad layout as shown on Diodes Inc. suggested pad layout document AP02001, which can be found on our website at
5. The taping orientation is located on our website at
Pin Descriptions
Pin Name
Description
NC No
Connection
A Data
Input
GND Ground
Y Data
Output
V
CC
Supply Voltage
Function Table
Inputs Output
A Y
H H
L L

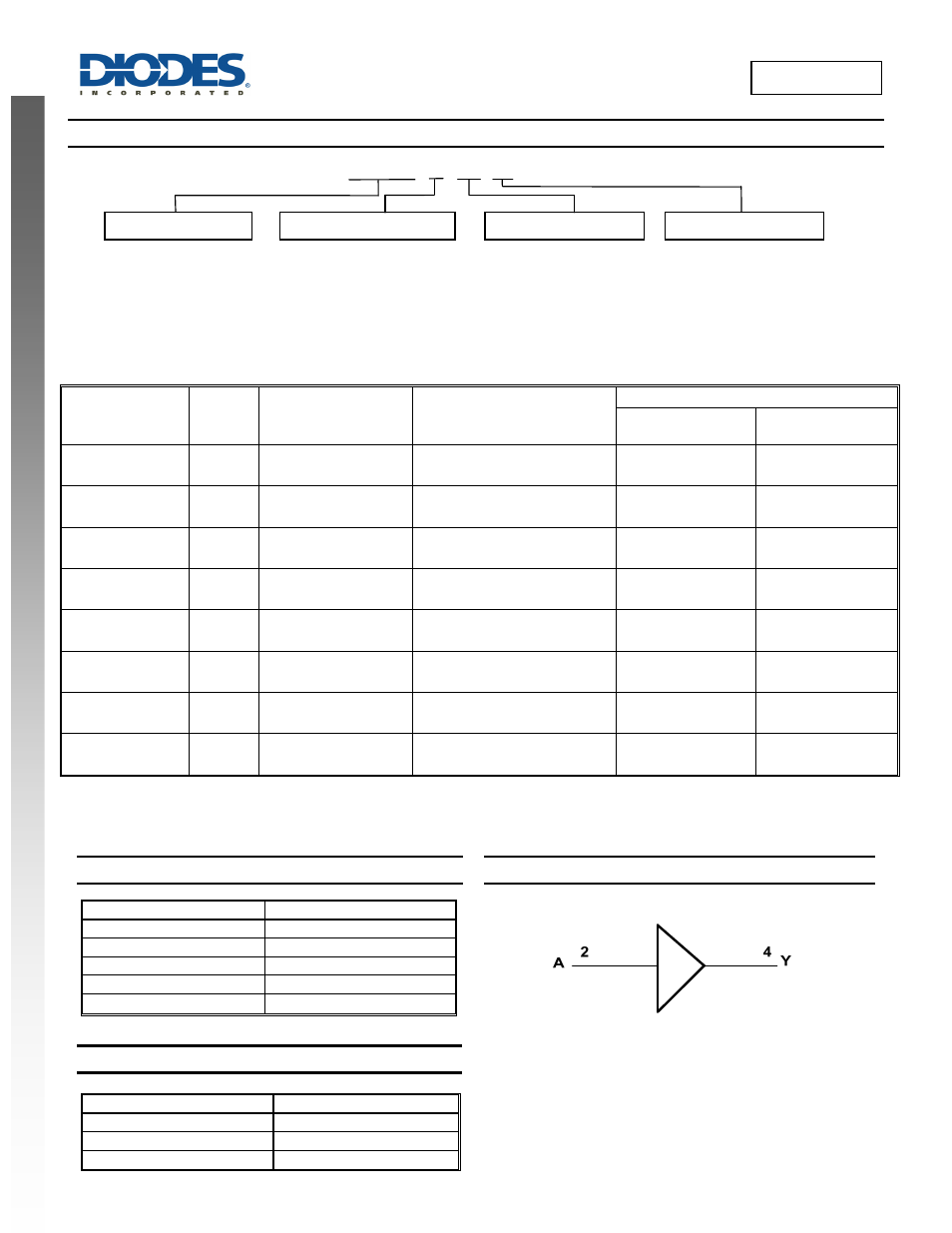

Logic Diagram
Device
Packa
ge
Code
Package
(Notes 4, 5)
Package
Size
7” Tape and Reel
Quantity
Part Number Suffix
74LVC1G34W5-7
(Future Product)
W5
SOT25
(Future Product)
3.0mm X 2.8mm X 1.2mm
0.95mm lead pitch
3000/Tape & Reel
-7
74LVC1G34SE-7
(Future Product)
SE
SOT353
(Future Product)
2.0mm X 2.0mm X 1.1mm
0.65mm lead pitch
3000/Tape & Reel
-7
74LVC1G34Z-7
(Future Product)
Z
SOT553
(Future Product)
1.6mm X 1.6 mm X 0.62mm
0.5mm lead pitch
4000/Tape & Reel
-7
74LVC1G34FS3-7
FS3
X2-DFN0808-4
0.9mm X 0.9 mm X 0.35mm
0.5mm pad pitch (diamond)
5000/Tape & Reel
-7
74LVC1G34FW5-7
(Future Product)
FW5
X1-DFN1010-6
(Future Product)
1.0mm X 1.0mm X 0.5mm
0.35mm pad pitch
5000/Tape & Reel
-7
74LVC1G34FW4-7
(Future Product)
FW4
X2-DFN1010-6
(Future Product)
1.0mm X 1.0mm X 0.4mm
0.35mm pad pitch
5000/Tape & Reel
-7
74LVC1G34FX4-7
(Future Product)
FX4
X2-DFN1409-6
(Chip scale alternative)
1.4mm X 0.9mm X 0.4mm
0.5mm pad pitch
5000/Tape & Reel
-7
74LVC1G34FZ4-7
(Future Product)
FZ4
X2-DFN1410-6
(Future Product)
1.4mm X 1.0mm X 0.4mm
0.5mm pad pitch
5000/Tape & Reel
-7
