74AUP2G17
Document number: DS35513 Rev. 2 - 2
2 of 12
www.diodes.com
December 2013
© Diodes Incorporated
74AUP2G17
NEW PROD
UC
T
Pin Descriptions
Pin Name Pin NO Function
1A 1 Data Input
GND 2 Ground
2A 3 Data Input
2Y 4 Data Output
V
CC
5 Supply Voltage
1Y 6 Data Output

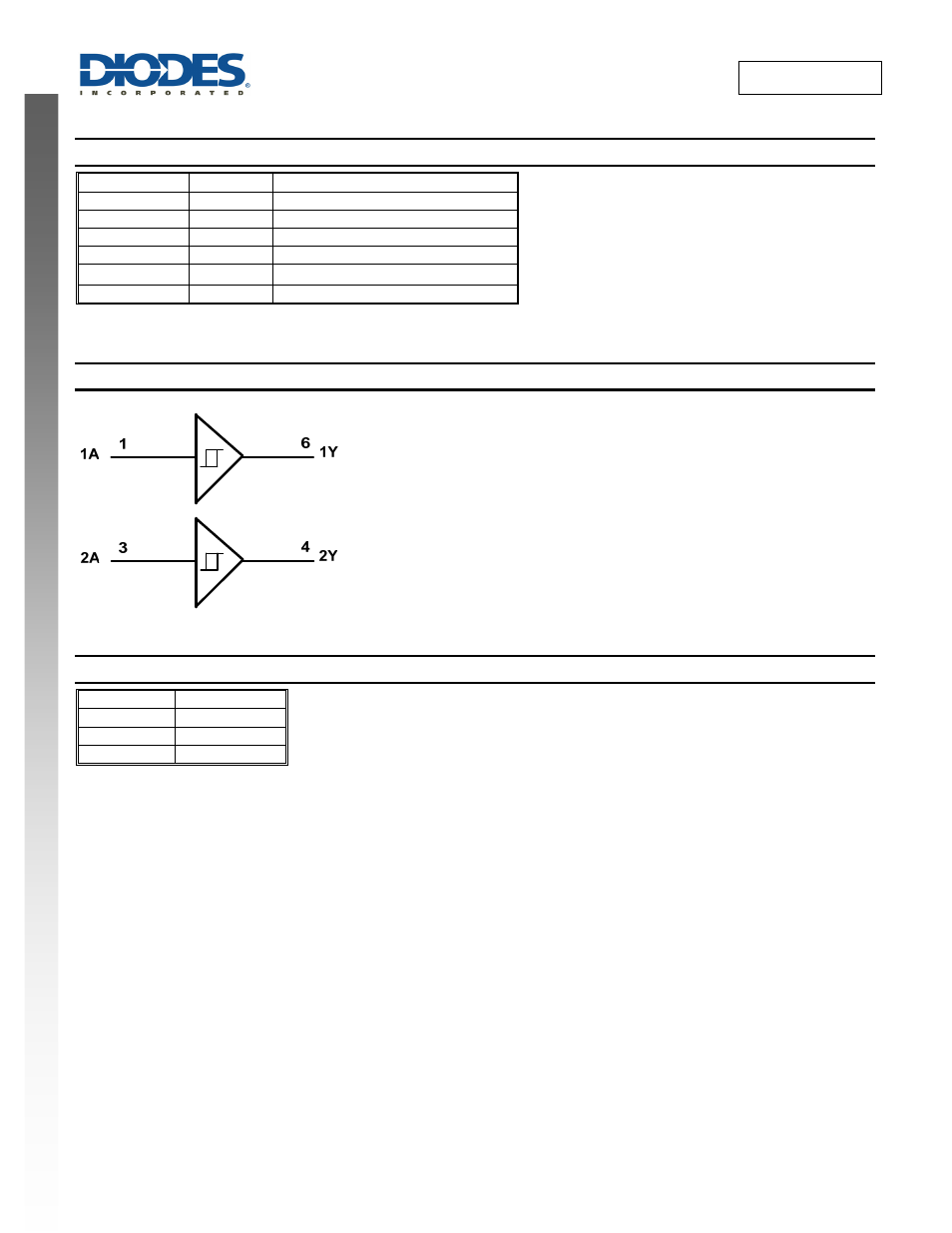

Logic Diagram
Function Table Diagram
Inputs Output
nA nY
H H
L L
