74AUP2G17
Document number: DS35513 Rev. 2 - 2
11 of 12
www.diodes.com
December 2013
© Diodes Incorporated
74AUP2G17
NEW PROD
UC
T

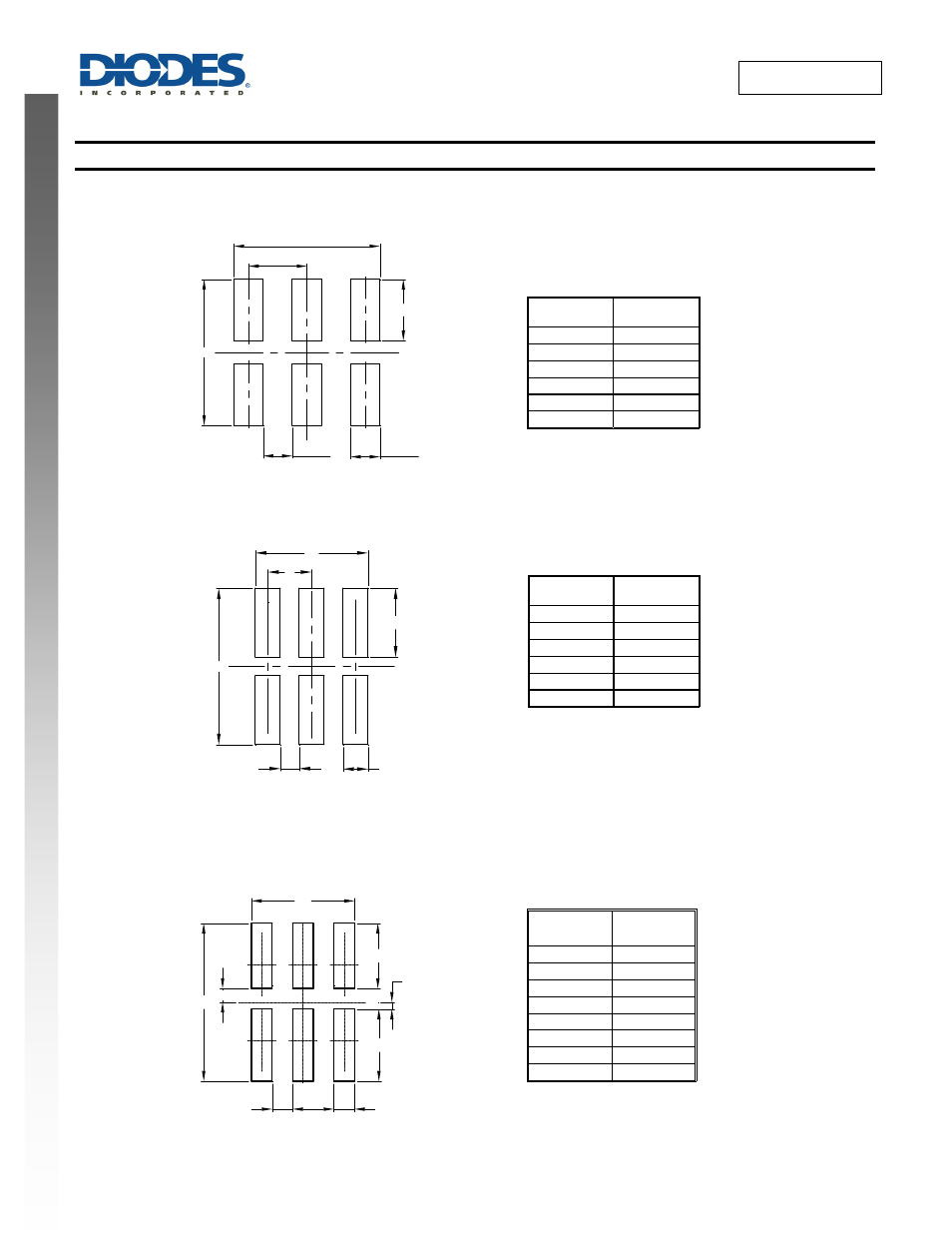

Suggested Pad Layout
Please see AP02001 at http://www.diodes.com/datasheets/ap02001.pdf for the latest version.
(1) Package
Type X2-DFN1410-6
(2) Package Type: X2-DFN1010-6
(3) Package Type: X2-DFN0910-6
Dimensions
Value
(in mm)
C 0.500
G 0.250
X 0.250
X1 1.250
Y 0.525
Y1 1.250
Dimensions
Value
(in mm)
C 0.350
G 0.150
X 0.200
X1 0.900
Y 0.550
Y1 1.250
Dimensions
Value
(in mm)
G 0.100
G1 0.050
G2 0.150
X 0.150
X1 0.750
Y 0.525
Y1 0.475
Y2 1.150
1
Y1
X1
X(6x)
Y (6x)
G(4x)
C
1
X1
Y1
Y(6x)
X(6x) G(4x)
C
P i n 1
X 1
Y 2
Y
Y 1
G 2 X
G 1
G
