AH276Q
Document number: DS31066 Rev. 6 - 2
5 of 6
www.diodes.com
September 2013
© Diodes Incorporated
AH276Q

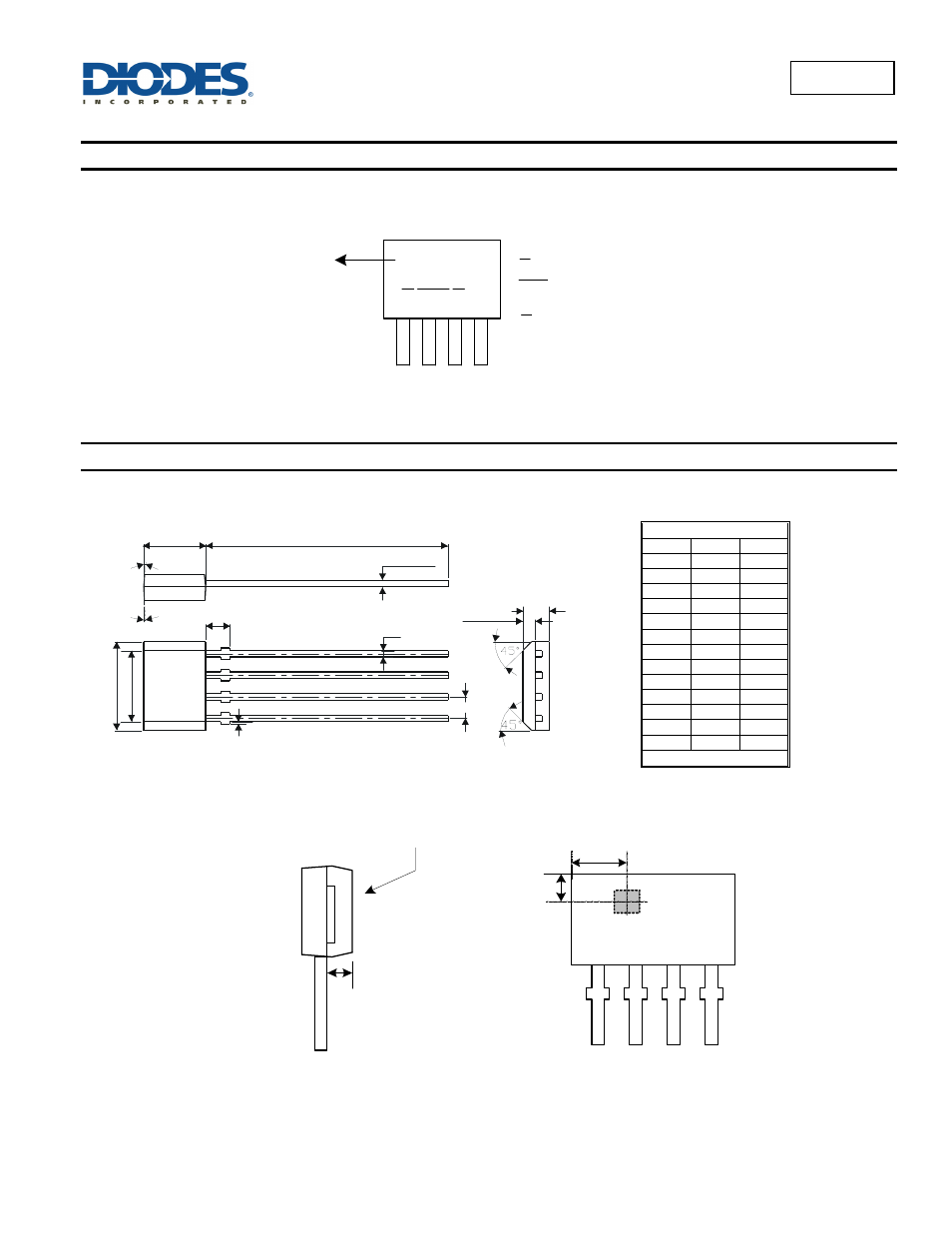

Marking Information
276Q Part Number
( Top View )
Y WW X
X : Internal Code : a~z : Lead Free
Y : Year : 0~9
WW : Week : 01~52, " 52" represents
52 and 53 week
A~Z : Green
SIP-4L
Package Outline Dimensions
(All dimensions in mm.)
Please see AP02002 at http://www.diodes.com/datasheets/ap02002.pdf for latest version.
Active Area Depth Sensor Location
Marking side
0.7mm
1. 1士0.1mm
1 2 3 4
1.95 士0.1mm
SIP-4
Dim Min Max
A 5.12 5.32
B 4.10 4.30
C 3.55 3.75
D 0.38 0.44
E 0.35 0.41
F 1.24 1.30
H 1.32 1.52
I 1.45 1.65
J 0.00 0.2
K 13.00 15.5
L 0.63 0.83
a1 3  5°
a2 4° 7°
All Dimensions in mm
A B
H
D
K
E
C
a1
a2
F
I
J
L
