AH276Q

COMPLEMENTARY OUTPUT HALL EFFECT LATCH

Description

AH276 are integrated Hall sensors with output drivers, mainly
designed for electronic commutation of brush-less DC Fan. This IC
internally includes the regulator, protecting diode, Hall plate, amplifier,
comparator, and a pair of complementary open-collector outputs (DO,
DOB)
.

While the magnetic flux density (B) is larger than operate point (Bop),
DO will turn on (low), and meanwhile DOB will turn off (high). Each
output is latched until B is lower than release point (Brp), and then
DO, DOB transfer each state.

For DC fan application, sometimes need to test power reverse
connection condition. Internal diode only protects chip-side but not for
coil-side. If necessary, add one external diode to block the reverse
current from coil-side.

Features

On-chip Hall sensor with two different sensitivity and hysteresis
settings for AH276

Built-in protecting diode only for chip reverse power connecting

-20°C to +85°C operating temperature

Lead Free Package: SIP-4L

SIP-4L: Available in “Green” Molding Compound (No Br, Sb)

Lead-Free Finish; RoHS Compliant (Notes 1 & 2)

Halogen and Antimony Free. “Green” Device (Note 3)

Pin Assignments

276

1 2

4

3

1 : Vcc

2 : DO

3 : DOB

4 : GND

( Top View )





Applications

Dual-coil Brush-less DC Motor

Dual-coil Brush-less DC Fan

 Revolution

Counting

 Speed

Measurement


Notes:

1. EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. All applicable RoHS exemptions applied.

2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"

and Lead-free.

3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and

<1000ppm antimony compounds.


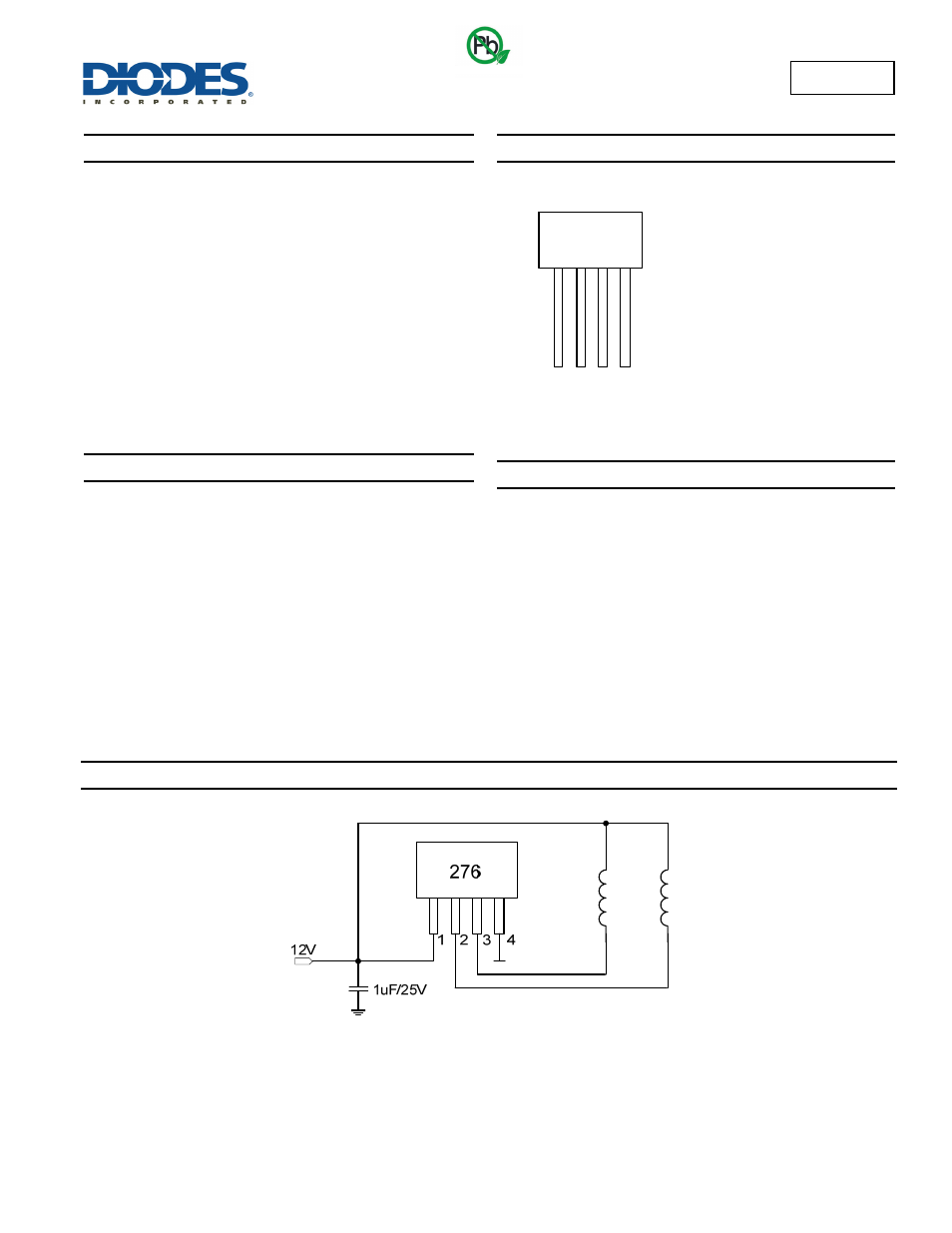

Typical Applications Circuit

Brush-less DC Fan
