AH276Q
Document number: DS31066 Rev. 6 - 2
4 of 6
www.diodes.com
September 2013
© Diodes Incorporated
AH276Q

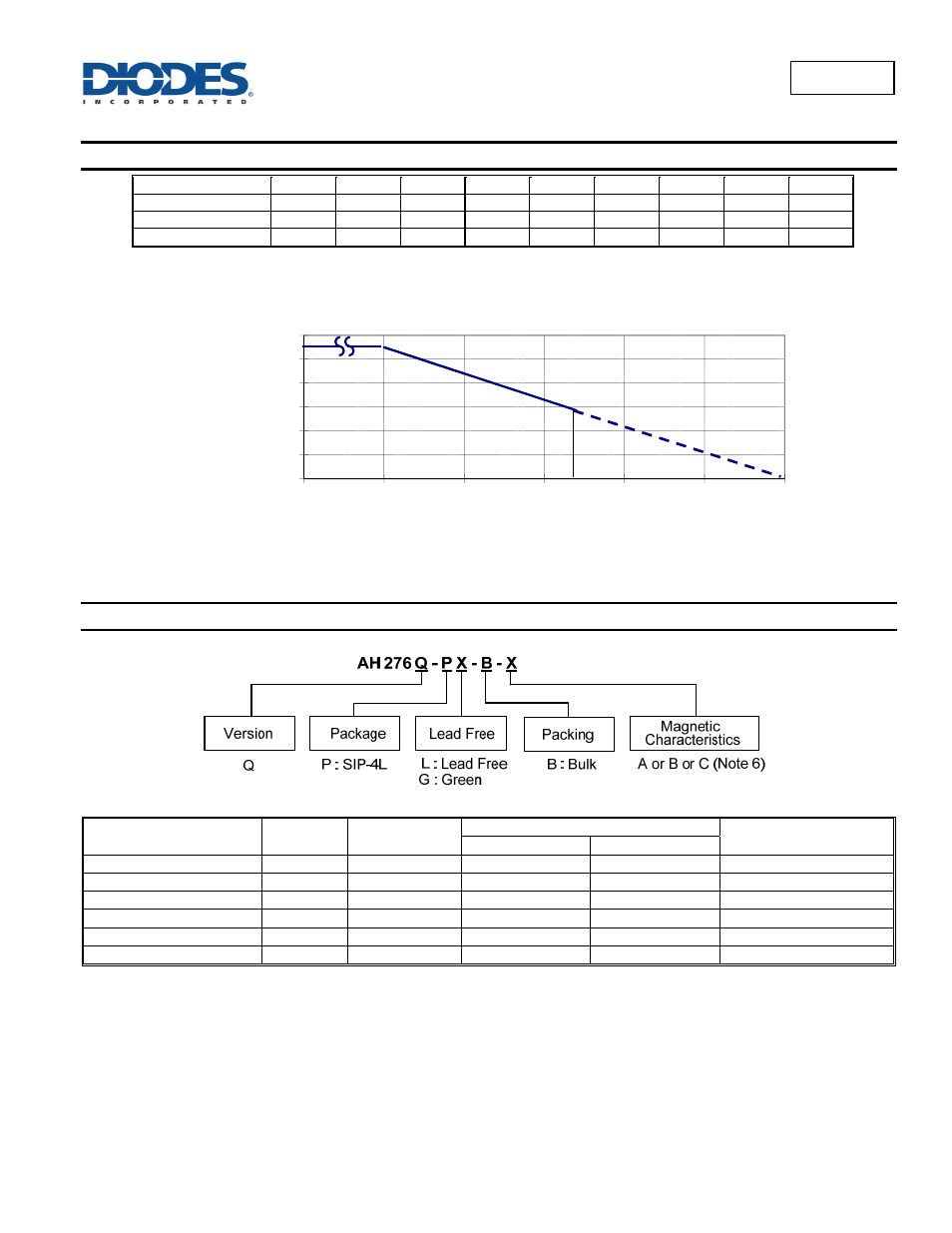

Performance Characteristics
T
A
( C) 25 50 60 70 80 85 90 95 100
P
D
(mW) 550 440 396 352 308 286 264 242 220
T
A
( C) 105 110 115 120 125 130 135 140 150
P
D
(mW) 198 176 154 132 110 88 66 44 0
Ordering Information
Part Number
Package
Code
Packaging
Bulk Magnetic
Characteristics Quantity Part Number Suffix
AH276Q-PL-B-A P SIP-4L 1000 -B A
AH276Q-PL-B-B P SIP-4L 1000 -B B
AH276Q-PL-B-C P SIP-4L 1000 -B C
AH276Q-PG-B-A P SIP-4L 1000 -B A
AH276Q-PG-B-B P SIP-4L 1000 -B B
AH276Q-PG-B-C P SIP-4L 1000 -B C
Note: 6. Please refer to page 3 (Magnetic Characteristics table).
0
100
200
300
400
500
600
0 25 50 75 100 125 150
P D (mW)
T A (°C)
Power Dissipation Curve
85
