AH2984
Performance Characteristics
(1) SIP-4
T A (
C) 25 50 60 70 80 85 90 95 100
P
D
(mW) 550 440 396 352 308 286 264 242 220
T A (
C) 105 110 115 120 125 130 135 140 150
P
D
(mW) 198 176 154 132 110 88 66 44 0
(2) SOT89-5
T A ( C) 25 50 60 70 75 80 85 90 95 100
P
D
(mW) 800 640 576 512 480 448 416 384 352 320
T A (
C) 105 110 115 120 125 130 135 140 145 150
P
D
(mW) 288 256 224 192 160 128 96 64 32 0
0
100
200
300
400
500
600
0 25 50 75 100 125 150
P
D
(mW)
T
A
( o C)

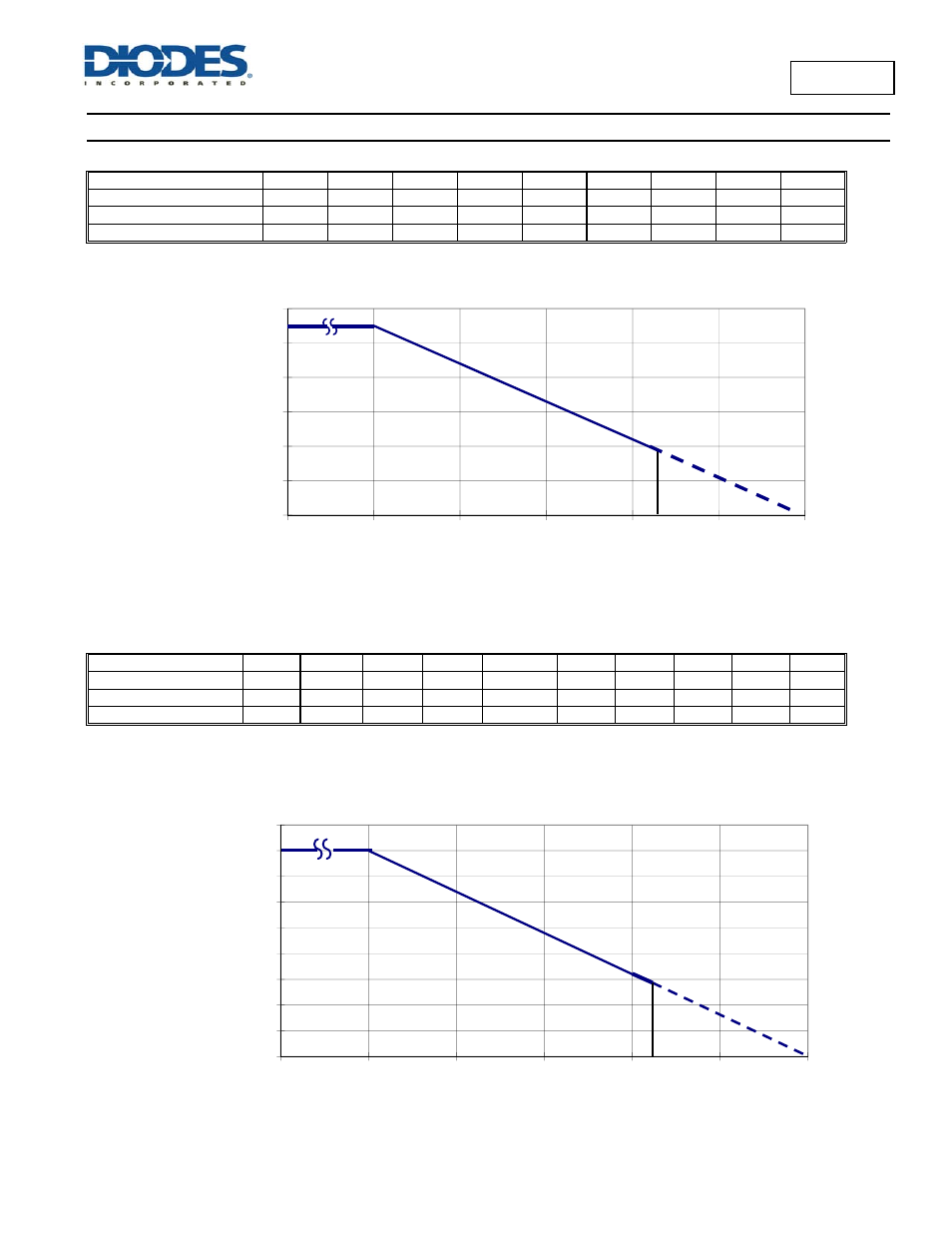

Power Dissipation Curve
0
100
200
300
400
500
600
700
800
900
0 25 50 75 100 125 150
P
D
(mW)
T
A
(°C)
Power Dissipation Curve
-40 105
-40
105
