Application Information (cont.)
AP8802 U-DFN3030-10 Minimum Recommended Inductor - LED Current 1A
8% Accuracy, <70°C Case Temperature
0.0 5.0 10.0 15.0 20.0 25.0 30.0 35.0 40.0 45.0
1
2
3
4
5
6
7
8
9
10
11
12
Supply Voltage (V)

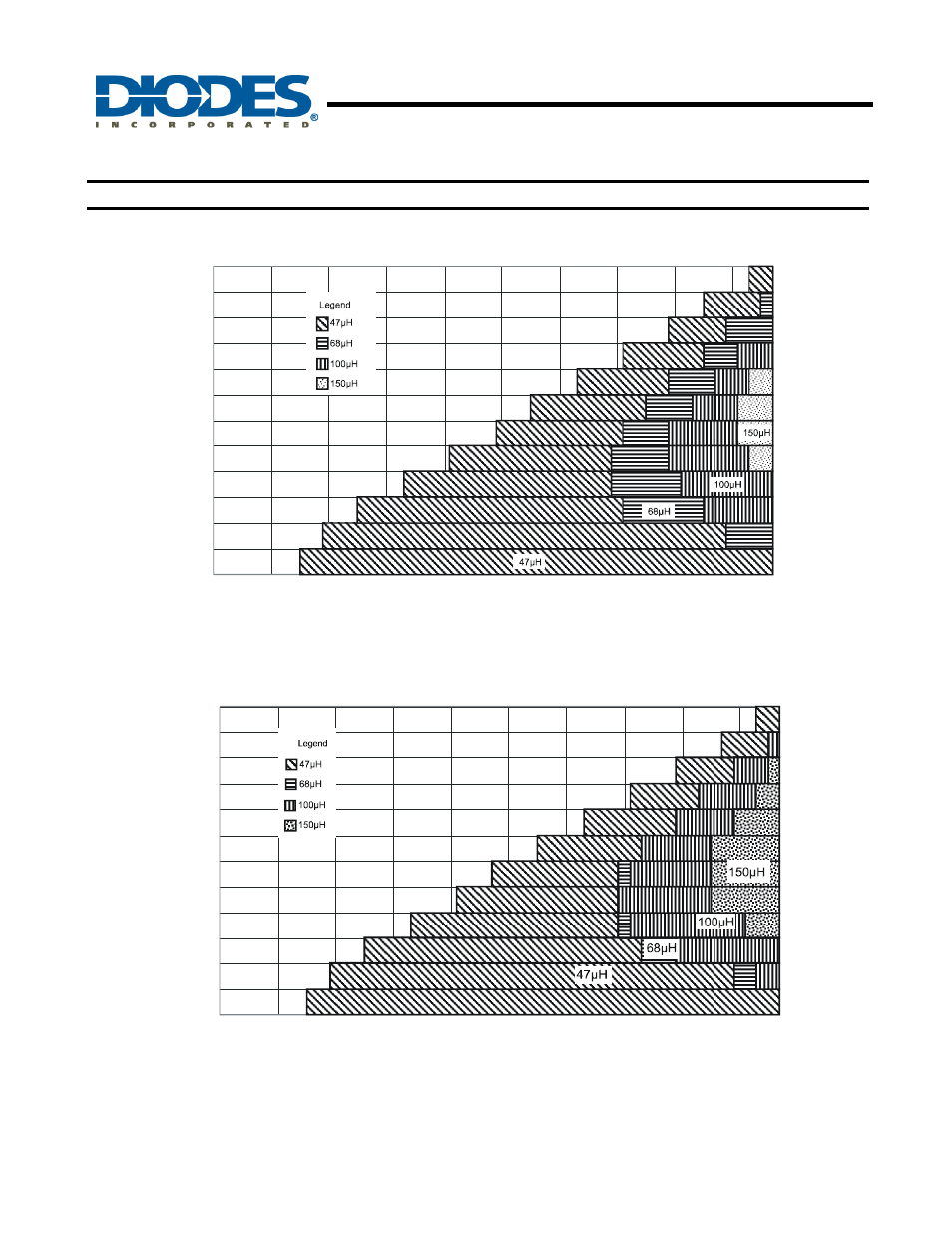

Figure. 16 U-DFN3030-10 Recommended Inductor with 1A LED Current
NUM
BER o
f L
E
Ds
AP8802 SO-8EP Minimum Recommended Inductor
8% Accuracy, <70°C Case Temperature, 1A Target Current
0.0 5.0 10.0 15.0 20.0 25.0 30.0 35.0 40.0 45.0
1
2
3
4
5
6
7
8
9
10
11
12
SUPPLY VOLTAGE (V)
Figure. 17 SO-8EP Recommended Inductor with 1A LED Current
NUM
BE
R o
f L
E
Ds
