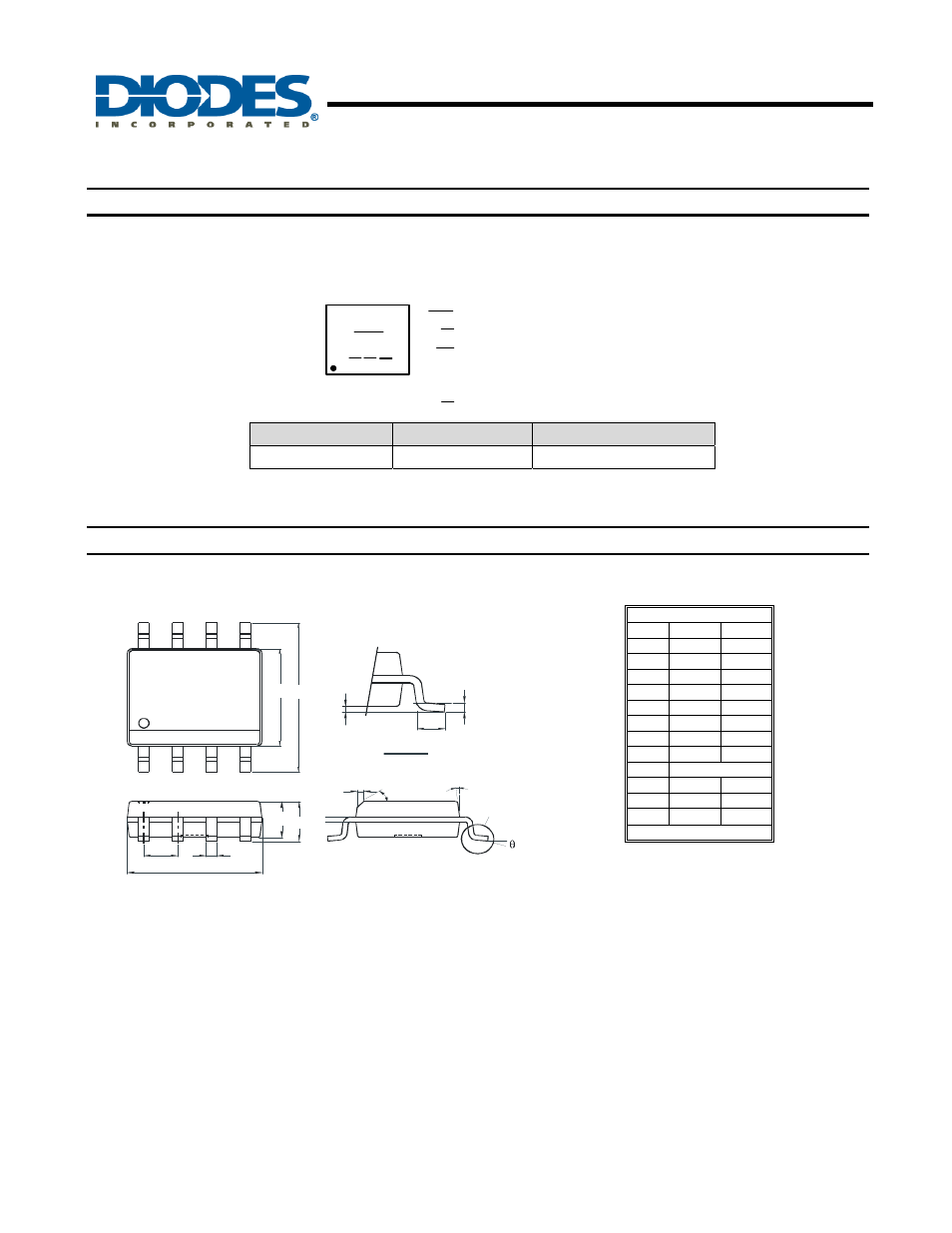

Marking Information (cont.)
(3) U-DFN3030-10
XX : Identification Code
( Top View )
X : A~Z : Green
X Y
X X
W
Y : Year : 0~9
W : Week : A~Z : 1~26 week;
a~z : 27~52 week; z represents
52 and 53 week
Part Number Package Identification Code
AP8802FNG-7 U-DFN3030-10 A5
Package Outline Dimensions (All Dimensions in mm)
(1) Package Type: SO-8
SO-8
Dim Min Max
A - 1.75
A1 0.10 0.20
A2 1.30 1.50
A3 0.15 0.25
b 0.3 0.5
D 4.85 4.95
E 5.90 6.10
E1 3.85 3.95
e 1.27 Typ
h - 0.35
L 0.62 0.82
θ
0
°
8
°
All Dimensions in mm
Gauge Plane
Seating Plane
Detail ‘A’
Detail ‘A’
E E1
h
L
D
e b
A2
A1
A
45 °
7 °~ 9 °
A3
