AL8808

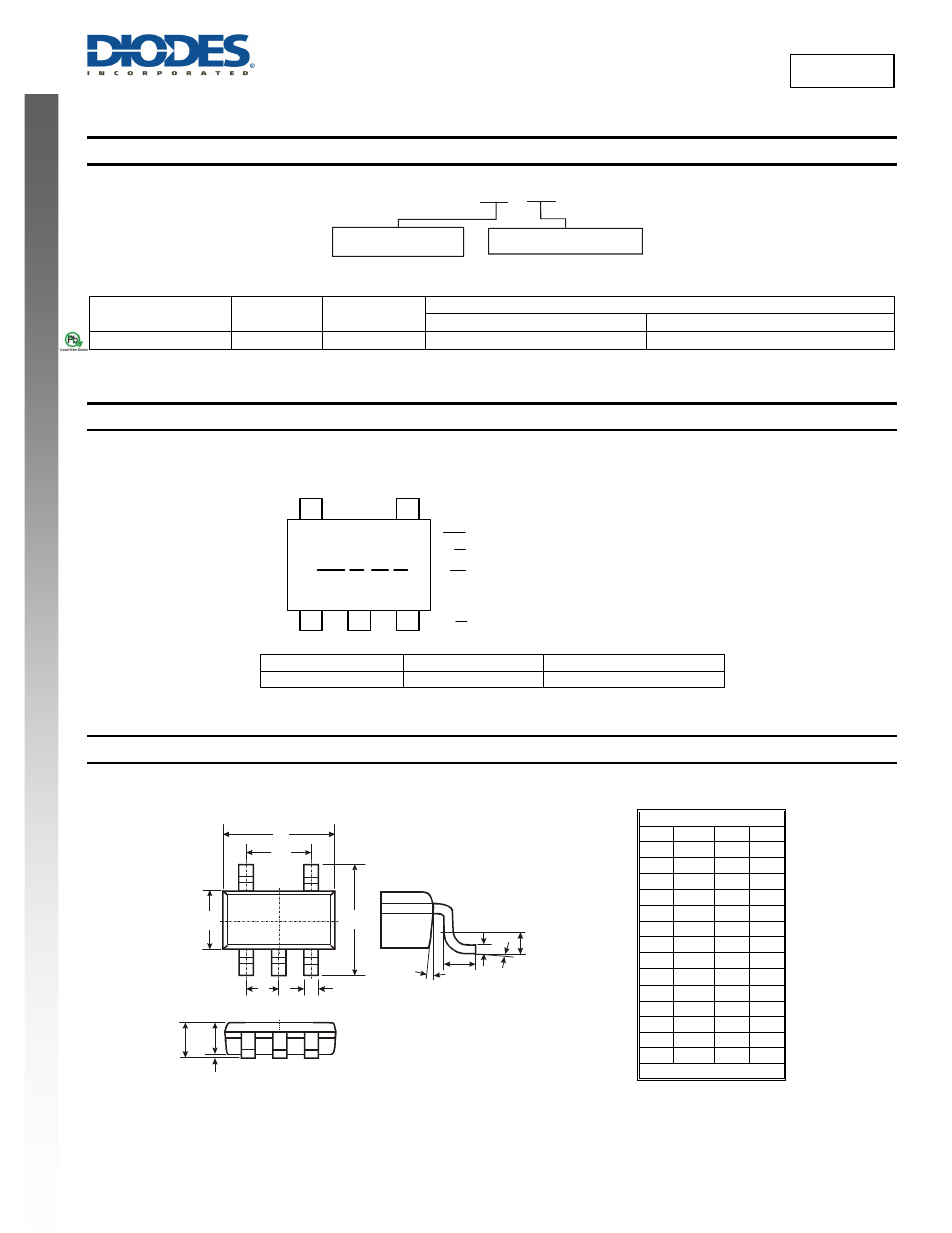

Ordering Information
Part Number Package Code Packaging
7” Tape and Reel
Quantity Part Number Suffix
AL8808WT-7 WT TSOT25 3000/Tape & Reel -7
Marking Information
TSOT25
1 2 3
5 7 4
XX Y W X
(Top View)
XX : Identification code
W : Week : A~Z : 1~26 week;
X : A~Z : Internal code
Y : Year 0~9
a~z : 27~52 week; z represents
52 and 53 week
Part Number Package Identification Code
AL8808WT-7 TSOT25 B9
Package Outline Dimensions
(All dimensions in mm.)
Please see AP02002 at http://www.diodes.com/datasheets/ap02002.pdf for latest version.
AL8808 XX XX -
WT : TSOT25 7 : 7” Tape & Reel
Packing Package
TSOT25
Dim Min Max Typ
A − 1.00 −
A1 0.01 0.10 −
A2 0.84 0.90 −
D − − 2.90
E − − 2.80
E1 − − 1.60
b 0.30 0.45 −
c 0.12 0.20 −
e − − 0.95
e1 − − 1.90
L 0.30 0.50
L2 − − 0.25
θ 0° 8° 4°
θ1 4° 12° −
All Dimensions in mm
c
A1
L
E1 E
A2
D
e1
e
5x b
θ
4x 1 θ
L2
A
