AP7175
Electrical Characteristics
(cont.)
(V
CNTL
= 5V, V
IN
= 1.8V, V
OUT
= 1.2V and T
A
= -40 to +85°C, @T
A
= +25°C, unless otherwise specified.)
Symbol Parameter Test Conditions
AP7175
Unit
Min Typ Max
THERMAL CHARACTERISTIC
θ
JA
Thermal Resistance Junction-to-Ambient
SO-8EP (Note 6) 70 °C/W
MSOP-8EP (Note 7) 80 °C/W
θ
JC
Thermal Resistance Junction-to-Ambient
SO-8EP (Note 6) 30 °C/W
MSOP-8EP (Note 7) 30 °C/W
Notes: 6. Device mounted on 2"*2" FR-4 substrate PC board, 2oz copper, with minimum recommended pad on top layer and thermal vias to bottom layer ground
plane.
7. Device mounted on 2"*2" FR-4 substrate PC board, 2oz copper,with minimum recommended pad layout.

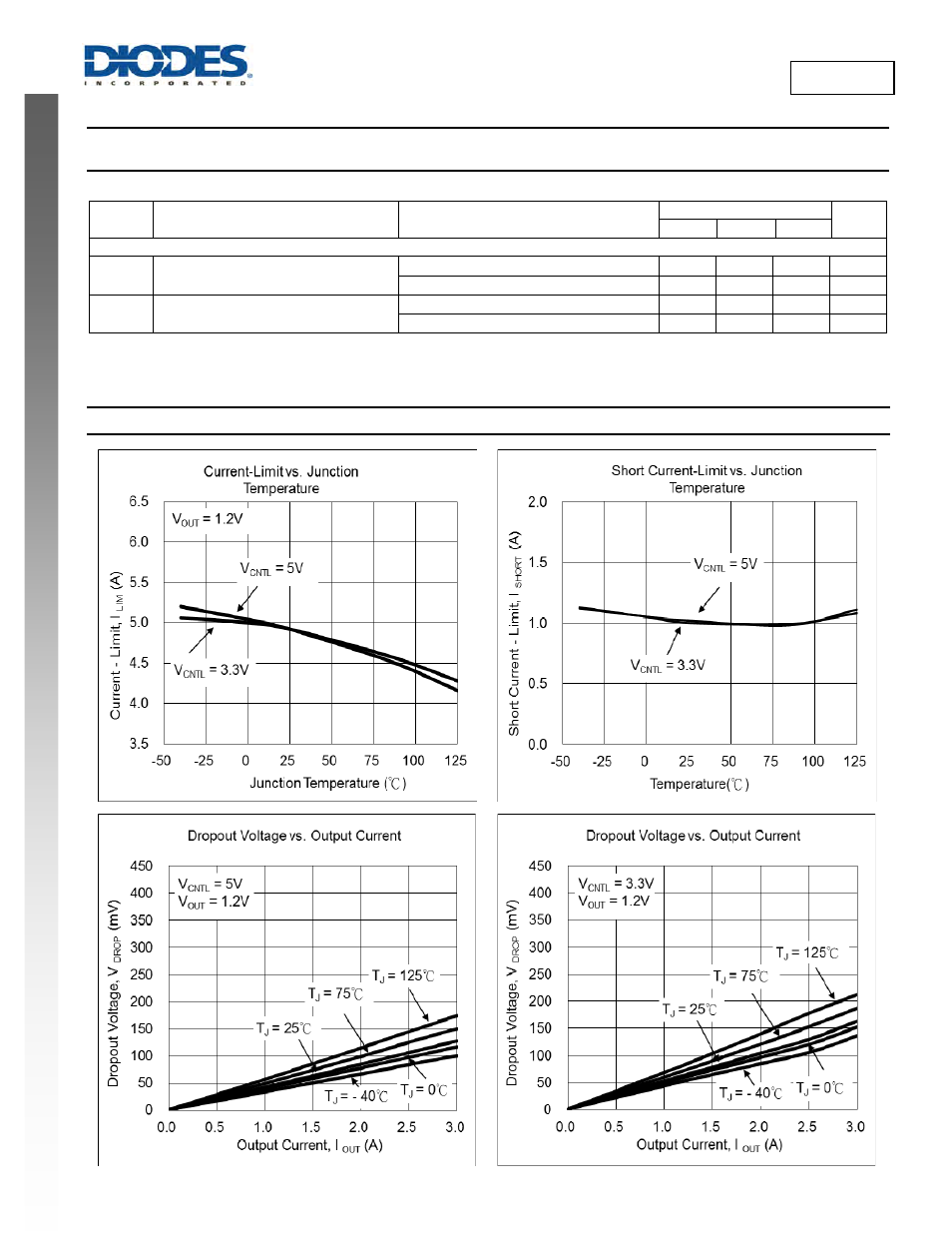

Typical Characteristics
