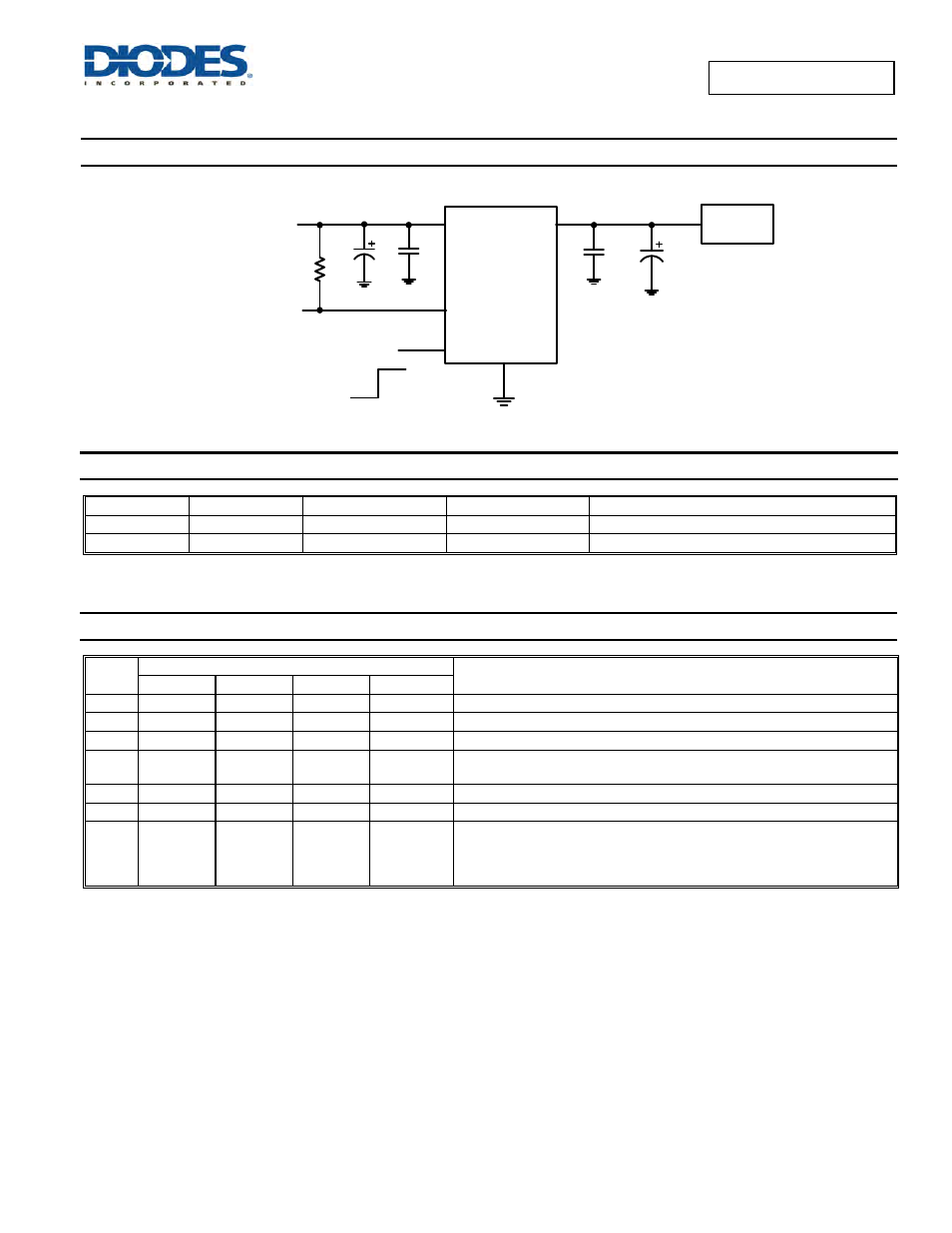

AP2141/ AP2151
Typical Applications Circuit
0.1uF
IN
GND
EN
OUT
ON
120uF
Power Supply
2.7V to 5.5V
0.1uF
OFF
FLG
Load
10k
10uF
AP2151 Enable Active High
Available Options
Part Number
Channel
Enable Pin (EN)
Current Limit (typical)
Recommended Maximum Continuous Load Current
AP2141 1
Active
Low
0.8A
0.5A
AP2151 1 Active
High
0.8A
0.5A
Pin Descriptions
Pin
Name
Pin Number
Function
SO-8 MSOP-8EP
SOT25
U-DFN2018-6
GND
1 1 2 1
Ground
IN
2, 3
2, 3
5
2
Voltage Input Pin (all IN pins must be tied together externally).
EN
4
4
4
3
Enable Input. Active Low (AP2141) or Active High (AP2151).
FLG
5 5 3 4
Over-Current and Over-Temperature Fault Report.
Open-Drain Flag is Active Low When Triggered
OUT
6, 7
6, 7
1
5, 6
Voltage Output Pin (all OUT pins must be tied together externally).
NC
8
8
N/A
N/A
No internal connection; recommend tie to OUT pins
Exposed
Pad
—
Exposed
Pad
—
Exposed
Pad
Exposed Pad.
It should be externally connected to GND plane and thermal mass for
enhanced thermal impedance.
It should not be used as electrical ground conduction path.
