Diodes AP2141/ AP2151 User Manual
Description, Features, Applications
AP2141/ AP2151
Document number: DS31562 Rev. 7 - 2
1 of 17
March 2013
© Diodes Incorporated
AP2141/ AP2151
0.5A SINGLE CHANNEL CURRENT-LIMITED POWER SWITCH
Description
The AP2141 and AP2151 are integrated high-side power switches
optimized for Universal Serial Bus (USB) and other hot-swap
applications. The family of devices complies with USB 2.0 and
available with both polarities of Enable input. They offer current and
thermal limiting and short circuit protection as well as controlled rise
time and under-voltage lockout functionality. A 7ms deglitch capability
on the open-drain Flag output prevents false over-current reporting
and does not require any external components.
All devices are available in SO-8, MSOP-8EP, SOT25, and
U-DFN2018-6 packages
Features
Single USB Port Power Switches
Over-Current and Thermal Protection
0.8A Accurate Current Limiting
Reverse
Current
Blocking
95mΩ On-Resistance
Input Voltage Range: 2.7V - 5.5V
0.6ms Typical Rise Time
Very Low Shutdown Current: 1µA (max)
Fault Report (FLG) with Blanking Time (7ms typ)
ESD Protection: 4kV HBM, 400V MM
Active High (AP2151) or Active Low (AP2141) Enable
Ambient Temperature Range -40°C to +85°C
SOT25, SO-8, MSOP-8EP (Exposed Pad), and U-DFN2018-6:
Available in “Green” Molding Compound (No Br, Sb)
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
UL Recognized, File Number E322375
IEC60950-1 CB Scheme Certified
Applications
Consumer Electronics – LCD TV & Monitor, Game Machines
Communications – Set-Top-Box, GPS, Smartphone
Computing – Laptop, Desktop, Servers, Printers, Docking
Station, HUB

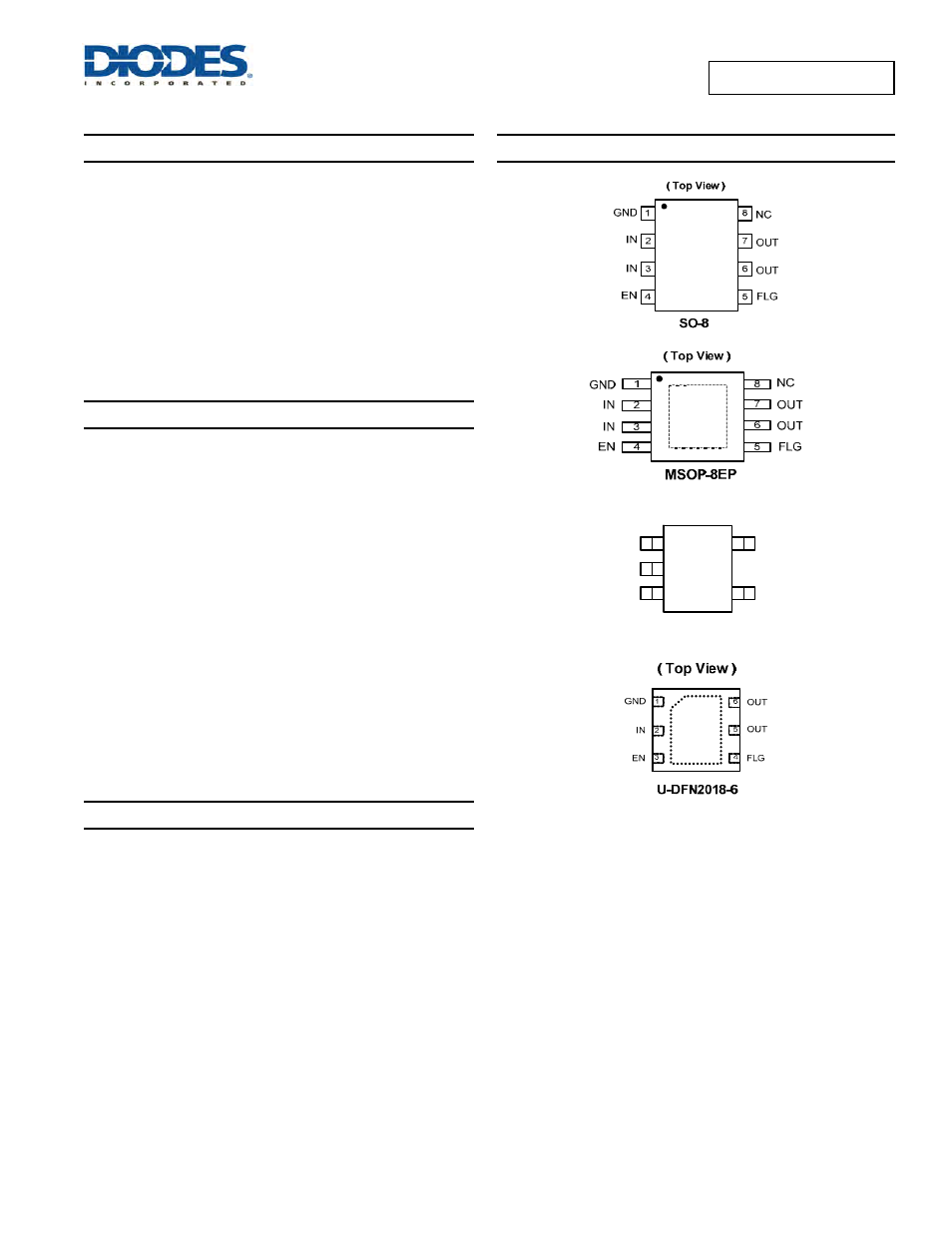

Pin Assignments
EN
OUT
GND
IN
FLG
1
2
3
5
4
SOT25
( Top View )
Notes:
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. Se information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br +
Cl) and <1000ppm antimony compounds.
