AP2101/AP2111
Available Options
Part Number
Channel
Enable Pin
(EN)
Current Limit
(Typical)
Recommended Maximum
Continuous Load Current
AP2101 1 Active
Low
2.45A
2.0A
AP2111 1 Active
High
2.45A
2.0A
Pin Descriptions
Pin
Name
Pin Number
Functions
SO-8 MSOP-8EP
GND 1 1 Ground
IN
2, 3
2, 3
Voltage input pin (all IN pins must be tied together externally)
EN
4
4
Enable input, active low (AP2101) or active high (AP2111)
FLG
5
5
Over-current and over-temperature fault report; open-drain flag is active low when triggered
OUT
6, 7
6, 7
Voltage output pin (all OUT pins must be tied together externally)
NC
8
8
No internal connection; recommend tie to OUT pins
Exposed tab
—
Exposed tab
Exposed pad.
It should be connected to GND and thermal mass for enhanced thermal impedance.
It should not be used as electrical ground conduction path.

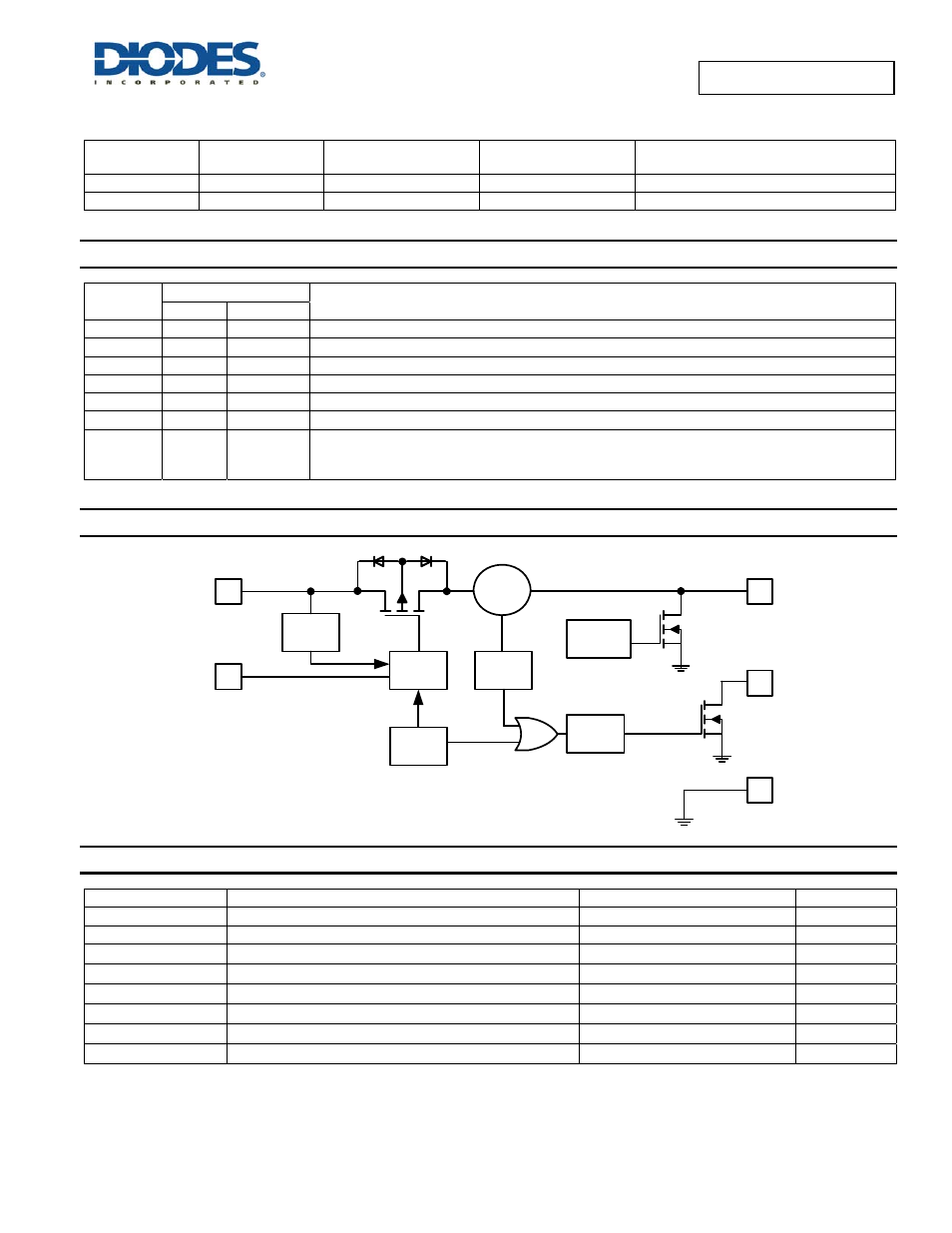

Functional Block Diagram
Thermal
Sense
FLG
OUT
GND
IN
EN
UVLO
Current
Limit
Current
Sense
Deglitch
Discharge
Control
Driver
Absolute Maximum Ratings
(@T
A
= +25°C, unless otherwise specified.)
Symbol Parameter
Ratings
Units
ESD HBM
Human Body Model ESD Protection
4
kV
ESD MM
Machine Model ESD Protection
300
V
V
IN
Input Voltage
6.5
V
V
OUT
Output Voltage
V
IN
+0.3
V
V
EN ,
V
FLG
Enable Voltage
6.5
V
I
LOAD
Maximum Continuous Load Current
Internal Limited
A
T
J(MAX)
Maximum Junction Temperature
150
°C
T
ST
Storage Temperature Range (Note 4)
-65 to +150
°C
Caution: Stresses greater than the 'Absolute Maximum Ratings' specified above, may cause permanent damage to the device. These are stress ratings only;
functional operation of the device at these or any other conditions exceeding those indicated in this specification is not implied. Device reliability may be
affected by exposure to absolute maximum rating conditions for extended periods of time.
Semiconductor devices are ESD sensitive and may be damaged by exposure to ESD events. Suitable ESD precautions should be taken when handling
and transporting these devices
Note:
4. UL Recognized Rating from -30°C to 70°C (Diodes qualified
T
ST
from -65°C to 150°C)
