Diodes AP2101/AP2111 User Manual
Description, Features, Pin assignments

AP2101/AP2111
Document number: DS32015 Rev. 3 - 2
1 of 14
January 2013
© Diodes Incorporated
AP2101/AP2111
2A SINGLE CHANNEL CURRENT-LIMITED POWER SWITCH
Description
The AP2101 and AP2111 are integrated high-side power switches
optimized for Universal Serial Bus (USB) and other hot-swap
applications. The family of devices complies with USB 2.0 and
available with both polarities of Enable input. They offer current and
thermal limiting and short circuit protection as well as controlled rise
time, under-voltage lockout and auto-discharge functionalities. A
7ms deglitch capability on the open-drain Flag output prevents false
over-current reporting and does not require any external components.
All devices are available in SO-8 and MSOP-8EP packages.
Features
•
Single USB port power switches with auto-discharge
•
Short-circuit current and thermal protection
•
2.45A accurate current limiting
•
Fast transient response time: 5μs
• 90m
Ω
on-resistance
• Reverse
Current
Blocking
•
Input voltage range: 2.7V – 5.5V
•
0.6ms typical rise time
•
Very low shutdown current: 1μA (max)
•
Fault report (FLG) with blanking time (7ms typ)
•
ESD protection: 4kV HBM, 300V MM
•
Active low (AP2101) or active high (AP2111) enable
•
Ambient temperature range: -35°C to 85°C
•
SO-8 and MSOP-8EP (Exposed Pad): Available in “Green”
Molding Compound (No Br, Sb)
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
•
UL Recognized, File Number E322375
•
IEC60950-1 CB Scheme Certified

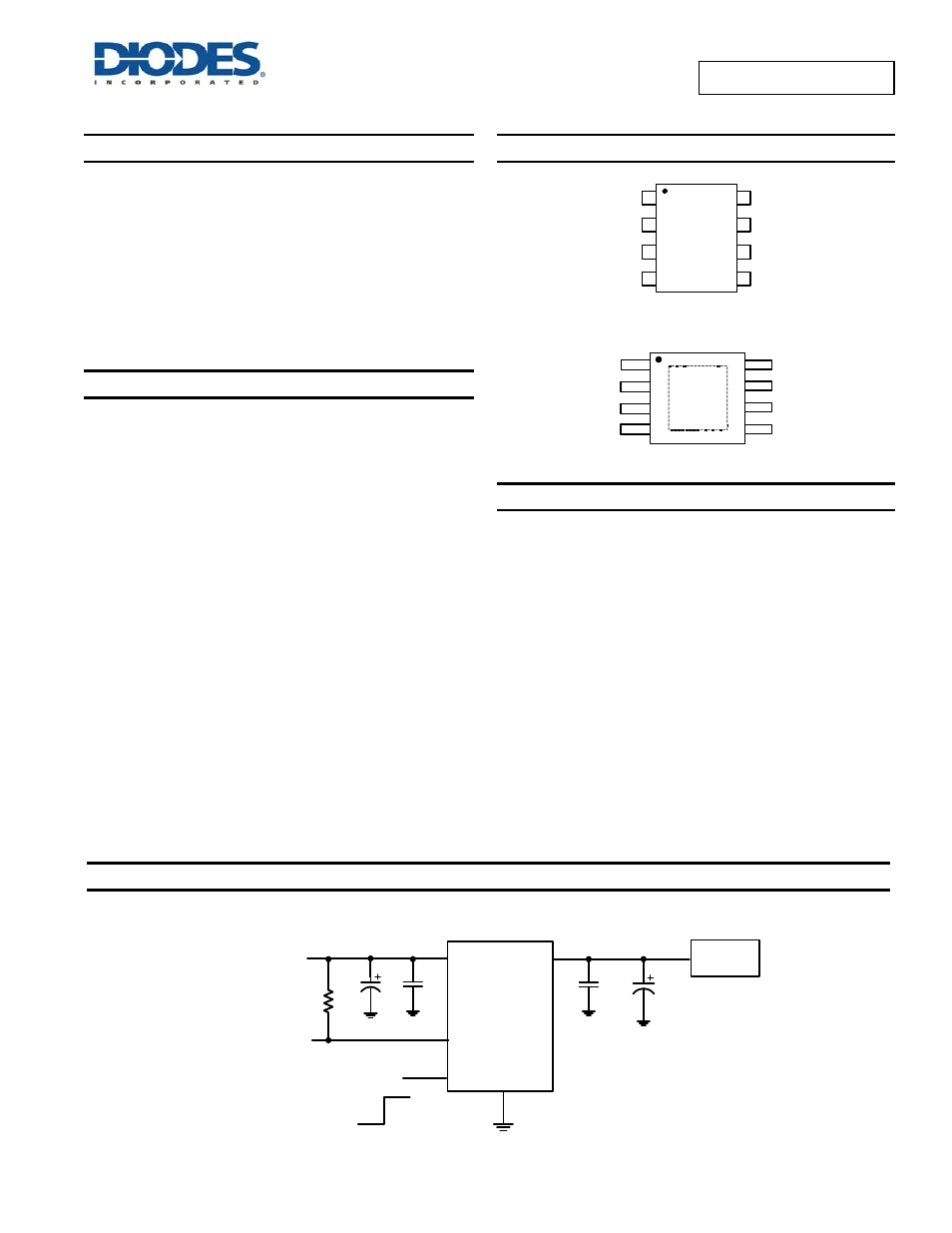

Pin Assignments
SO-8
( Top View )
1
2
3
4
8
7
6
5
NC
OUT
FLG
OUT
GND
EN
IN
IN
MSOP-8EP
1
2
3
4
8
7
6
5
NC
OUT
FLG
OUT
GND
EN
IN
IN
( Top View )
Applications
•
Consumer electronics – LCD TV & Monitor, Game Machines
•
Communications – Set-Top-Box, GPS, Smartphone
•
Computing – Laptop, Desktop, Servers, Printers, Docking Station,
HUB
Notes:
1. EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. All applicable RoHS exemptions applied.
2. S
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
Typical Applications Circuit
0.1uF
IN
GND
EN
OUT
ON
120uF
Power Supply
2.7V to 5.5V
0.1uF
OFF
FLG
Load
10k
10uF
AP2111 Enable Active High
