AP2142/ AP2152

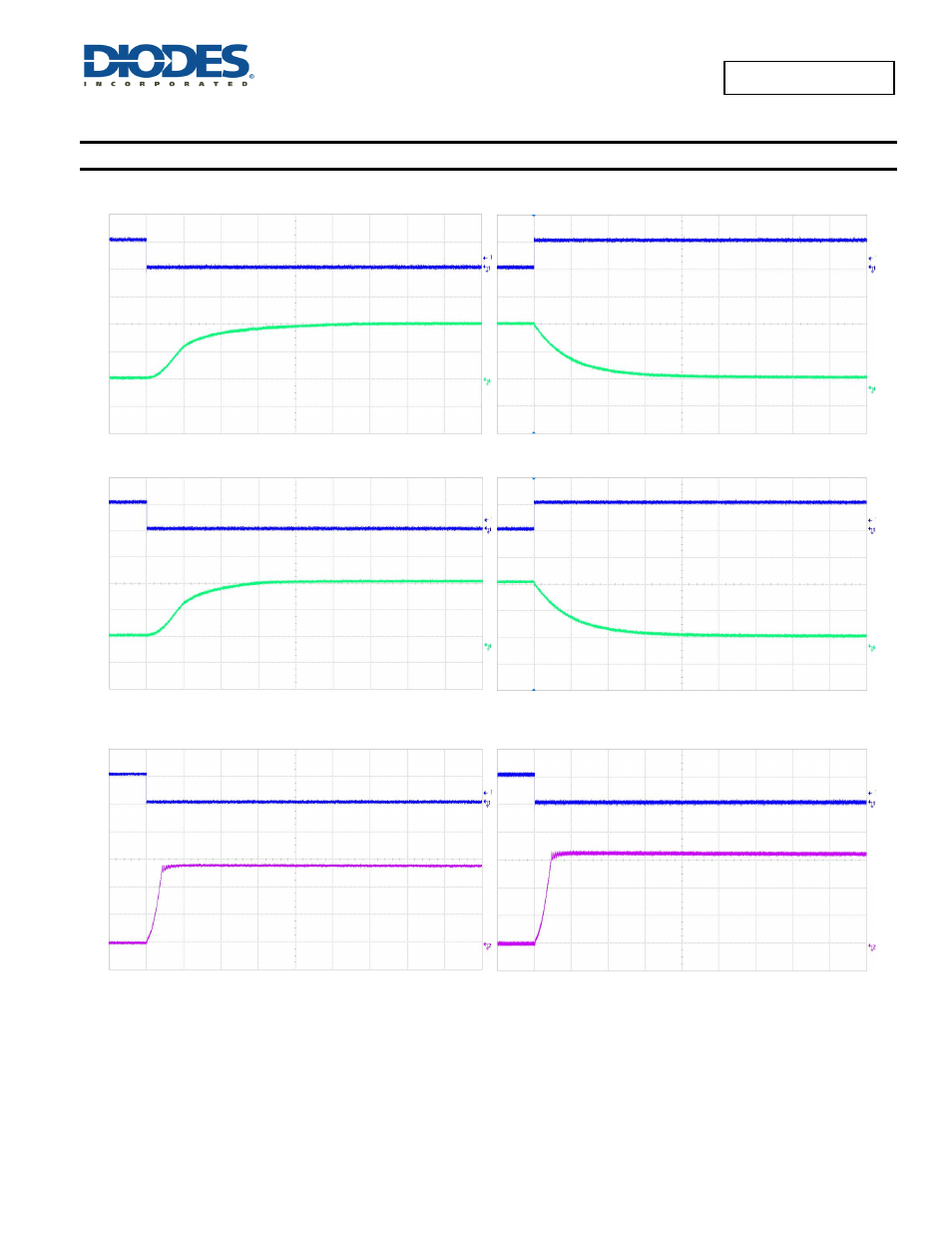

Typical Performance Characteristics
(cont.)
Channel 1 Turn-On Delay and Rise Time
500µs/div
Channel 1 Turn-Off Delay and Fall Time
500µs/div
Channel 2 Turn-On Delay and Rise Time
500µs/div
Channel 2 Turn-Off Delay and Fall Time
500µs/div
Channel 1 Short Circuit Current,
Device Enabled Into Short
500µs/div
Channel 2 Short Circuit Current,
Device Enabled Into Short
500µs/div
Iout 1
200mA/div
Ven 1
5V/div
VIN = 5V
TA = +25°C
CL = 22µF
Iout 2
200mA/div
Ven 2
5V/div
VIN = 5V
TA = +25°C
CL = 22µF
Vout 1
2V/div
Ven 1
5V/div
CL = 100µF
TA = +25°C
RL = 10Ω
Vout 1
2V/div
Ven 1
5V/div
CL = 100µF
TA = +25°C
RL = 10Ω
Vout 2
2V/div
Ven 2
5V/div
CL = 100µF
TA = +25°C
RL = 10Ω
Vout 2
2V/div
Ven 2
5V/div
CL = 100µF
TA = +25°C
RL = 10Ω
