AP2142/ AP2152
Typical Performance Characteristics
V
EN
90%
V
OUT
T
D(ON)
10%
T
D(OFF)
50% 50%
T
R
10%
90%
T
F
V
EN
90%
V
OUT
T
D(ON)
10%
T
D(OFF)
50% 50%
T
R
10%
90%
T
F

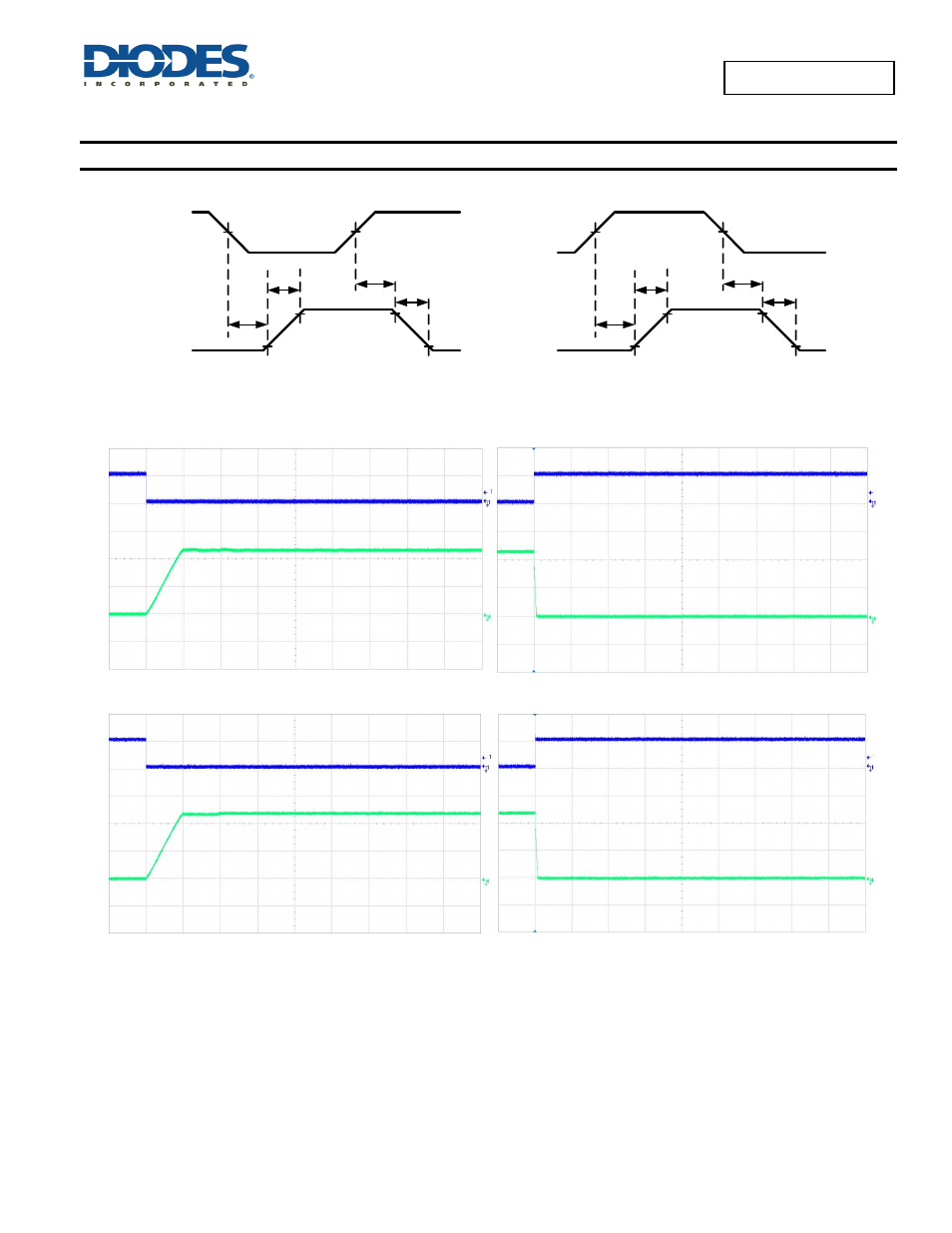

Figure 1. Voltage Waveforms: AP2142 (left), AP2152 (right)
All Enable Plots are for AP2142 Active Low
Channel 1 Turn-On Delay and Rise Time
500µs/div
Channel 1 Turn-Off Delay and Fall Time
500µs/div
Channel 2 Turn-On Delay and Rise Time
500µs/div
Channel 2 Turn-Off Delay and Fall Time
500µs/div
Vout 1
2V/div
Ven 1
5V/div
CL = 1µF
TA = +25°C
RL = 10Ω
Vout 1
2V/div
Ven 1
5V/div
CL = 1µF
TA = +25°C
RL = 10Ω
Vout 2
2V/div
Ven 2
5V/div
CL=1µF
TA = +25°C
RL = 10Ω
Vout 2
2V/div
Ven 2
5V/div
CL = 1µF
TA = +25°C
RL = 10Ω
