AP2142/ AP2152
Document number: DS31571 Rev. 6 - 2
1 of 17
www.diodes.com
January 2013
© Diodes Incorporated
AP2142/ AP2152
0.5A DUAL CHANNEL CURRENT-LIMITED POWER SWITCH
Description
The AP2142 and AP2152 are integrated high-side power switches
optimized for Universal Serial Bus (USB) and other hot-swap
applications. The family of devices complies with USB 2.0 and
available with both polarities of Enable input. They offer current and
thermal limiting and short circuit protection as well as controlled rise
time and under-voltage lockout functionality. A 7ms deglitch capability
on the open-drain Flag output prevents false over-current reporting
and does not require any external components.
All devices are available in SO-8 and MSOP-8EP packages.
Features
• Dual USB port power switches
• Over-current and thermal protection
• 0.8A accurate current limiting
• Reverse Current Blocking
• 115mΩ on-resistance
•
Input voltage range: 2.7V – 5.5V
• 0.6ms typical rise time
• Very low shutdown current: 1uA (max)
• Fault report (FLG) with blanking time (7ms typ)
• ESD protection: 4.5KV HBM, 350V MM
• Active high (AP2152) or active low (AP2142) enable
• Ambient temperature range -40ºC to 85°C
• SO-8 and MSOP-8EP (Exposed Pad): Available in “Green”
Molding Compound (No Br, Sb)
ƒ
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
ƒ Halogen and Antimony Free. “Green” Device (Note 3)
• UL Recognized, File Number E322375
• IEC60950-1 CB Scheme Certified

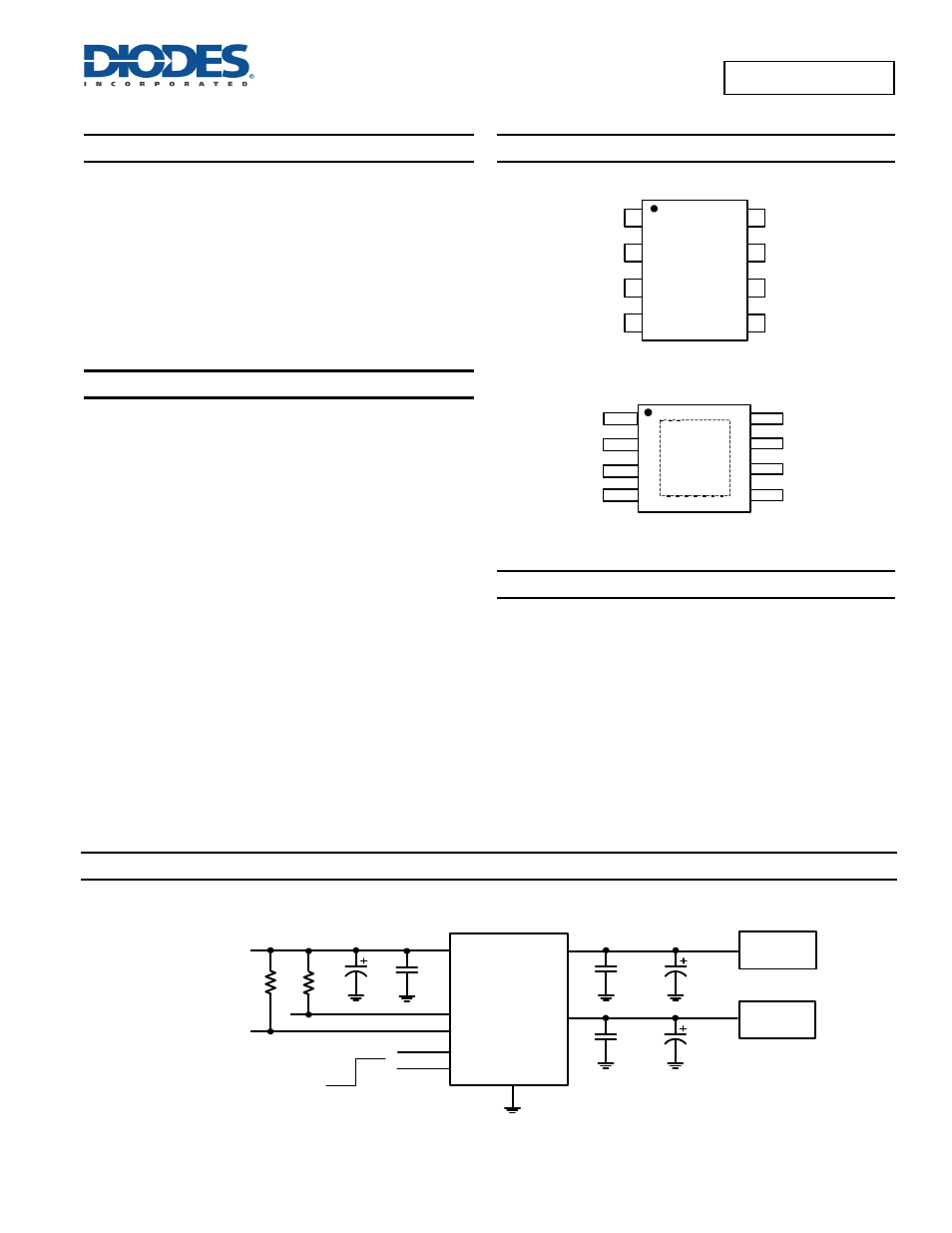

Pin Assignments
SO-8
( Top View )
1
2
3
4
8
7
6
5
NC
OUT
FLG
OUT
GND
EN
IN
IN
MSOP-8EP
1
2
3
4
8
7
6
5
NC
OUT
FLG
OUT
GND
EN
IN
IN
( Top View )
Applications
• Consumer electronics – LCD TV & Monitor, Game Machines
• Communications – Set-Top-Box, GPS, Smartphone
• Computing – Laptop, Desktop, Servers, Printers, Docking Station,
HUB
Notes: 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. See http://www.diodes.com for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
Typical Applications Circuit
0.1uF
IN
GND
EN2
OUT1
ON
68uF
Power Supply
2.7V to 5.5V
0.1uF
OFF
FLG1
Load
10k 10k
FLG2
EN1
OUT2
68uF 0.1uF
Load
10uF
AP2152 Enable Active High
