AP6015
High Efficiency Step-Down Low Power DC-DC Converter
AP6015 Rev. 3 2 of 18 FEBRUARY 2009
www.diodes.com © Diodes Incorporated

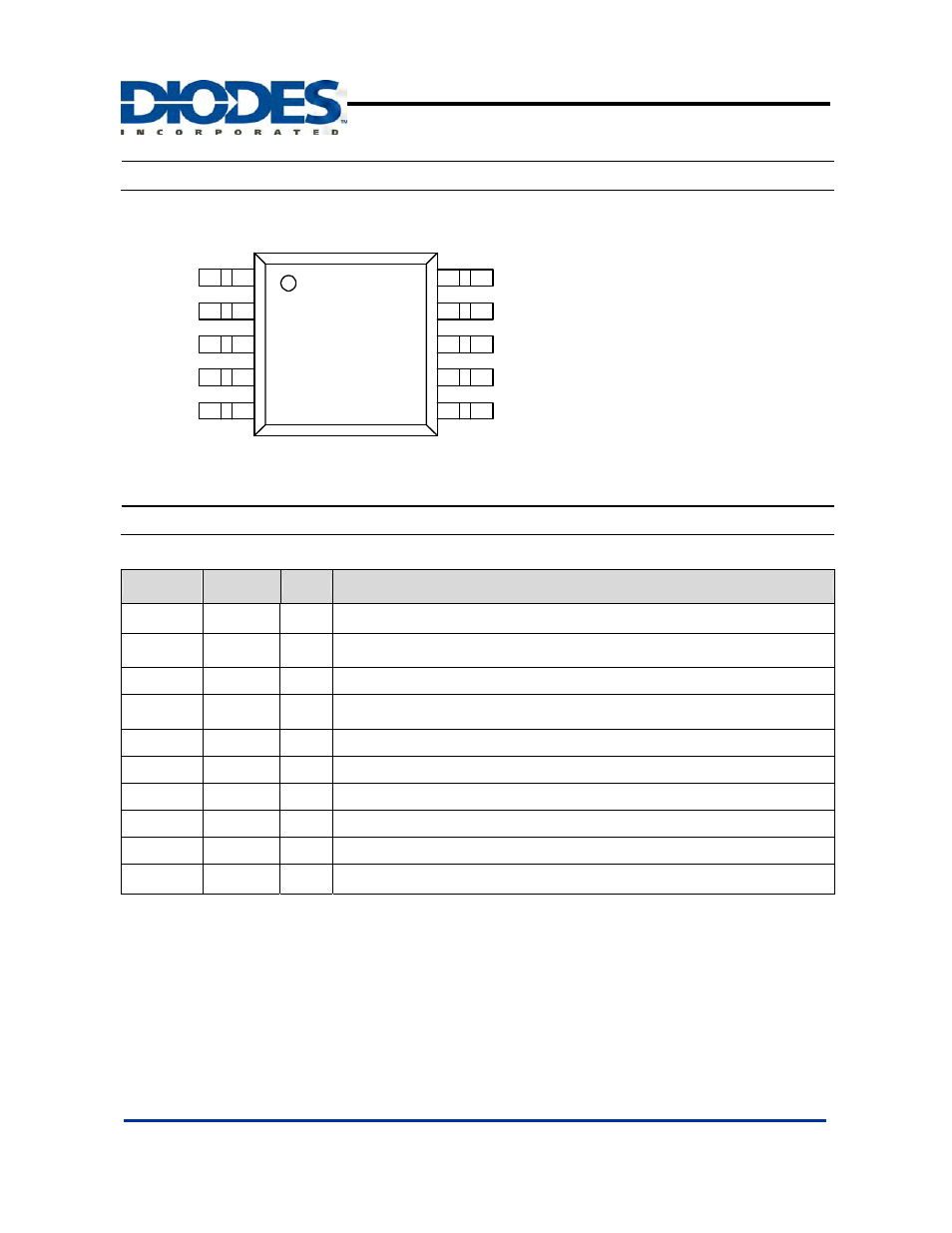

Pin Assignment
( Top View )
MSOP-10L
PG
FB/Vout
NC
CC
PVCC
VCC
GND
PGND
LX
EN
1
2
3
4
5 6
7
8
9
10
Pin Descriptions
Pin Name Pin NO. I/O Description
PVCC 1 I Supply voltage input
VCC 2
Supply bypass pin. A 1 μF coupling capacitor should be connected as close
as possible to this pin.
GND 3 Ground
PG 4 O
Power good comparator output. A pull-up resistor should be connected
between PG and V
O
.
FB 5 I Feedback pin for the fixed output voltage option.
CC 6 I Compensation pin
NC 7 NC No connect
EN 8 I Enable.Pin, H: Enable. L:shutdown
LX 9 I/O Connect the inductor to this pin.
PGND 10 Power ground
