BSP75N
Issue 4 - September 2006 2 www.zetex.com
© Zetex Semiconductors plc 2006

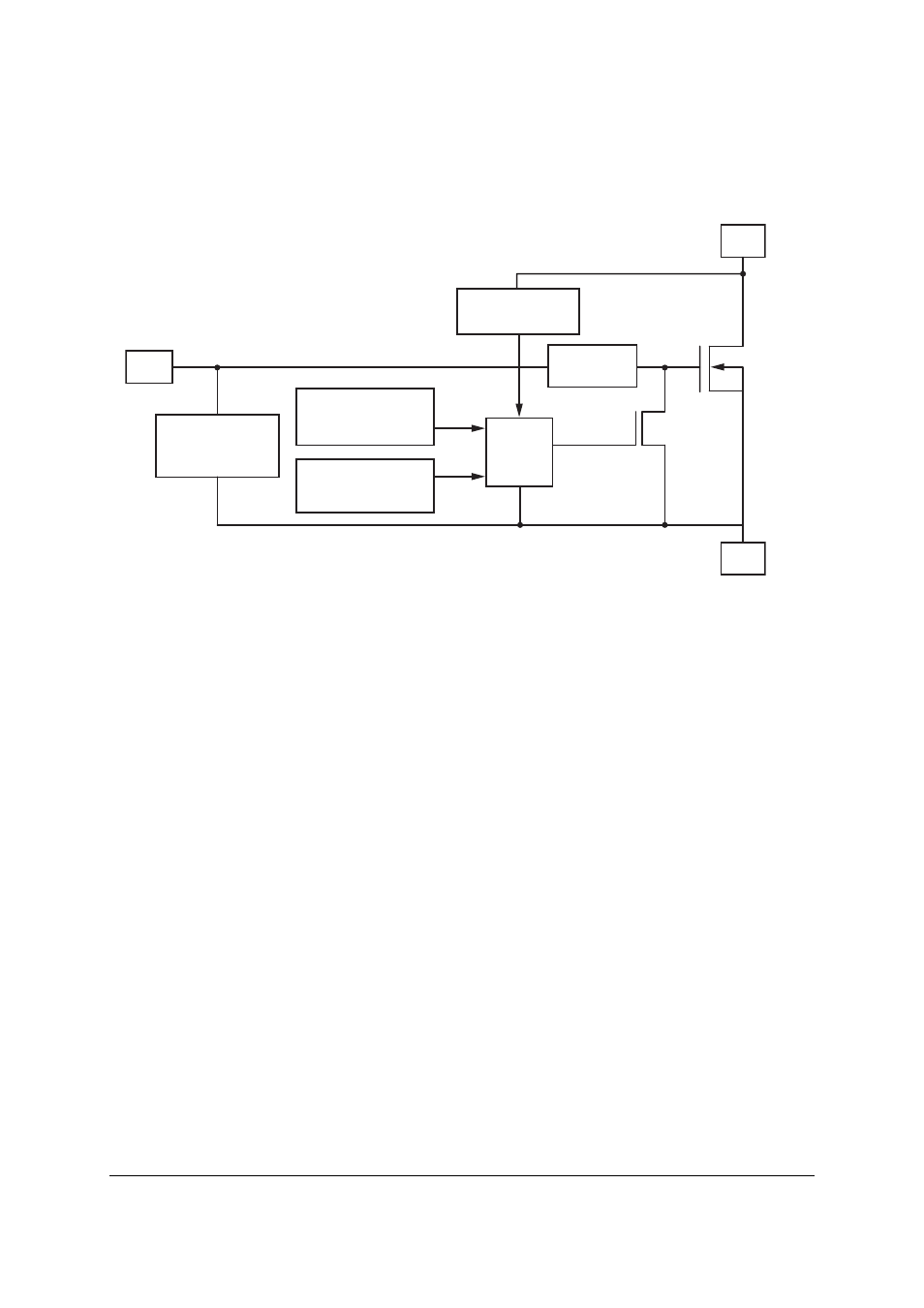

Functional block diagram
Applications
• Especially suited for loads with a high in-rush current such as lamps and motors.
• All types of resistive, inductive and capacitive loads in switching applications.
• ␮C compatible power switch for 12V and 24V DC applications.
• Automotive rated.
• Replaces electromechanical relays and discrete circuits.
Linear mode capability - the current-limiting protection circuitry is designed to de-activate at low
Vds, in order not to compromise the load current during normal operation. The design maximum
DC operating current is therefore determined by the thermal capability of the package/board
combination, rather than by the protection circuitry. This does not compromise the products
ability to self protect itself at low V
DS
.
S
Over voltage
protection
Over current
protection
Over temperature
protection
Logic
Human body
ESD protection
D
IN
dV/dt
limitation
