Issue 4 - September 2006

1

www.zetex.com

© Zetex Semiconductors plc 2006

BSP75N
60V self-protected low-side Intellifet

TM

MOSFET switch

Summary

Continuous drain source voltage

V

DS

=60V

On-state resistance

500m

Maximum nominal load current

(a)

1.1A (V

IN

= 5V)

Minimum nominal load current

(c)

0.7A (V

IN

= 5V)

Clamping energy

550mJ

Ordering information

Device marking

BSP75N

Description

Self-protected low side MOSFET. Monolithic over temperature, over
current, over voltage (active clamp) and ESD protected logic level
functionality. Intended as a general purpose switch.

Features

Short circuit protection with auto restart

Over-voltage protection (active clamp)

Thermal shutdown with auto restart

Over-current protection

Input protection (ESD)

High continuous current rating

Load dump protection (actively protects load)

Logic level input

Note:
The tab is connected to the source pin and must
be electrically isolated from the drain pin.
Connection of significant copper to the drain pin
is recommended for best thermal performance.

Device

Reel size

(inches)

Tape width

(mm)

Quantity per reel

BSP75NTA

7

12mm embossed

1000

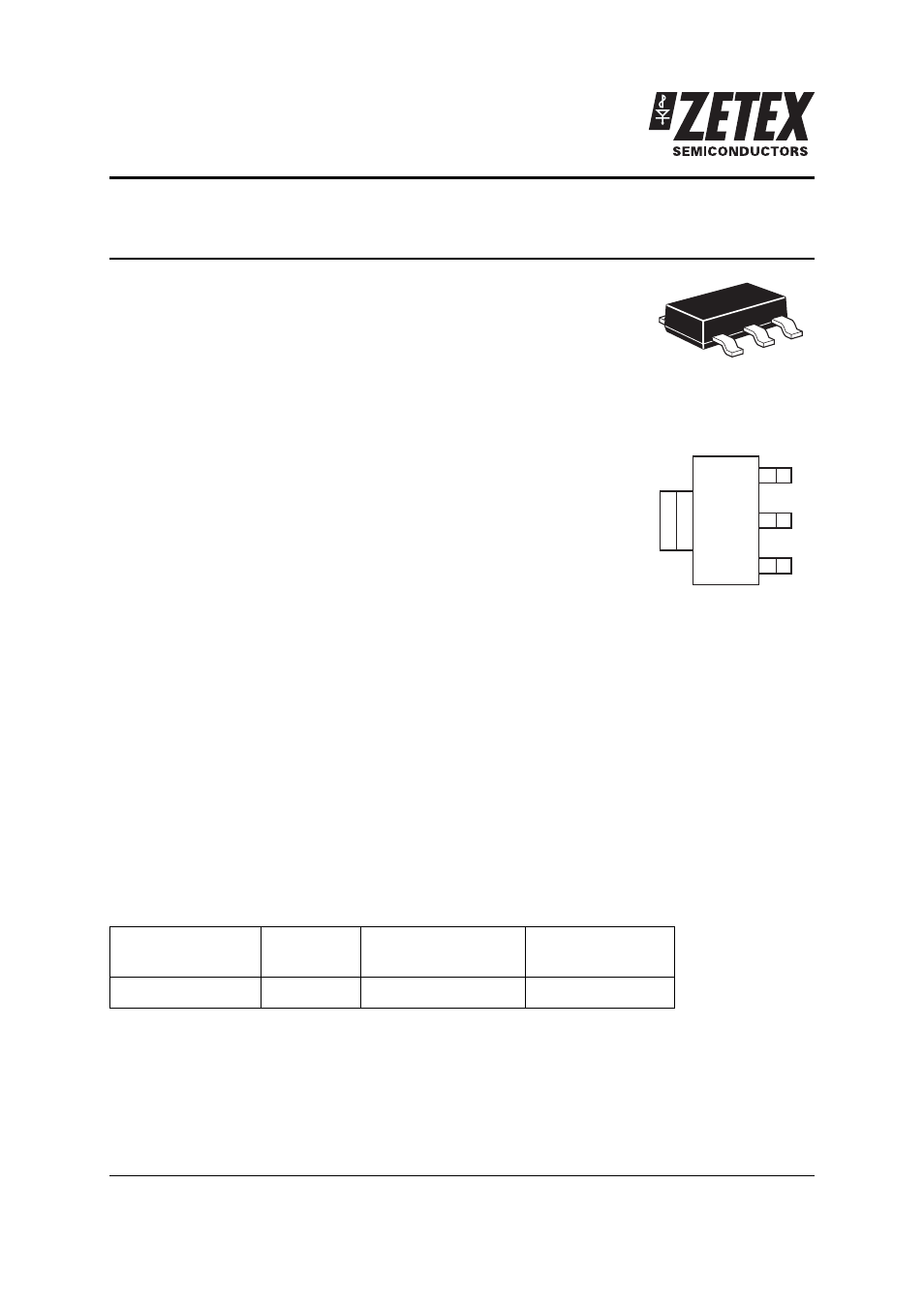

SOT223

S

S

D

IN
