BSS123W
Document number: DS30368 Rev. 11 - 2
4 of 5
www.diodes.com
October 2013
© Diodes Incorporated
BSS123W

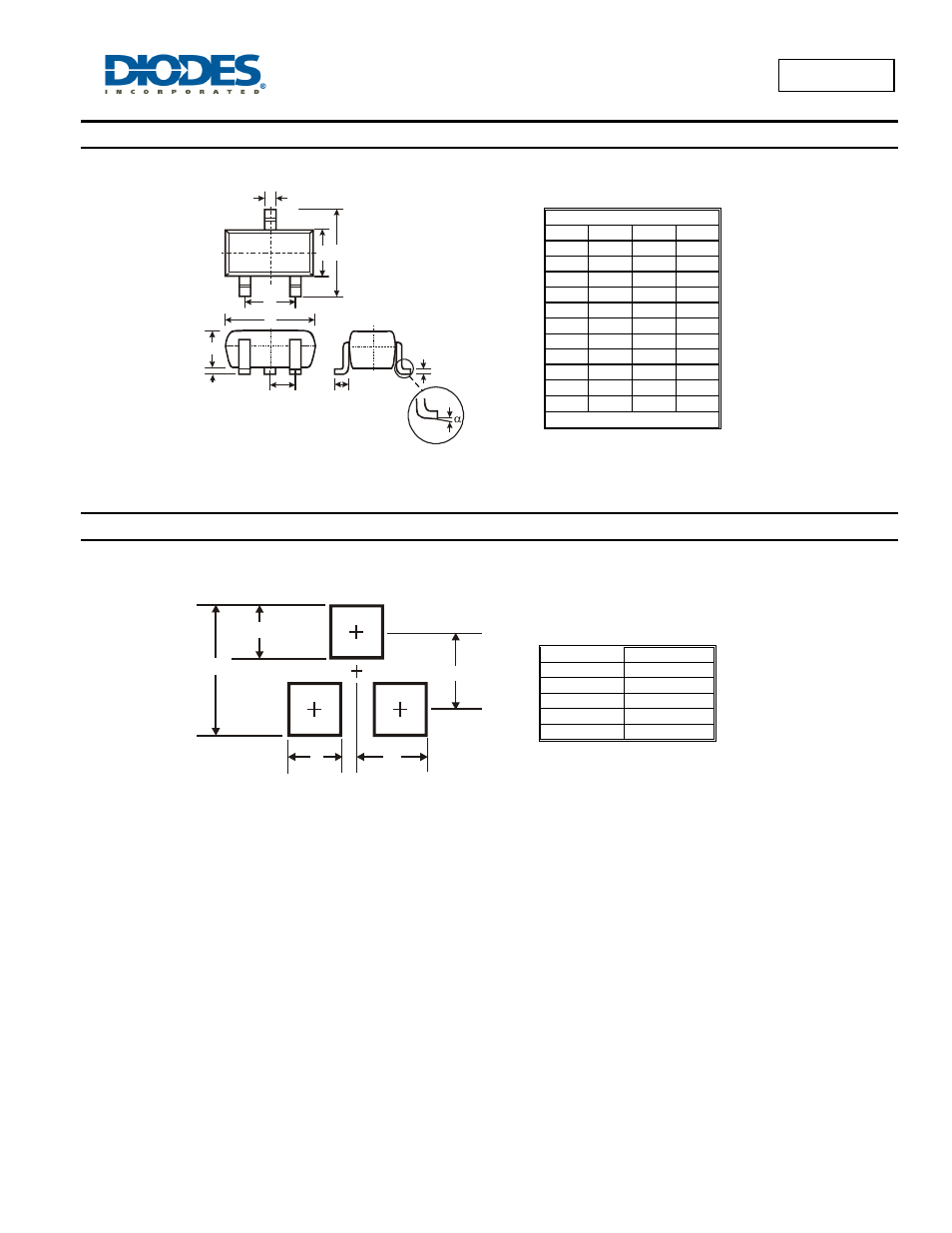

Package Outline Dimensions
Please see AP02002 at http://www.diodes.com/datasheets/ap02002.pdf for latest version.
Suggested Pad Layout
Please see AP02001 at http://www.diodes.com/datasheets/ap02001.pdf for latest version.
SOT323
Dim Min Max Typ
A 0.25 0.40 0.30
B 1.15 1.35 1.30
C 2.00 2.20 2.10
D - - 0.65
G 1.20 1.40 1.30
H 1.80 2.20 2.15
J 0.0 0.10 0.05
K 0.90 1.00 0.95
L 0.25 0.40 0.30
M 0.10 0.18 0.11
 0° 8° -
All Dimensions in mm
Dimensions Value (in mm)
Z 2.8
X 0.7
Y 0.9
C 1.9
E 1.0
A
M
J
L D
B C
H
K
G
X E
Y
C
Z
