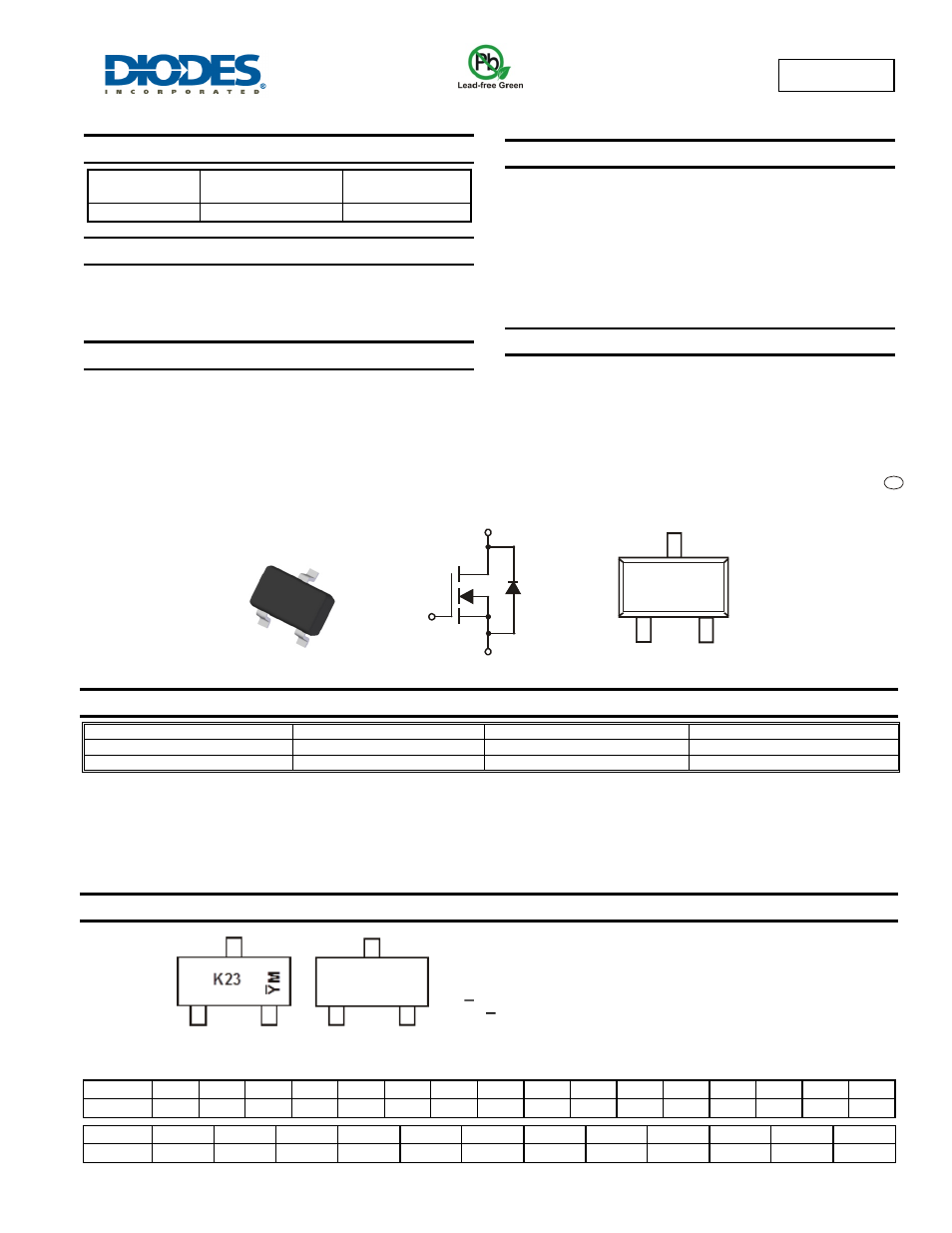

BSS123W


N-CHANNEL ENHANCEMENT MODE MOSFET

Product Summary

V

(BR)DSS

R

DS(ON)

I

D

T

A

= +25°C

100V

6.0Ω @ V

GS

= 10V

170mA

Description

This MOSFET has been designed to minimize the on-state
resistance (R

DS(ON)

)

and yet maintain superior switching performance,

making it ideal for high efficiency power management applications.

Applications

Small Servo Motor Control

Power MOSFET Gate Drivers

Switching Applications

Features

Low Gate Threshold Voltage

Low Input Capacitance

Fast Switching Speed

Low Input/Output Leakage

High Drain-Source Voltage Rating

Totally Lead-Free & Fully RoHS compliant (Notes 1 & 2)

Halogen and Antimony Free. “Green” Device (Note 3)

Qualified to AEC-Q101 Standards for High Reliability

Mechanical Data

 Case:

SOT323

Case Material: Molded Plastic, "Green" Molding Compound, UL
Flammability Classification Rating 94V-0

Moisture Sensitivity: Level 1 per J-STD-020

Terminal Connections: See Diagram

Terminals: Matte Tin Finish annealed over Alloy 42 Leadframe
(Lead Free Plating). Solderable per MIL-STD-202, Method 208

Weight: 0.006 grams (approximate)











Ordering Information

(Notes 4 & 5)

Part Number

Compliance Case

Packaging

BSS123W-7-F

Standard

SOT323

3000/Tape & Reel

BSS123WQ-7-F

Automotive

SOT323

3000/Tape & Reel

Notes:

1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.

2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"

and Lead-free.

3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and

<1000ppm antimony compounds.

4. For packaging details, go to our website at http://www.diodes.com/products/packages.html
5. Automotive products are AEC-Q101 qualified and are PPAP capable. Automotive, AEC-Q101 and standard products are electrically and thermally the

same, except where specified. For more information, please refer to http://www.diodes.com/quality/product_grade_definitions/.

Marking Information











Date Code Key

Year

2002

2003

2004

2005

2006

2007

2008

2009

2010

2011

2012

2013

2014

2015

2016

2017

Code

N

P

R

S

T

U

V

W

X

Y

Z

A

B

C

D

E

Month

Jan

Feb

Mar

Apr

May

Jun

Jul

Aug

Sep

Oct

Nov

Dec

Code

1 2 3 4 5 6 7 8 9 O N D

SOT323

Top View

Equivalent Circuit

Top View

G

S

D

K23

YM

Chengdu A/T Site

Shanghai A/T Site

K23 = Product Type Marking Code
YM = Date Code Marking for SAT (Shanghai Assembly/ Test site)
YM = Date Code Marking for CAT (Chengdu Assembly/ Test site)
Y or Y = Year (ex: A = 2013)
M = Month (ex: 9 = September)

Source

Gate

Drain

e3
