2DB1132P/Q/R
Package Outline Dimensions
Please see AP02002 at http://www.diodes.com/datasheets/ap02002.pdf for latest version.
T = -55°C
A
T = 25°C
A
T = 85°C
A
T = 150°C
A
I /I = 10
C B
0
20
40
30
10
-I , EMITTER CURRENT
E

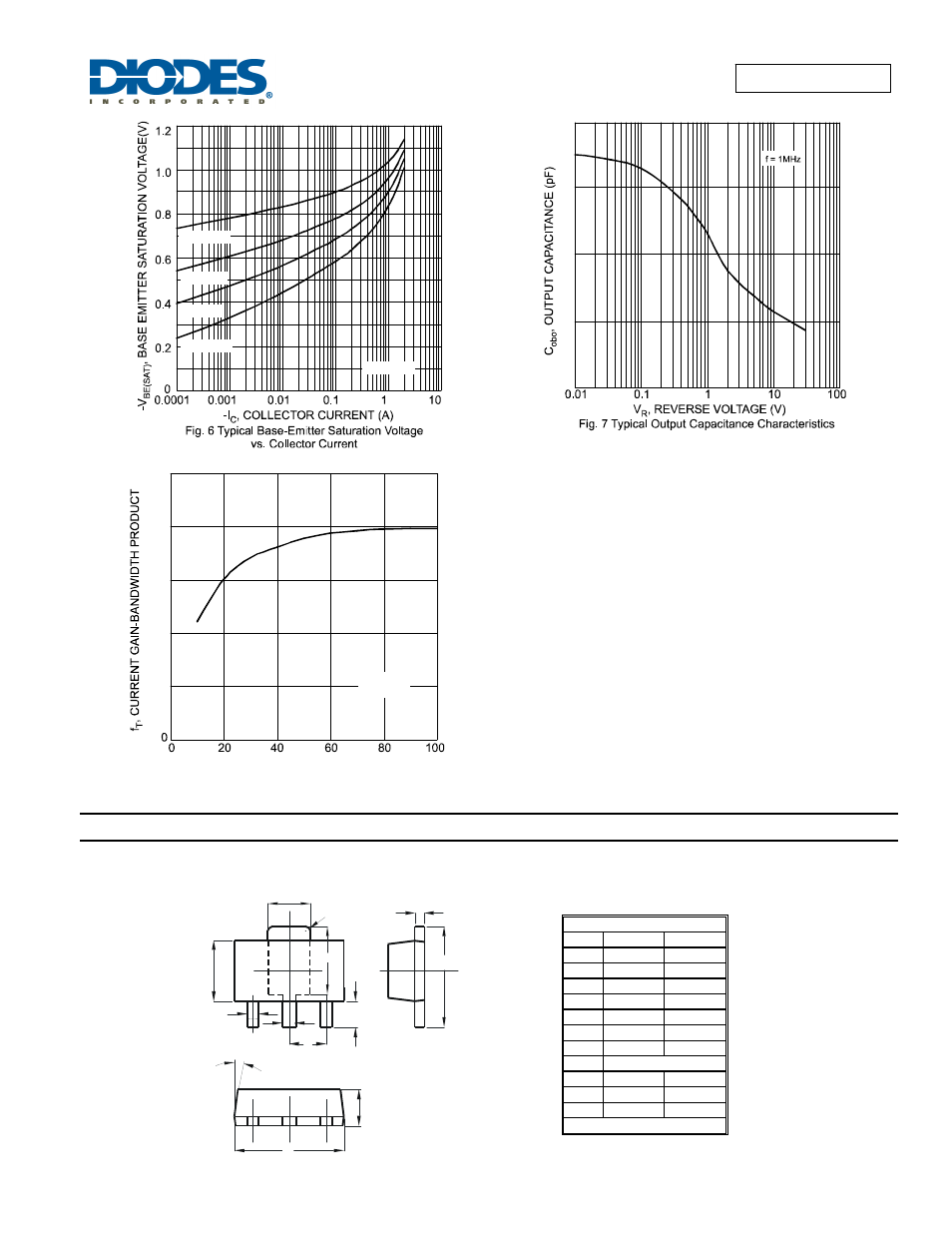

Fig. 8 Typical Gain-Bandwidth Product vs. Emitter Current
50
100
150
200
250
V = -5V
f = 30MHz
CE
SOT89
Dim Min Max
A 1.40 1.60
B 0.44 0.62
B1 0.35 0.54
C 0.35 0.44
D 4.40 4.60
D1 1.62 1.83
E 2.29 2.60
e 1.50 Typ
H 3.94 4.25
H1 2.63 2.93
L 0.89 1.20
All Dimensions in mm
