2DB1132P/Q/R
Document number: DS31142 Rev: 6 - 2
1 of 6
www.diodes.com
December 2013
© Diodes Incorporated
2DB1132P/Q/R
32V PNP POWER SWITCHING TRANSISTOR IN SOT-89
Features
 BV
CEO
> -32V
 I
C
= -1A high Continuous Collector Current
 Complementary NPN Type: 2DD1664
 Ideally Suited for Automated Assembly Processes
 Ideal for Medium Power Switching or Amplification Applications
 Totally Lead-Free & Fully RoHS compliant (Notes 1 & 2)
 Halogen and Antimony Free. “Green” Device (Note 3)
 Qualified to AEC-Q101 Standards for High Reliability
Mechanical Data
 Case: SOT89
 Case material: molded Plastic. “Green” molding Compound.
UL Flammability Rating 94V-0
 Moisture Sensitivity: Level 1 per J-STD-020
 Terminals: Finish - Matte Tin Plated Leads, Solderable per
MIL-STD-202, Method 208
 Weight: 0.055 grams (Approximate)
Ordering Information
(Note 4)
Product Marking Reel size (inches) Tape width (mm) Quantity per reel
2DB1132P-13 P13P 13 12 2,500
2DB1132Q-13 P13Q 13 12 2,500
2DB1132R-13 P13R 13 12 2,500
2DB1132R-13R P13R 13 12 4,000
Notes: 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen and Antimony free,"Green"
and Lead-Free.
3. Halogen and Antimony free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at http://www.diodes.com/products/packages.html

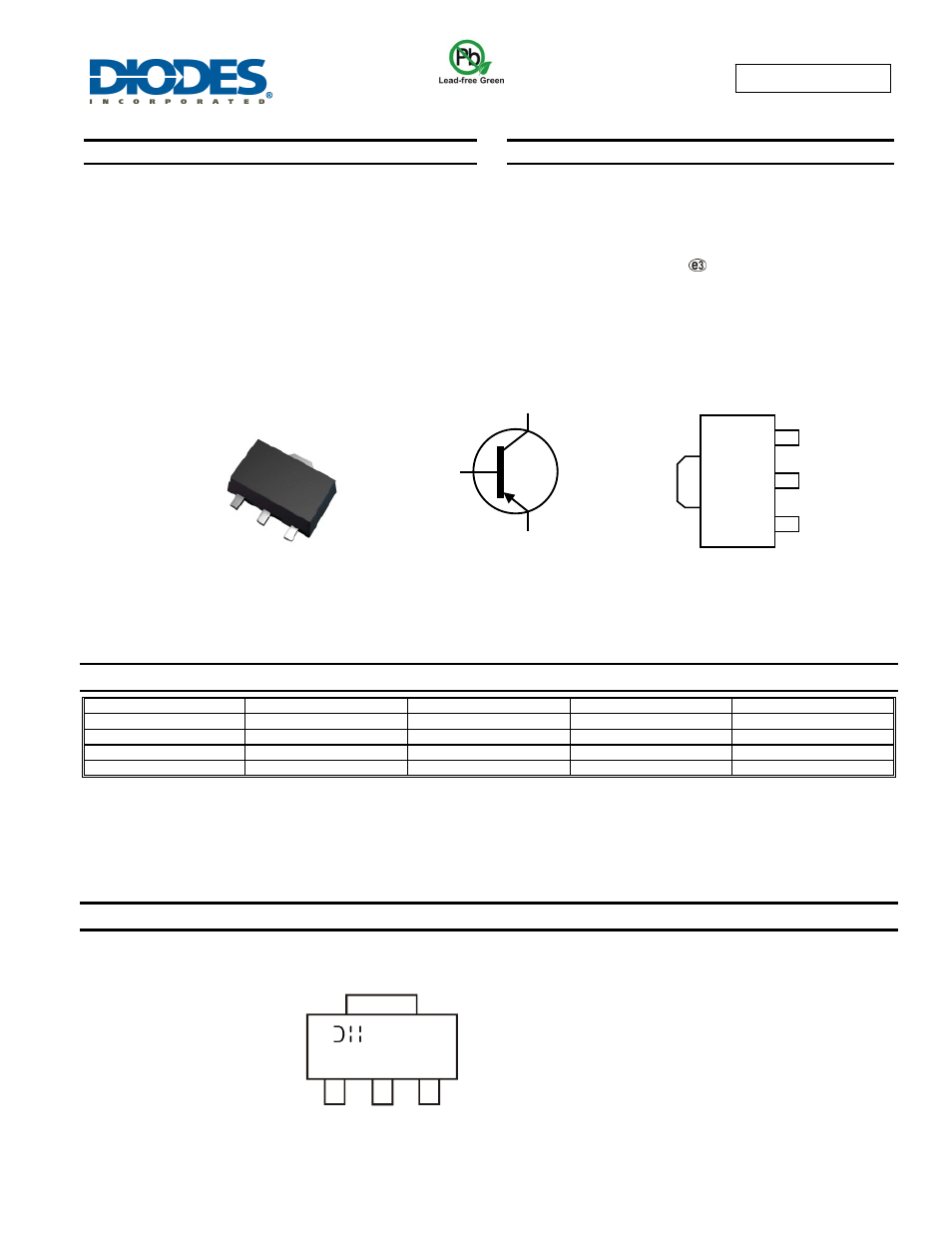

Marking Information
Top View
Device Symbol
Pin Out
Top View
SOT89
P13x
YWW
(Top View)
P13x = Product Type Marking Code:
Where P13P = 2DB1132P
P13Q = 2DB1132Q
P13R = 2DB1132R
YWW = Date Code Marking
Y = Last digit of year ex: 7 = 2007
WW = Week code 01 - 52
C
E
B
C
E
C
B
