TLV431
Document number: DS32088 Rev. 6 - 2
12 of 14
October 2012
© Diodes Incorporated
TLV431
A Product Line of
Diodes Incorporated

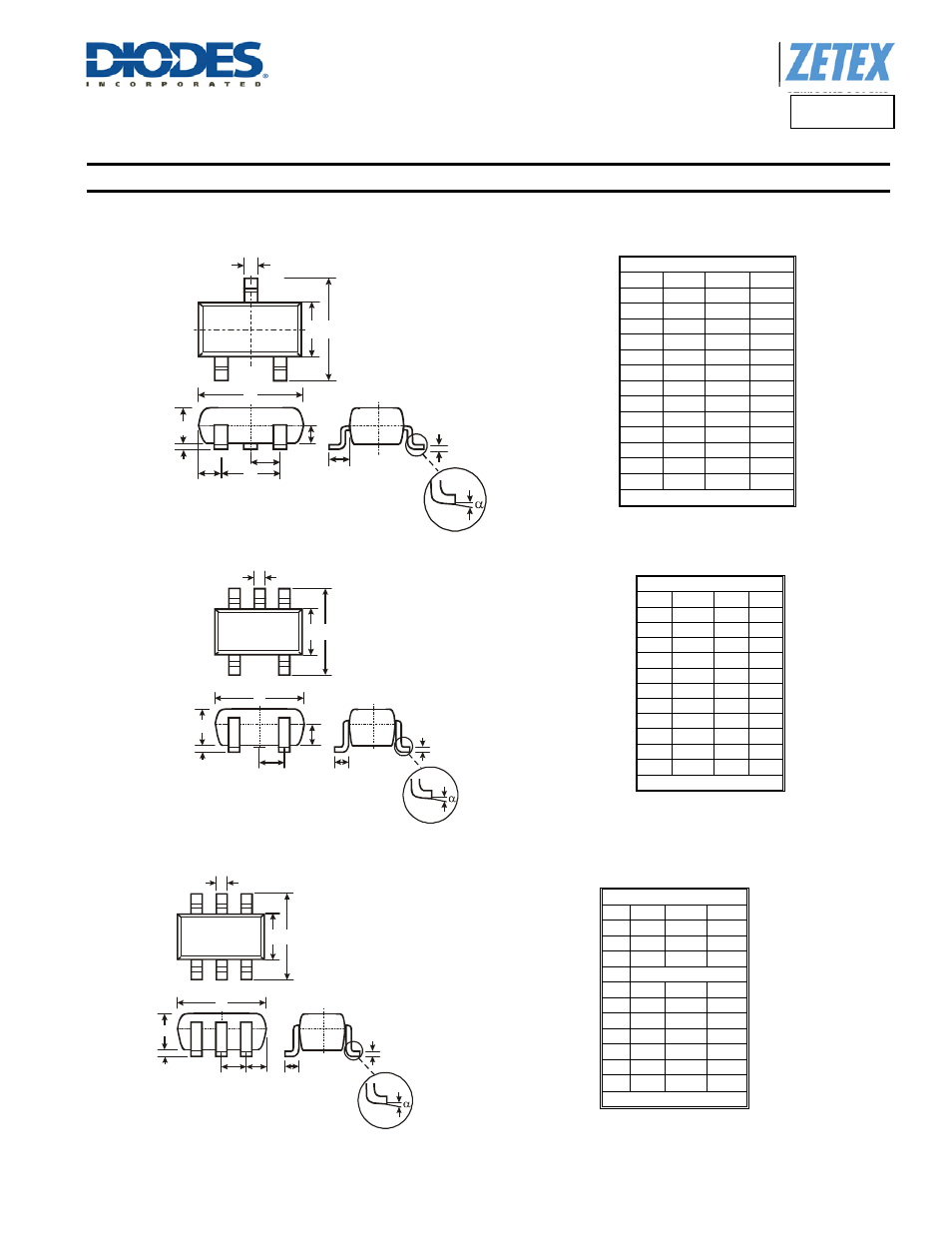

Package Outline Dimensions
(All dimensions in mm.)
rsion.
SOT23
SOT25
SC70-6 (SOT363)
SOT23
Dim Min Max Typ
A
0.37 0.51 0.40
B
1.20 1.40 1.30
C
2.30 2.50 2.40
D
0.89 1.03 0.915
F
0.45 0.60 0.535
G
1.78 2.05 1.83
H
2.80 3.00 2.90
J
0.013 0.10 0.05
K
0.903 1.10 1.00
K1
— —
0.400
L
0.45 0.61 0.55
M
0.085 0.18 0.11
α
0° 8° —
All Dimensions in mm
SOT25
Dim
Min Max Typ
A
0.35 0.50 0.38
B
1.50 1.70 1.60
C
2.70 3.00 2.80
D
⎯
⎯ 0.95
H
2.90 3.10 3.00
J
0.013 0.10 0.05
K
1.00 1.30 1.10
L
0.35 0.55 0.40
M
0.10 0.20 0.15
N
0.70 0.80 0.75
α
0° 8°
⎯
All Dimensions in mm
SC70-6 (SOT363)
Dim Min
Max
Typ
A
0.10
0.30
0.25
B
1.15
1.35
1.30
C
2.00
2.20
2.10
D
0.65 Typ
F
0.40
0.45 0.425
H
1.80
2.20
2.15
J
0
0.10
0.05
K
0.90
1.00
1.00
L
0.25
0.40
0.30
M
0.10
0.22
0.11
α
0° 8° -
All Dimensions in mm
A
M
J
L
D
F
B C
H
K
G
K1
A
M
J
L
D
B C
H
K
N
A
M
J
L
D
B C
H
K
F
